FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 3GR-FSE): Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
   NOTE: If brake fluid leaks onto any painted surface, wash or otherwise remove it completely
3. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY
   1. Remove the union bolt and gasket from the disc brake cylinder assembly, then disconnect the flexible hose.

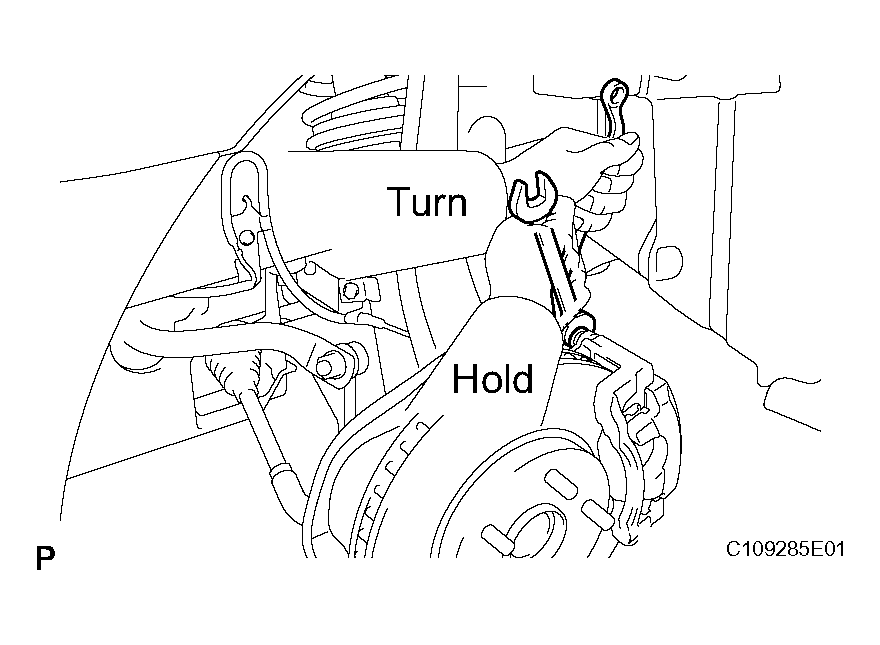

      Fig 1: Identifying Union Bolt And Gasket From Disc Brake Cylinder Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and disc brake cylinder assembly.
      Fig 2: Identifying Bolts And Disc Brake Cylinder Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
