Hood Lock Control Cable Assembly: Installation

HINT:

A bolt without a torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
   1. Pass the cable into the engine room.
   2. Pass the cable rear side through the grommet until the cable stopper is attached to the grommet.
   3. Pass the cable front side through the upper radiator support.

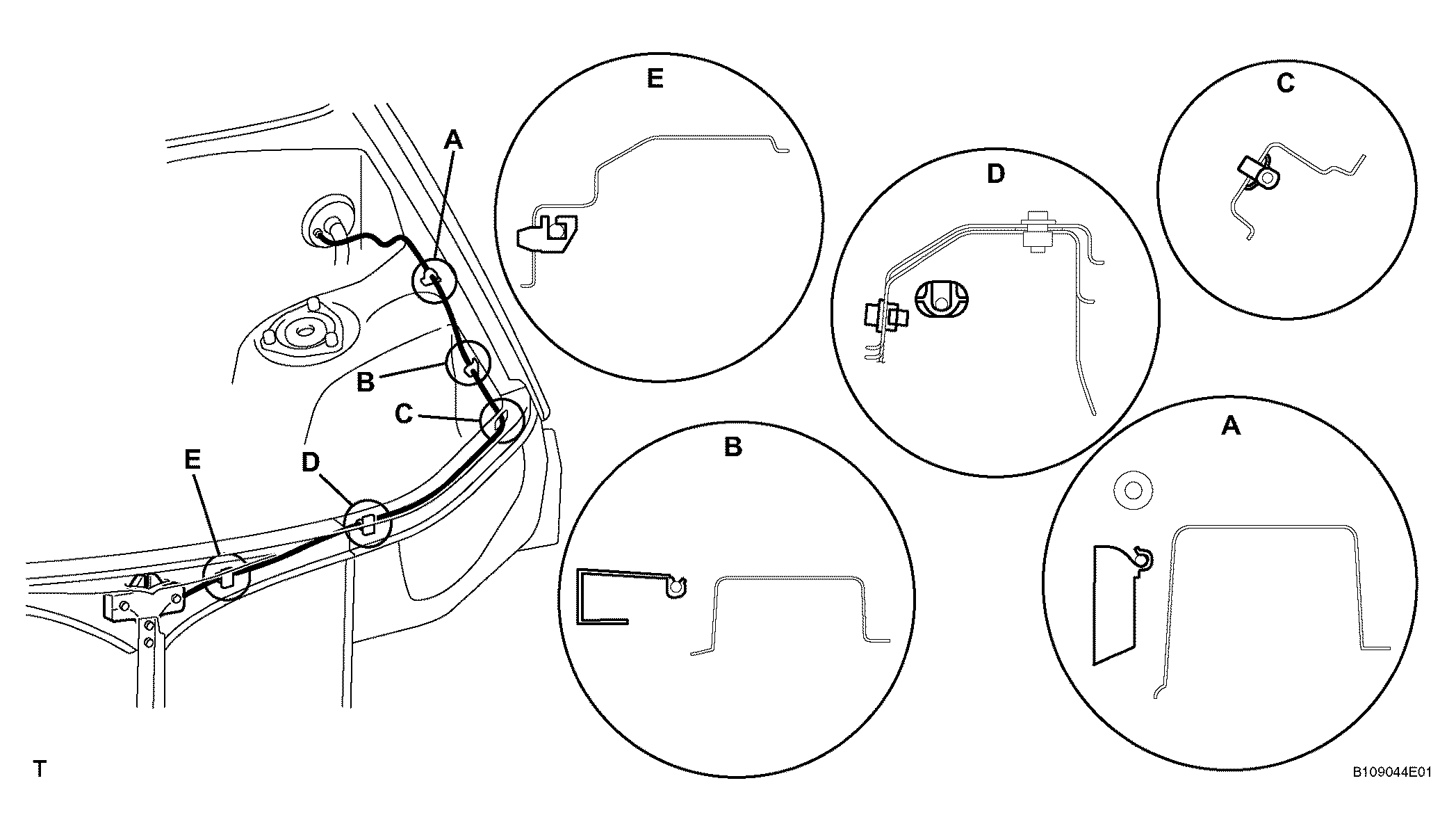

   4. Connect the clamps as shown in the illustration.
      Fig 1: Identifying Hood Lock Control Cable Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 2: Identifying Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

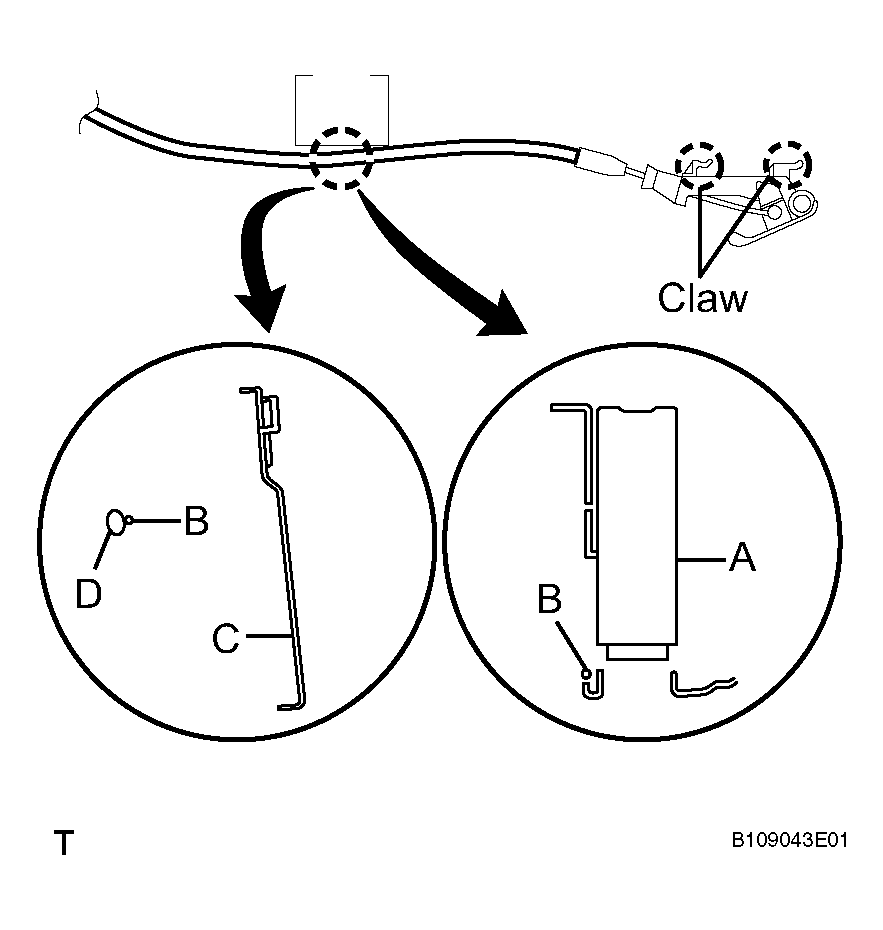

2. INSTALL HOOD LOCK CONTROL LEVER SUBASSEMBLY
   STANDARD CLEARANCE CHART



   Area	Part Name
   A	Junction block
   B	Hood lock control cable
   C	Parking brake pedal
   D	Parking brake cable

   1. Install the hood lock lever and connect the hood lock control cable.
   2. Attach the 2 claws.
      Fig 3: Identifying Hood Lock Control Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL HOOD LOCK ASSEMBLY

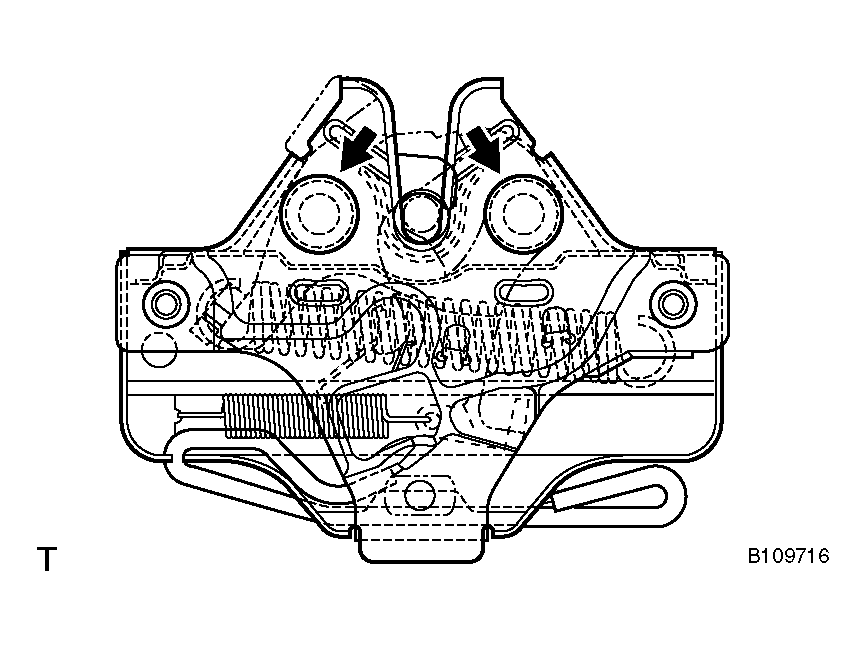

   1. Apply MP grease to the sliding areas of the lock.
      Fig 4: Applying MP Grease To Sliding Areas Of Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the hood lock
   3. Install the 2 bolts and nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   4. Install a new cap.
   5. Connect the hood lock control cable.
      Fig 5: Identifying Hood Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT FENDER PROTECTOR UPPER LH
   1. Attach the 3 clips to install the protector.
      Fig 6: Attaching 3 Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

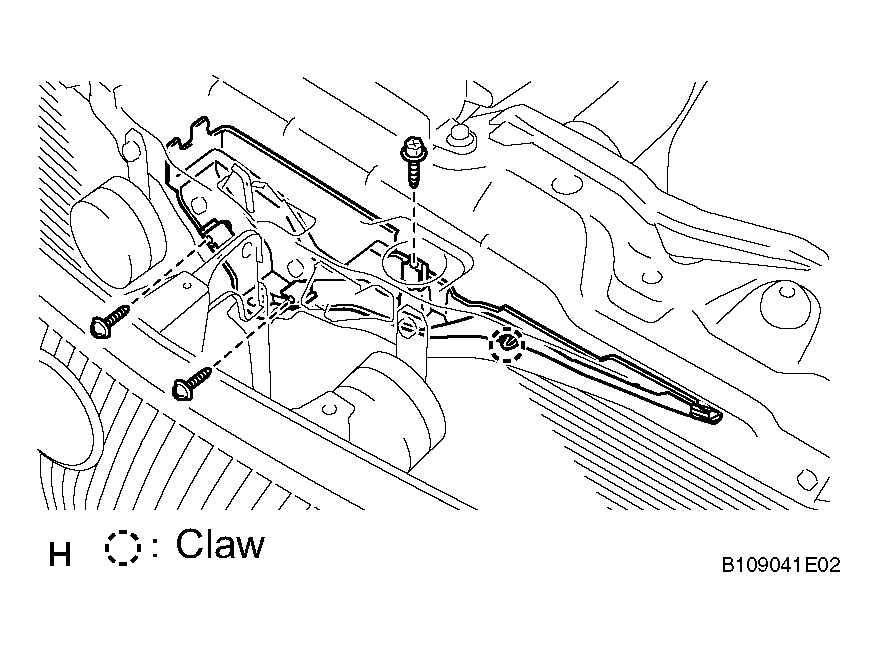

5. INSTALL HOOD LOCK CONTROL CABLE COVER
   1. Attach the claw and install cable cover.
   2. Install the 3 screws.
6. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Cruise Control System) (See  MILLIMETER WAVE RADAR SENSOR POWER SOURCE CIRCUIT  )
7. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
8. INSTALL FRONT FENDER LINER RH (See  INSTALLATION  )
9. INSTALL FRONT FENDER LINER LH (See  INSTALLATION  )
   Fig 7: Identifying 3 Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
11. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
12. INSTALL ENGINE ROOM SIDE COVER LH (See  EVAP SYSTEM  )
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
15. CHECK SRS WARNING LIGHT
    1. Check SRS warning light (see DIAGNOSIS SYSTEM ).
