3GR-FSE COMPRESSOR AND PULLEY (for 4WD): Installation

  1. ADJUST COMPRESSOR OIL
    1. When replacing the compressor with a new one, after gradually discharging the refrigerant gas from the service valve, drain the following volume of oil from the new compressor before installation.

      Standard:

      (Oil capacity inside a new compressor: 130 + 15 cc (4.6 + 0.51 fl.oz.)) - (Remaining oil amount in the removed compressor) = (Oil amount to be removed from the new compressor when replacing it.

      NOTE:
      • When checking the compressor oil level, observe the precautions in the cooler removal/installation.
      • If a new compressor is installed without removing some oil remaining in the pipes of the vehicle, the oil amount becomes excessive. This prevents heat exchange in the refrigerant cycle and causes refrigerant failure.
      • If the volume of oil remaining in the removed compressor and magnetic clutch is too small, check for oil leakage.
      • Be sure to use ND-OIL 8 for compressor oil.
  2. INSTALL COMPRESSOR ASSEMBLY
    1. Using an E8 "torx" socket, install the compressor with the stud bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

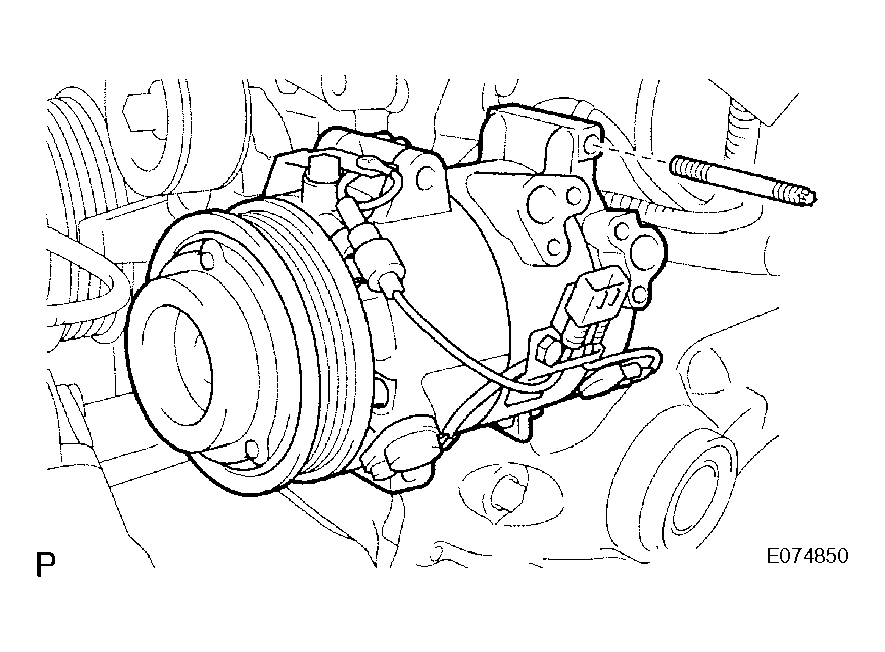

      Fig 1: Identifying Compressor With Stud Bolt
      G04020810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the compressor with the 2 bolts and nut.

      HINT:

      Temporarily install the bolts and nut.

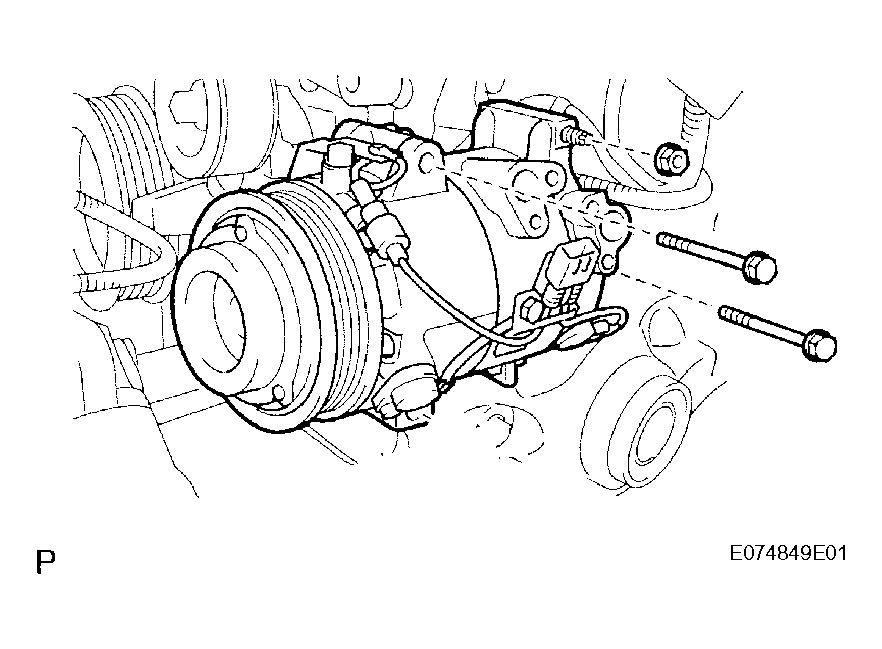

      Fig 2: Identifying Compressor With Bolts And Nut
      G04020811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL OIL FILTER BRACKET SUB-ASSEMBLY
    1. Install a new oil filter bracket gasket and the oil filter bracket with the 2 nuts and bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

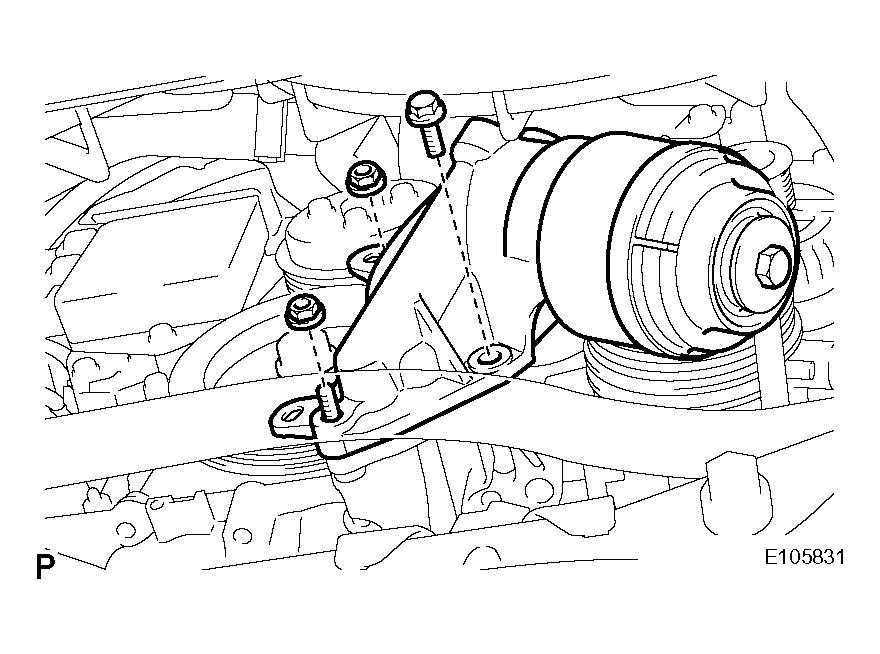

      Fig 3: Identifying Oil Filter Bracket Gasket And Oil Filter Bracket With Nuts And Bolt
      G04020812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the wire harness to connect the connector and attach the 2 clamps.

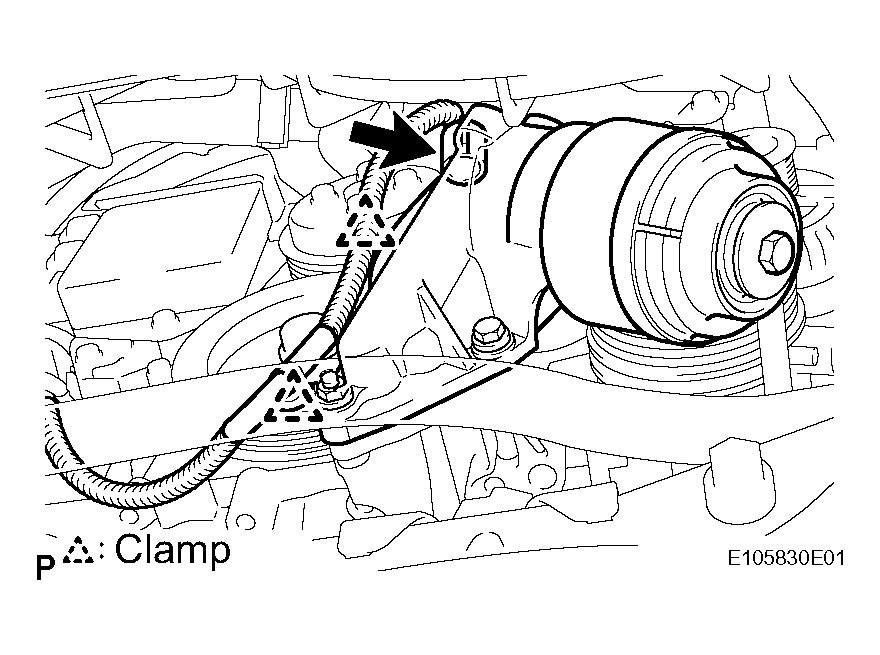

      Fig 4: Attaching Clamps
      G04020813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL OIL FILTER BRACKET
    1. Install the oil filter bracket with the bolt and nut.

      Torque: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

      HINT:

      Temporarily install the bolt.

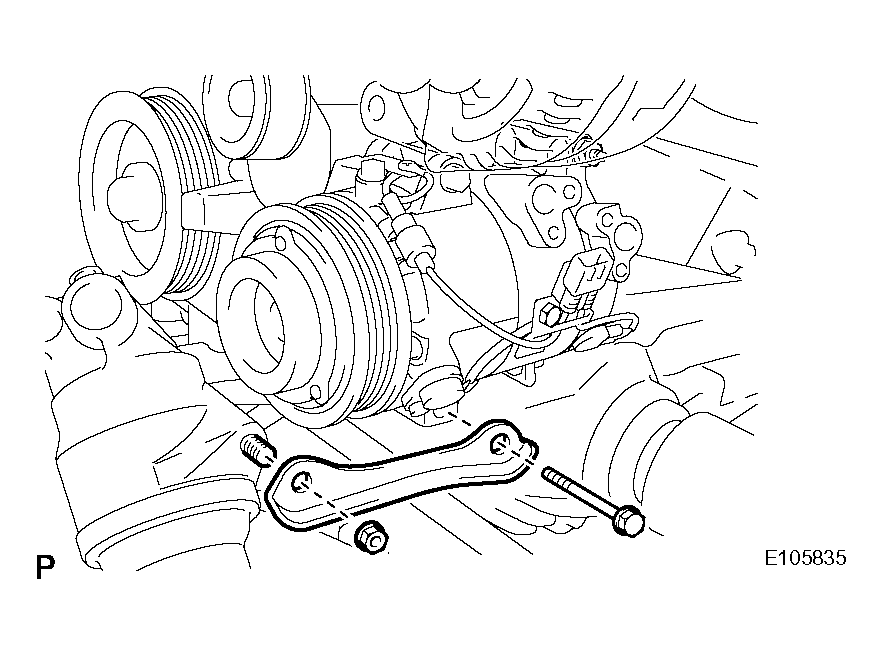

      Fig 5: Identifying Oil Filter Bracket With Bolt And Nut
      G04020814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. TIGHTEN COMPRESSOR ASSEMBLY
    1. Install the compressor with the bolts and nut.

      Torque: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

      NOTE: Tighten the bolts in the order shown in the illustration to install the compressor.

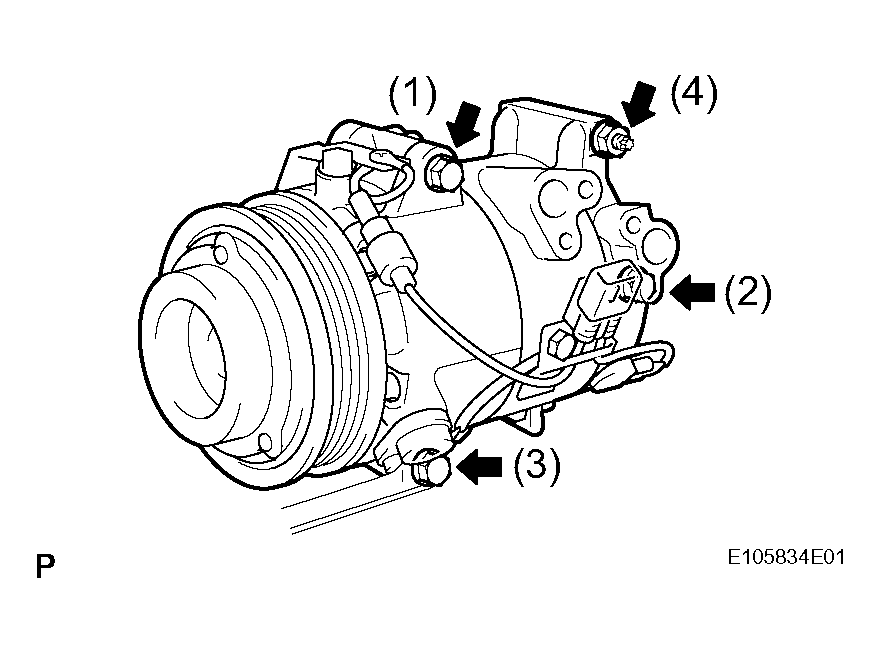

      Fig 6: Identifying Compressor With Bolts And Nut
      G04020815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the attached vinyl tape from the discharge hose.
    2. Apply sufficient compressor oil (ND-OIL 8) to a new O-ring and the fitting surface of the compressor.

      Compressor oil:

      ND-OIL 8 or equivalent

    3. Install the O-ring on the discharge hose.
    4. Install the discharge hose on the compressor with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 7 in.*lbf)

      Fig 7: Identifying Discharge Hose On Compressor With Bolt
      G04020816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE
    1. Remove the attached vinyl tape from the suction hose.
    2. Apply sufficient compressor oil (ND-OIL 8) to a new O-ring and the fitting surface of the compressor.

      Compressor oil:

      ND-OIL 8 or equivalent

    3. Install the O-ring on the suction hose.
    4. Install the suction hose on the compressor with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 7 in.*lbf)

      Fig 8: Identifying Suction Hose On Compressor With Bolt
      G04020817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
  9. INSTALL FAN AND GENERATOR V BELT (See  INSTALLATION  )
  10. INSTALL V-BANK COVER (See  INSTALLATION  )
  11. INSTALL NO. 1 AIR CLEANER INLET (See  INSTALLATION  )
  12. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  14. CHARGE REFRIGERANT (See  REPLACEMENT   )
  15. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  16. WARM UP ENGINE (See  REPLACEMENT   )
  17. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT   )
  18. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
