FRONT SPEED SENSOR (for 2WD): Installation

INSTALL SPEED SENSOR FRONT LH
1. Wipe off sealant attached to the skid control sensor's fitting surface with white gasoline.
  NOTE: Prevent foreign matter from attaching to the sensor rotor.
2. Install a new skid control sensor to the hub and bearing assembly. The skid control sensor connector should be placed in the upper position.

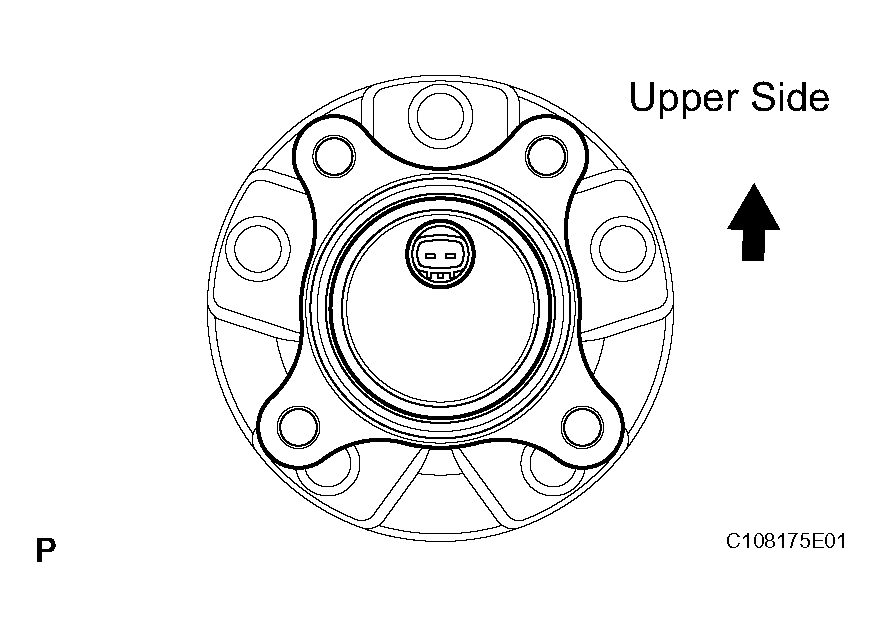

  Fig 1: Identifying Skid Control Sensor To Hub And Bearing Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Press the skid control sensor or the it becomes flat with the hub and bearing using the SST and press.
  NOTE:
  - Keep the sensor away from magnets.
  - Do not use a hammer on the skid control sensor.
  - Check that there is no foreign matter such as iron chips on the skid control sensor's detecting portion.
  - Slowly press the skid control sensor straight.

    Fig 2: Pressing Skid Control Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH (See INSTALLATION )
INSPECT FRONT AXLE HUB BEARING LOOSENESS (See ON-VEHICLE INSPECTION )
INSTALL FRONT AXLE HUB RUNOUT (See ON-VEHICLE INSPECTION )
INSTALL FRONT DISC (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH (See INSTALLATION )
CONNECT SPEED SENSOR FRONT LH
1. Connect the speed sensor connector to the speed sensor front.
  NOTE: Do not twist the sensor wire.

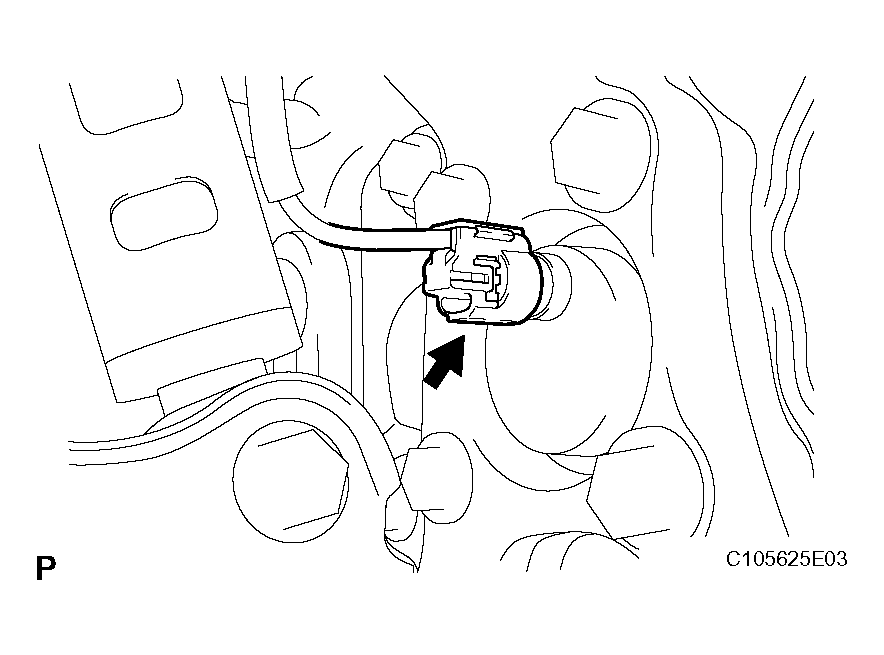

  Fig 3: Identifying Speed Sensor Connector To Speed Sensor Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
INSPECT SPEED SENSOR SIGNAL
(See TEST MODE PROCEDURE )
