BRAKE MASTER CYLINDER (w/ VSC): Installation

INSTALL BRAKE MASTER WITH PLATE CYLINDER SUB-ASSEMBLY
1. Install a new O-ring to the brake master cylinder sub-assembly.
2. Install the brake master cylinder sub-assembly to the booster assembly with the 2 nuts.
  Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

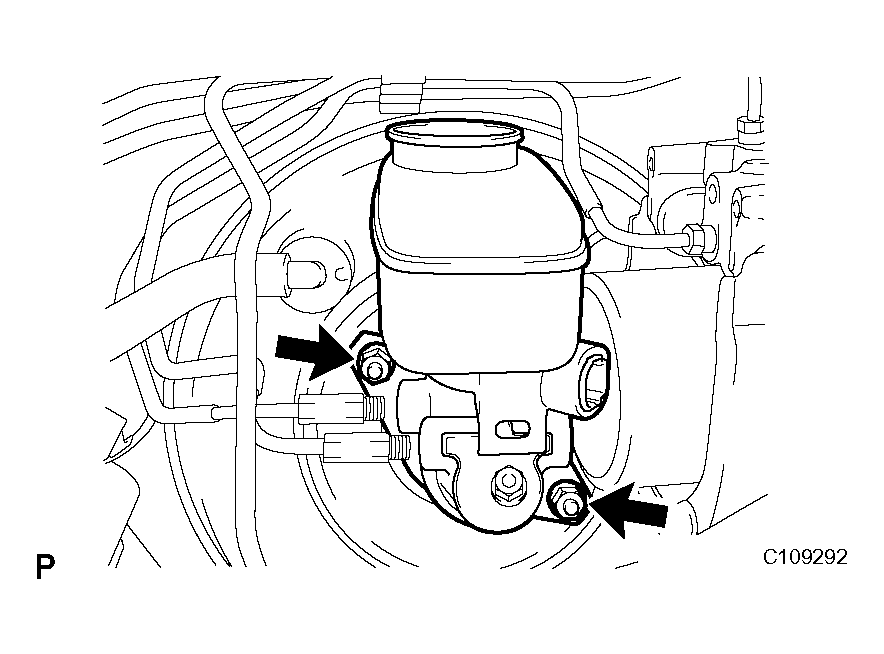

  Fig 1: Installing Brake Master Cylinder Sub-Assembly To Booster Assembly With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, connect the 2 brake tubes to the brake master cylinder sub-assembly.
  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
4. Engage the clamp and connect the warning switch connector.

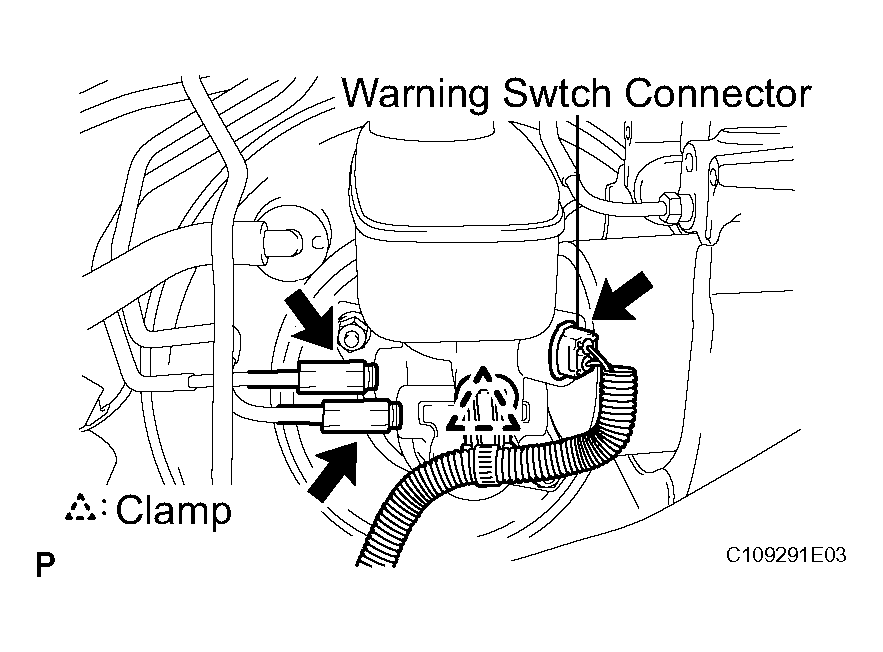

  Fig 2: Connecting Warning Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE ROOM RELAY NO.3 BLOCK
1. Install the relay block No.3 with the bolt and nut.
  Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

  Fig 3: Identifying No. 3 Engine Room Relay Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID (W/ VSC) )
BLEED MASTER CYLINDER (See BRAKE FLUID (W/ VSC) )
BLEED BRAKE LINE (See BLEEDING )
BLEED ABS AND TRACTION ACTUATOR ASSEMBLY (See BLEEDING )
INSPECT FLUID LEVEL IN RESERVOIR (See BRAKE FLUID (W/ ECB) )
INSPECT BRAKE FLUID LEAKAGE
INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See INSTALLATION )
INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See INSTALLATION )
INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY (See INSTALLATION )
INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB- ASSEMBLY RH (See INSTALLATION )
INSTALL ENGINE ROOM COVER SIDE (See )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
