Integration Control & Panel ASSY: Overhaul

HINT:

See COMPONENTS

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1 (See  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2 (See  REPLACEMENT  )
3. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  OVERHAUL  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  REPLACEMENT  )
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See  REPLACEMENT  )
6. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (W/O NAVIGATION SYSTEM) (See  RADIO RECEIVER ASSY  )
7. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (W/ NAVIGATION SYSTEM) (See  RADIO RECEIVER ASSY  )
8. REMOVE INTEGRATION CONTROL & PANEL ASSY

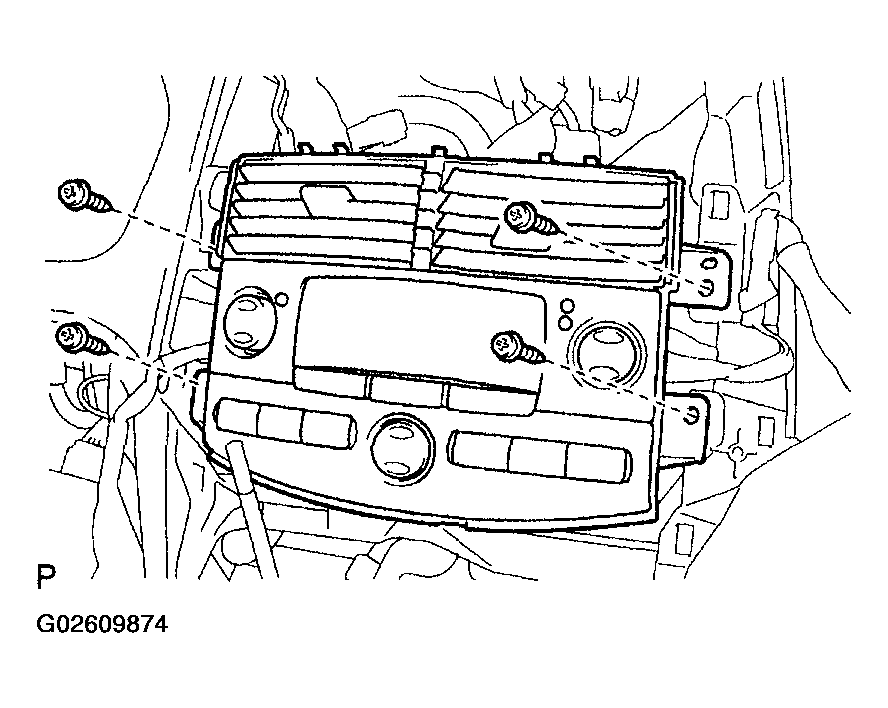

   1. Remove the 4 screws, and release the integration control & panel assy.
   2. Disconnect the connectors and remove the integration control & panel assy.
   Fig 1: Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

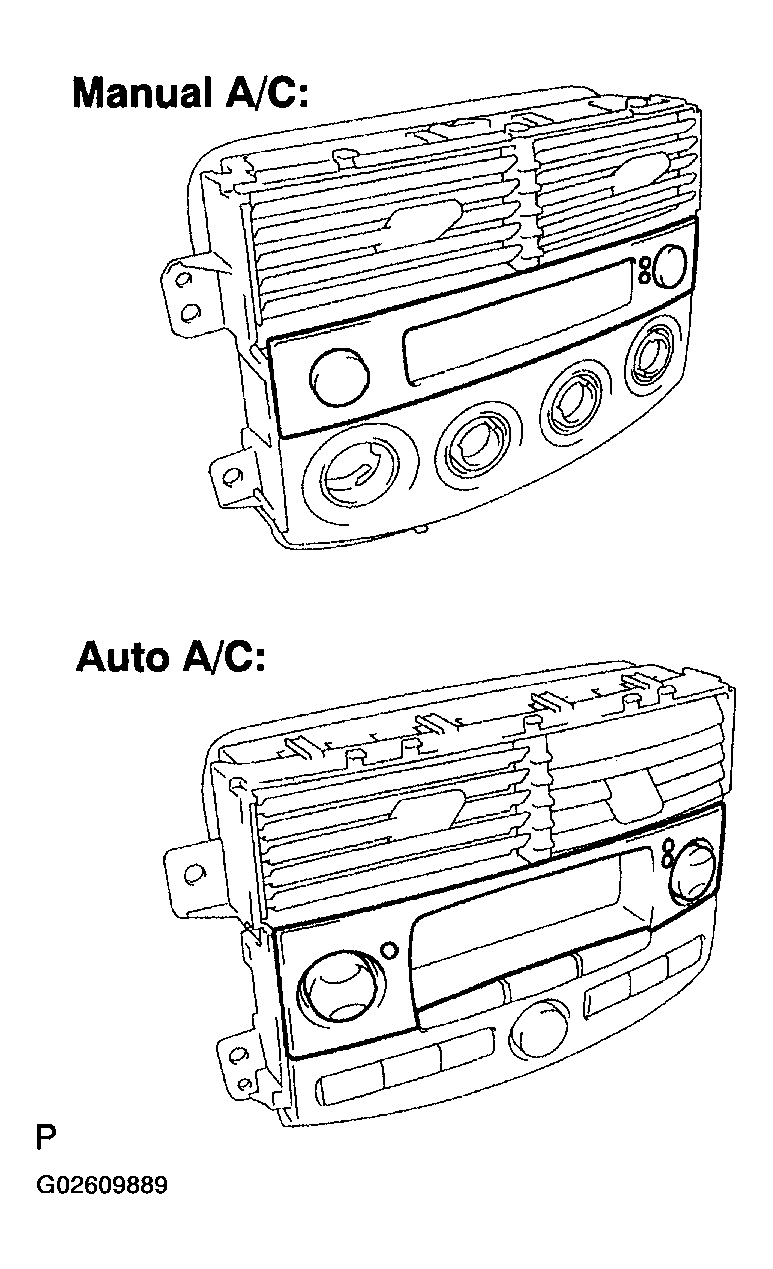

9. REMOVE CENTER CLUSTER MODULE KNOB NO. 1 (MANUAL AIR CONDITIONING)

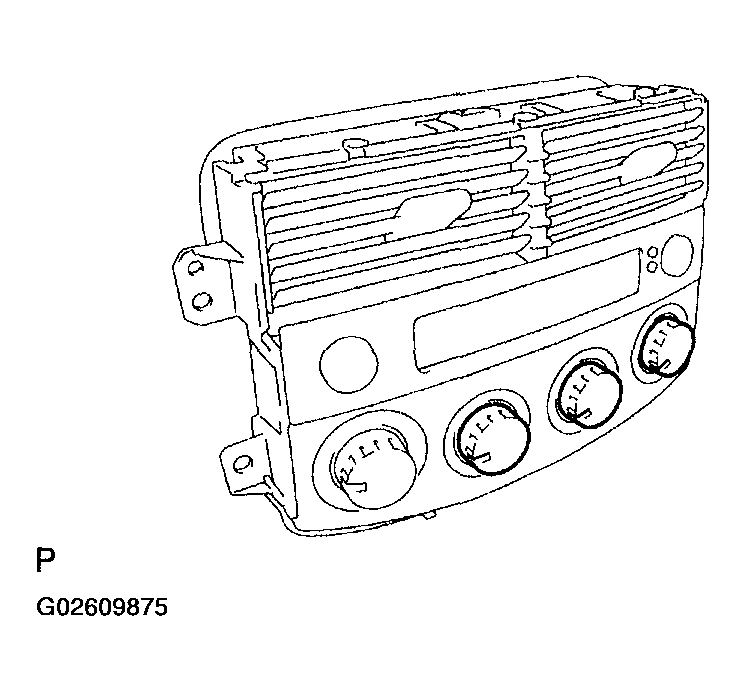

   1. Remove the center cluster module knob No. 1.
   Fig 2: Removing Center Cluster Module Knob

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE CENTER CLUSTER MODULE KNOB NO. 2 (MANUAL AIR CONDITIONING)

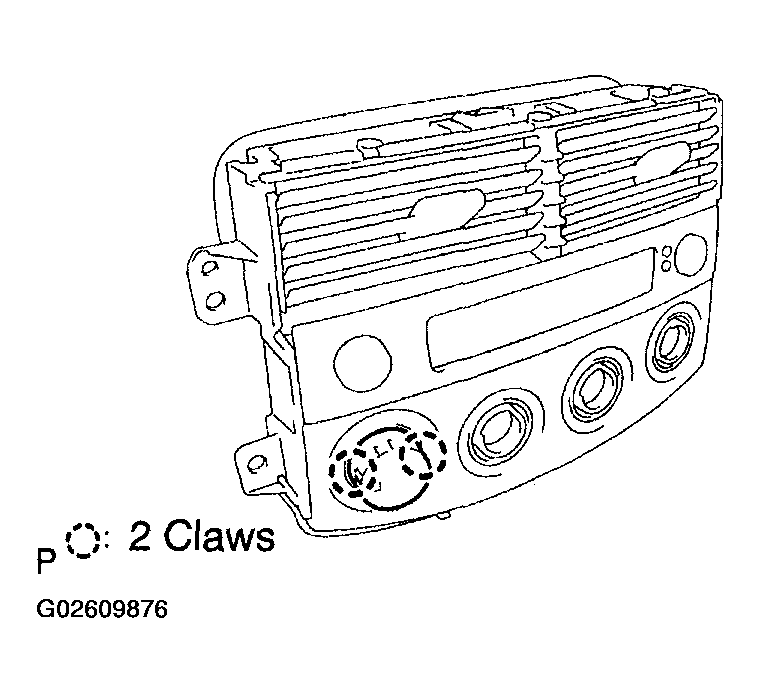

    1. Release the 2 claws fittings and remove the center cluster module knob No. 2.
    NOTE: Take care not to break the claws on the knob.
    Fig 3: Releasing Claws Fittings

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE AIR CONDITIONER AMPLIFIER ASSY (MANUAL AIR CONDITIONING)
    1. Remove the plate.
       Fig 4: Removing Plate

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

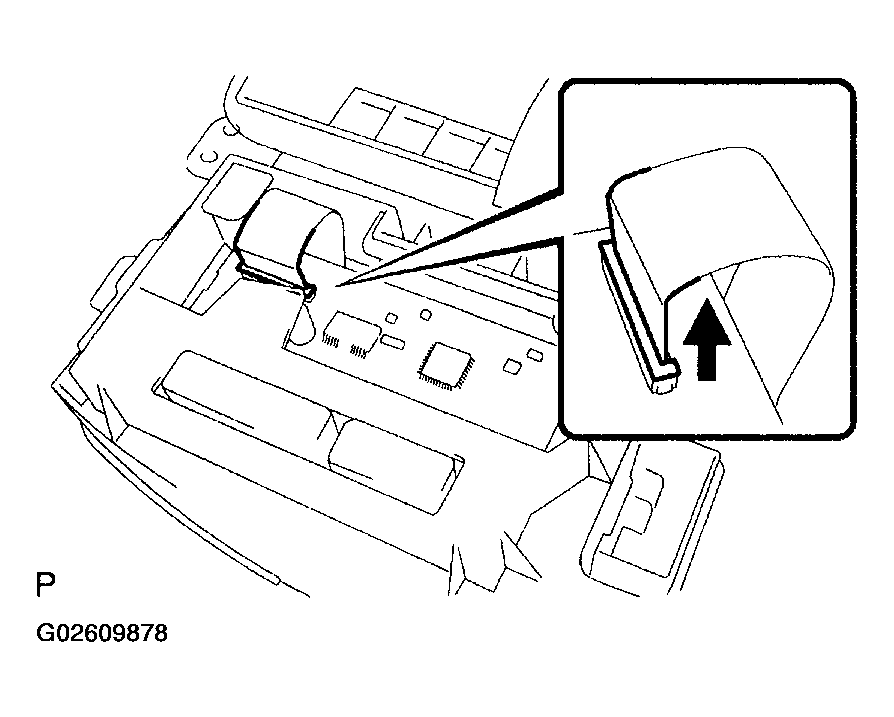

    2. Release the lock of the connector and disconnect the cable.
       Fig 5: Releasing Lock Of Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 screws, and the heater control housing.
       Fig 6: Removing Screws & Heater Control Housing

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

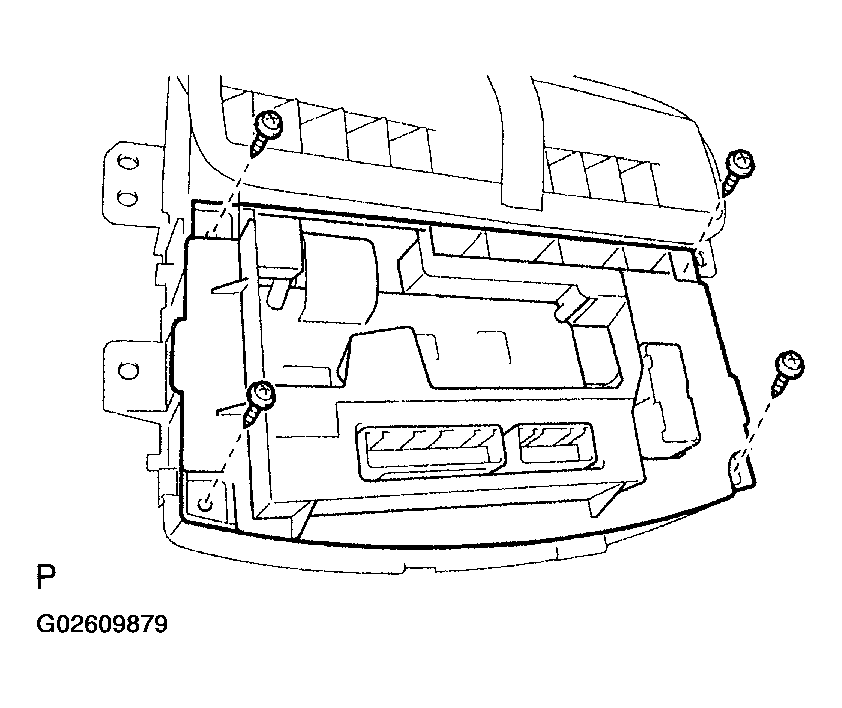

    4. Remove the 4 screws, and the air conditioner amplifier assy.
    Fig 7: Removing Screws & Air Conditioner Amplifier Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE AIR CONDITIONER AMPLIFIER ASSY (AUTO AIR CONDITIONING)

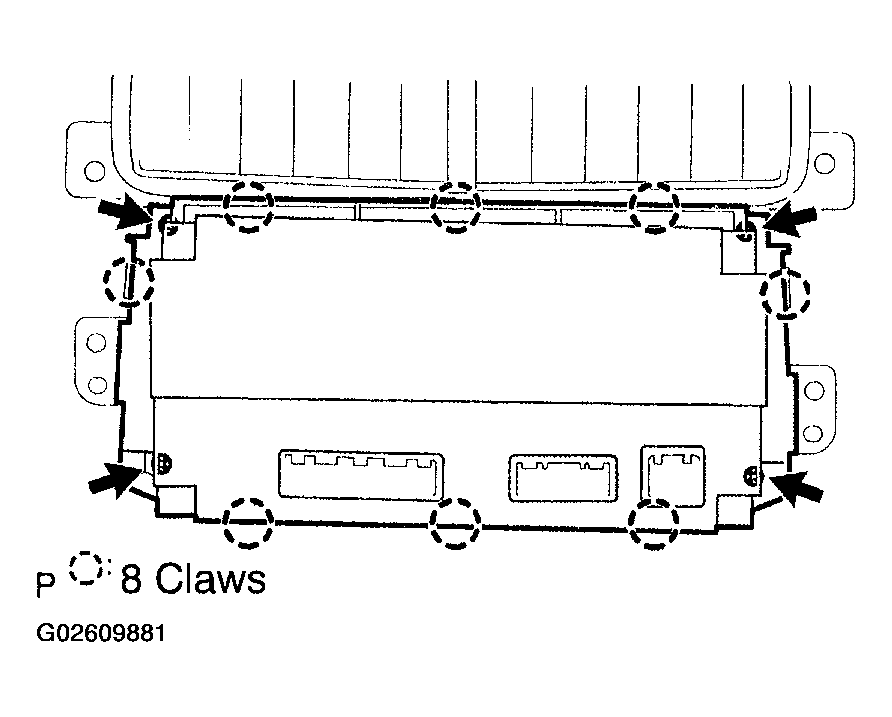

    1. Release the 8 claw fittings and remove the 4 screws and the heater control housing.
       Fig 8: Removing Screws & Heater Control Housing & Releasing Claw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
       Fig 9: Disconnecting Connectors

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

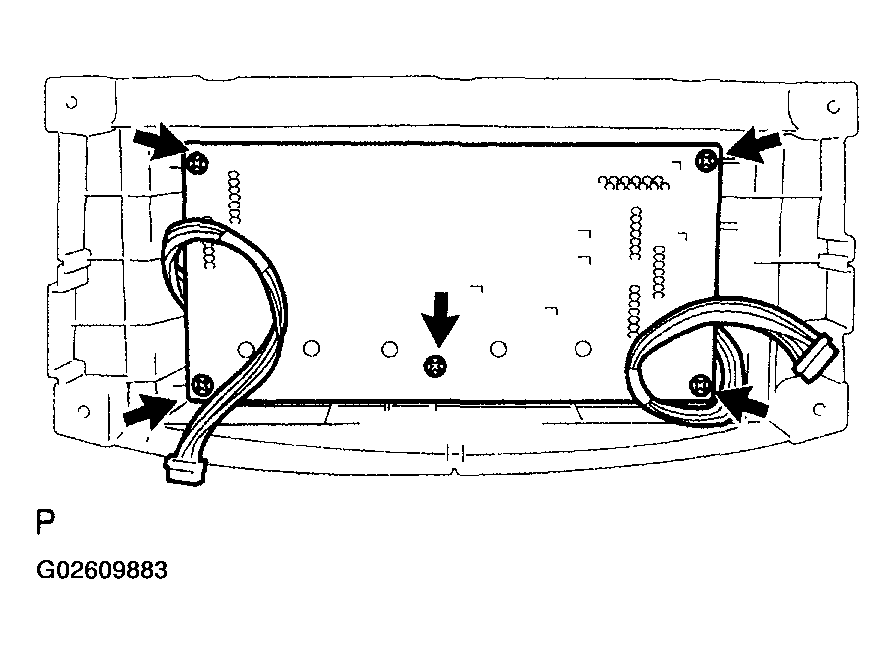

    3. Remove the 5 screws and the air conditioner amplifier assy.
    Fig 10: Removing Screws & Air Conditioner Amplifier Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE INTEGRATION CONTROL & PANEL BULB (MANUAL AIR CONDITIONING)
    1. Remove the integration control & panel bulb.
    Fig 11: Removing Integration Control & Panel Bulb

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE HEATER BLOWER SWITCH (MANUAL AIR CONDITIONING)

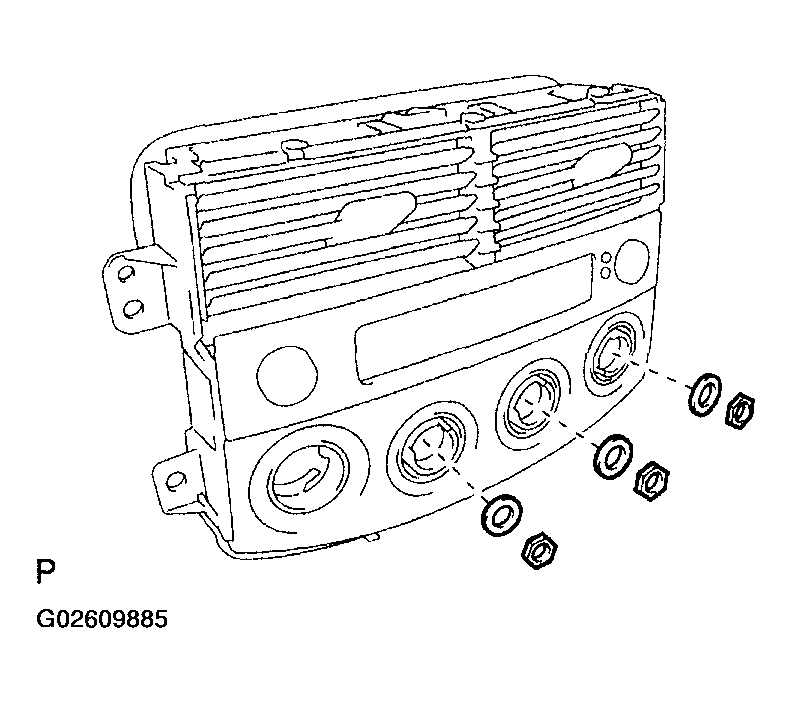

    1. Remove the 3 nuts, and the 3 washers.
       Fig 12: Removing Nuts & Washers

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

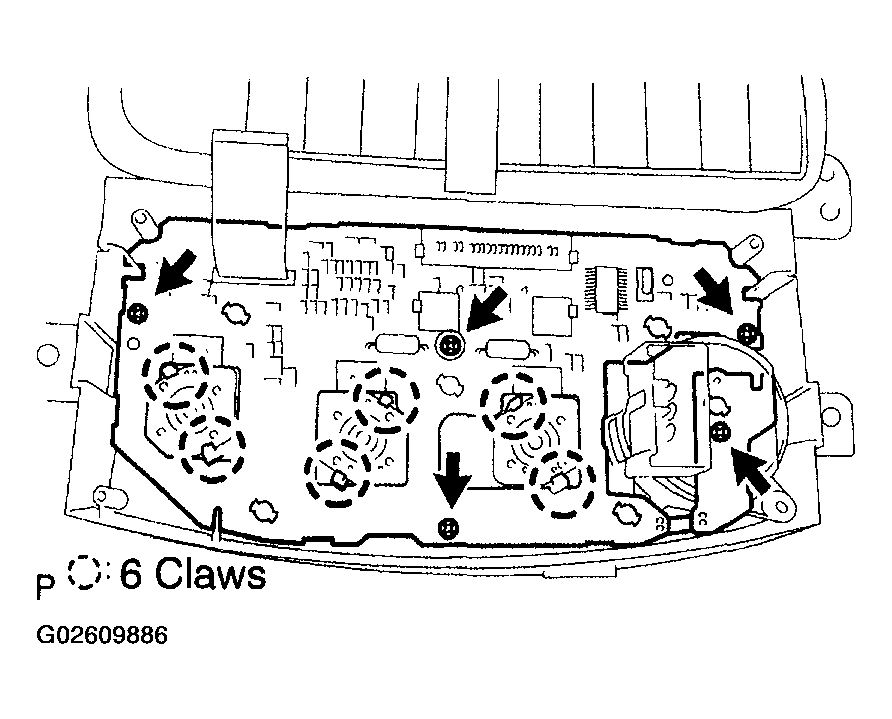

    2. Release the 6 claw fittings and remove the 5 screws and printed wire integration board sub-assy.
       Fig 13: Releasing Claw Fittings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

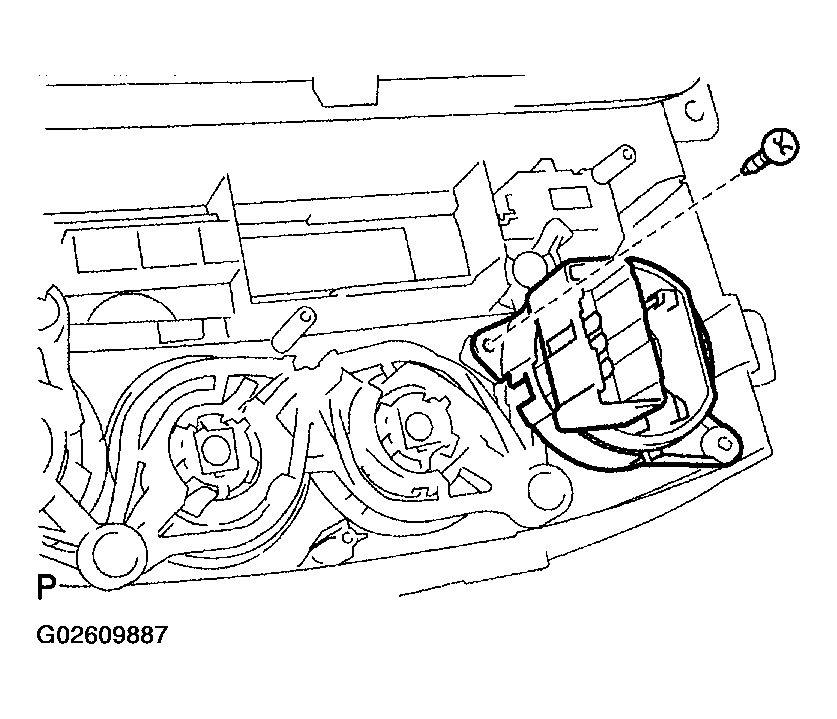

    3. Remove the screw and the heater blower switch.
    Fig 14: Removing Screw & Heater Blower Switch

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE PRINTED WIRE INTEGRATION BOARD SUB-ASSY (AUTO AIR CONDITIONING)

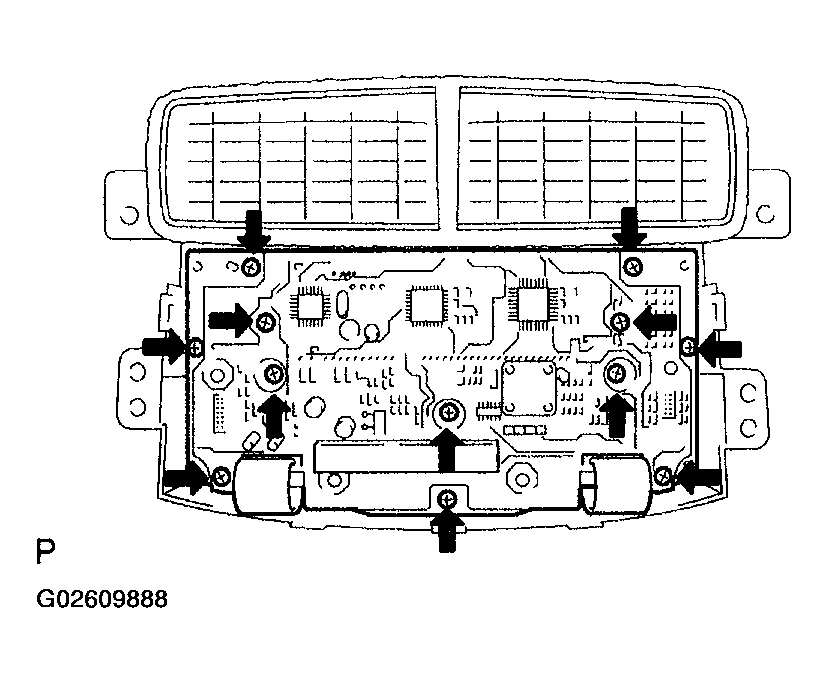

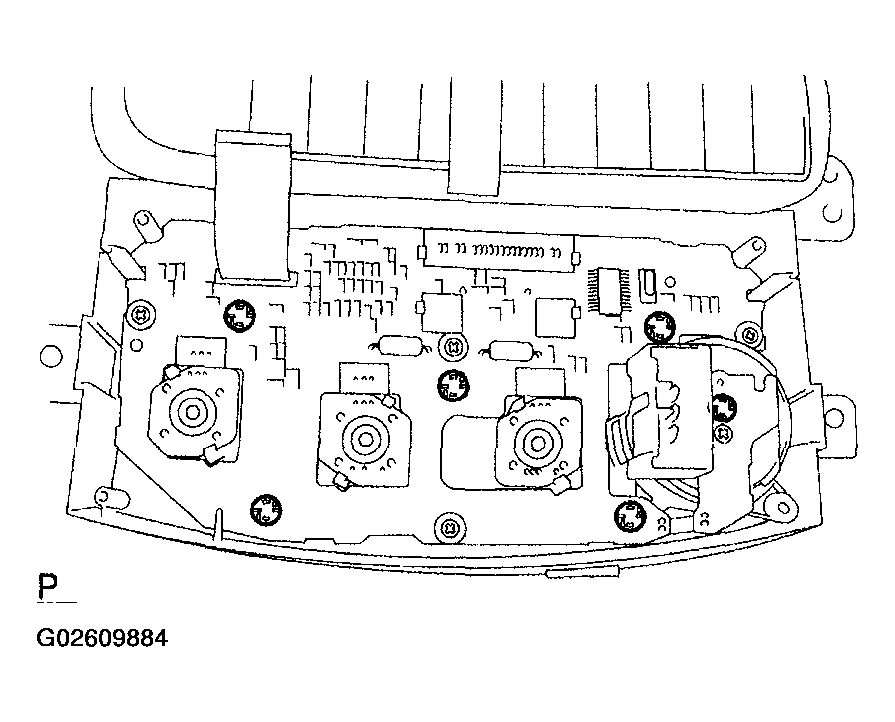

    1. Remove the 12 screws and the printed wire integration board sub-assy.
    Fig 15: Removing Screws & Printed Wire Integration Board Sub-Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE CLOCK ORNAMENT
    1. Remove the clock ornament.
    Fig 16: Removing Clock Ornament

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE CENTER CLUSTER MODULE KNOB NO. 5 (AUTO AIR CONDITIONING)
18. REMOVE CENTER CLUSTER MODULE KNOB NO. 6 (AUTO AIR CONDITIONING)
