Integration Control & Panel ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

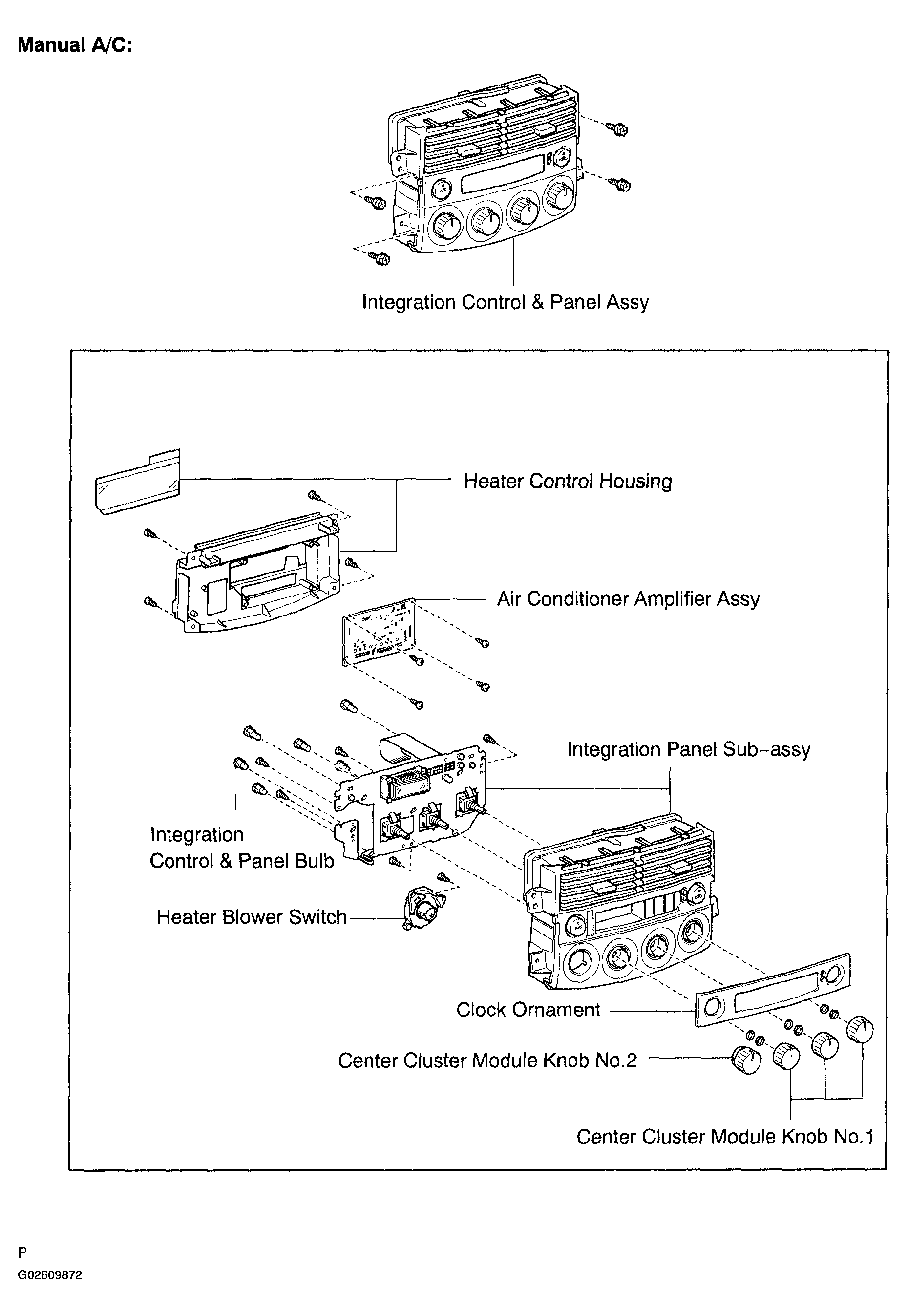

Fig 1: Identifying Integration Control & Panel Assy & Components (1 Of 2)
G02609872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

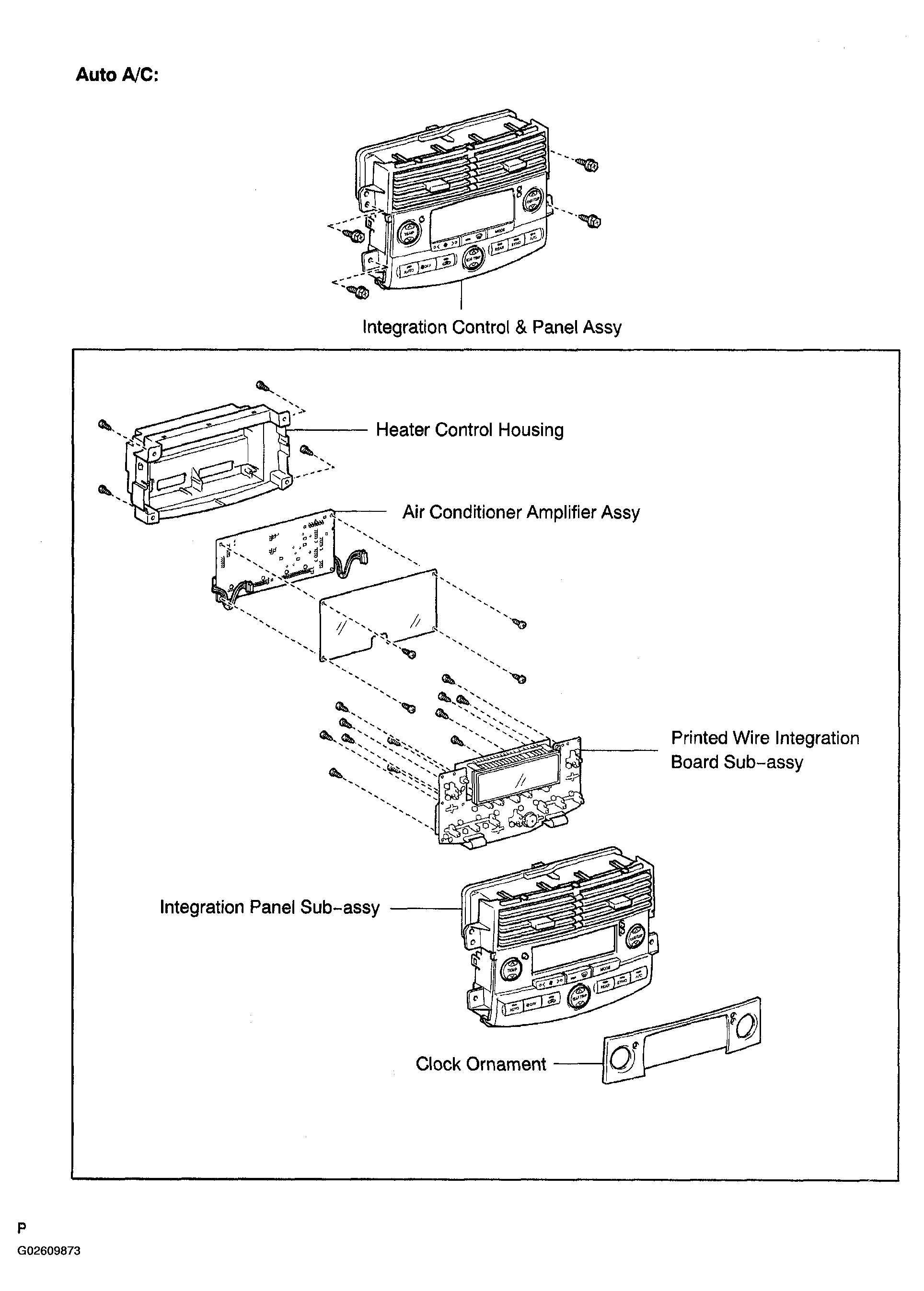

Fig 2: Identifying Integration Control & Panel Assy & Components (2 Of 2)
G02609873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
