Air Conditioning Radiator ASSY: Overhaul
HINT:
See COMPONENTS
- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See
REPLACEMENT )
SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
- REMOVE FRONT WIPER ARM HEAD CAP (See WINDSHIELD WIPER MOTOR ASSY )
- REMOVE FR WIPER ARM RH (See WINDSHIELD WIPER MOTOR ASSY )
- REMOVE FR WIPER ARM LH (See WINDSHIELD WIPER MOTOR ASSY )
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSY (See WINDSHIELD WIPER MOTOR ASSY )
- REMOVE WINDSHIELD WIPER MOTOR & LINK ASSY (See WINDSHIELD WIPER MOTOR ASSY WINDSHIELD WIPER MOTOR ASSY )
- REMOVE COWL TOP PANEL SUB-ASSY OUTER FRONT

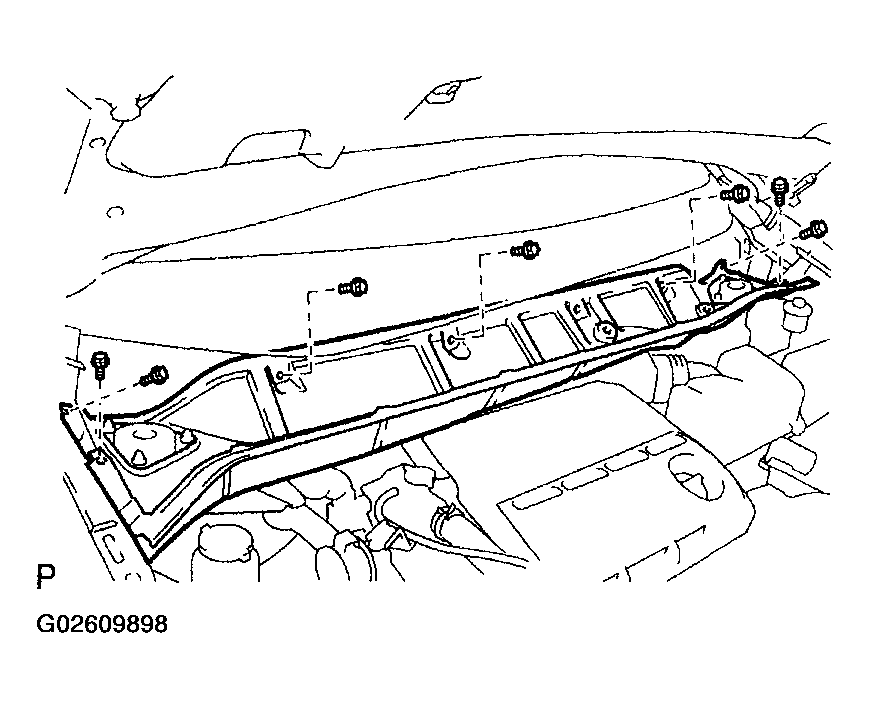

- Remove the 7 bolts and disconnect the cowl top panel sub-assy.
- DISCONNECT COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
- Install SST on the piping clamp.
SST 09870-00025
HINT:
Make sure the direction of the piping clamp claw and SST by checking Fig 1on the caution label.

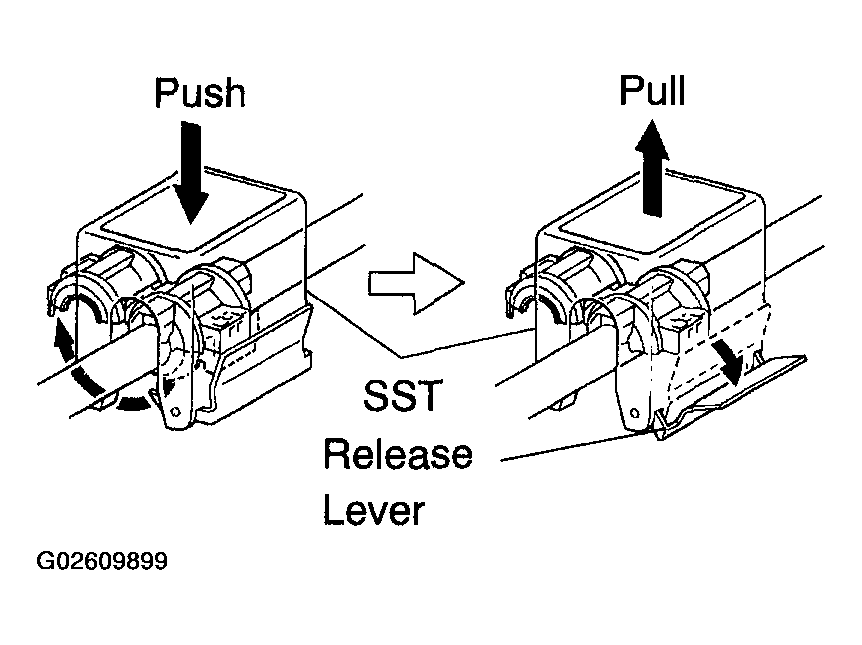

- Push down SST and release the clamp lock.NOTE: Be careful not to deform the tube when pushing SST.
- Pull SST slightly and push the release lever, and then remove the piping clamp with SST.
- Disconnect the cooler refrigerant liquid pipe (to cooler unit).
NOTE:- Do not use tools like a screwdriver to remove the tube.
- Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matters from entering.
- Install SST on the piping clamp.
- DISCONNECT SUCTION HOSE SUB-ASSY
SST 09870-00015
HINT:
Disconnection of the pipe cooler refrigerant suction hose sub-assy is the same way as the cooler refrigerant liquid pipe E (to cooler unit).
- REMOVE AIR CLEANER CAP SUB-ASSY (See REPLACEMENT )

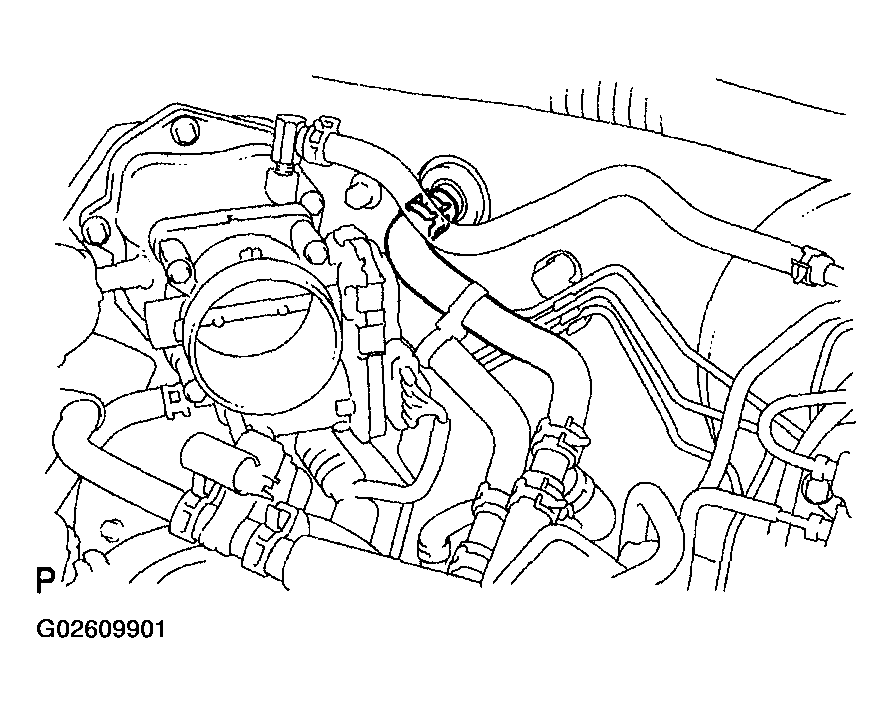

- DISCONNECT HEATER WATER OUTLET HOSE A (FROM HEATER UNIT)
- Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water outlet hose A (from heater unit).
- DISCONNECT HEATER WATER INLET HOSE A
HINT:
Disconnection of the heater water inlet hose A is the same way as the heater water outlet hose A (from heater unit).
- REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (See
REPLACEMENT
)
HINT:
Refer to the instructions for removal of the instrument panel sub-assy w/ passenger airbag assy.

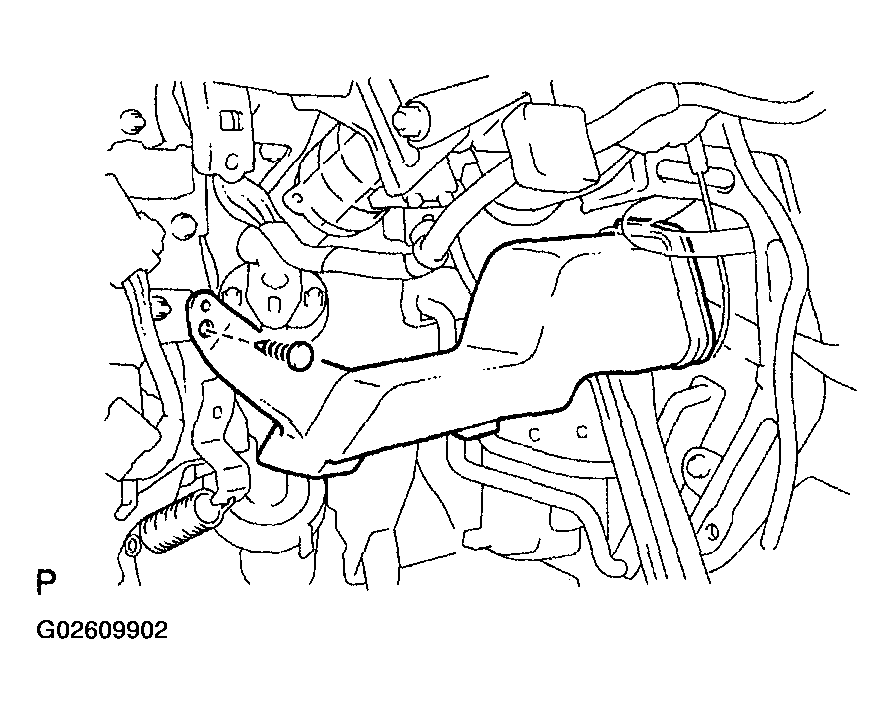

- REMOVE HEATER TO FOOT DUCT NO. 3
- Remove the clip and the heater to foot duct No. 3.
- REMOVE HEATER TO FOOT DUCT NO. 1
- Remove the clip and the heater to foot duct No. 1.
- DISCONNECT TRANSMISSION CONTROL CABLE ASSY (See OVERHAUL )
- REMOVE SHIFT LOCK CONTROL UNIT ASSY (See OVERHAUL )

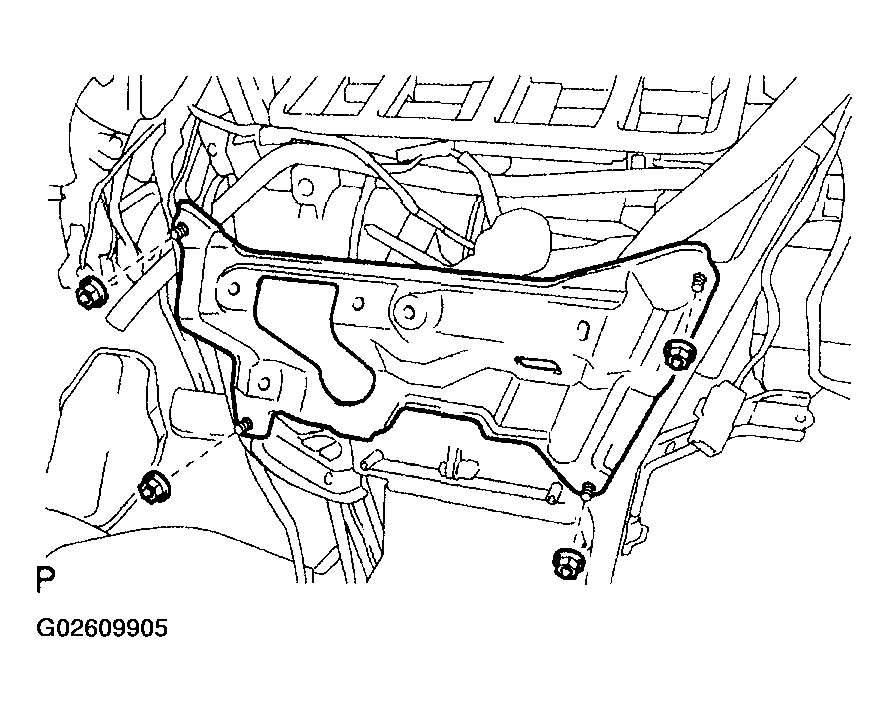

- REMOVE INSTRUMENT PANEL BRACKET NO. 5
- Release the 2 clamps and disconnect the connector.
- Remove the 4 nuts and the instrument panel bracket No. 5.

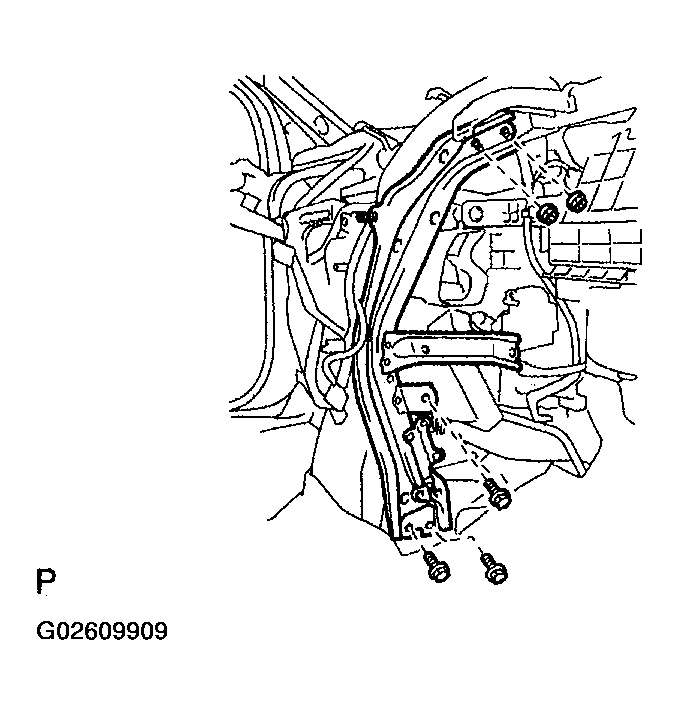

- REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO. 1

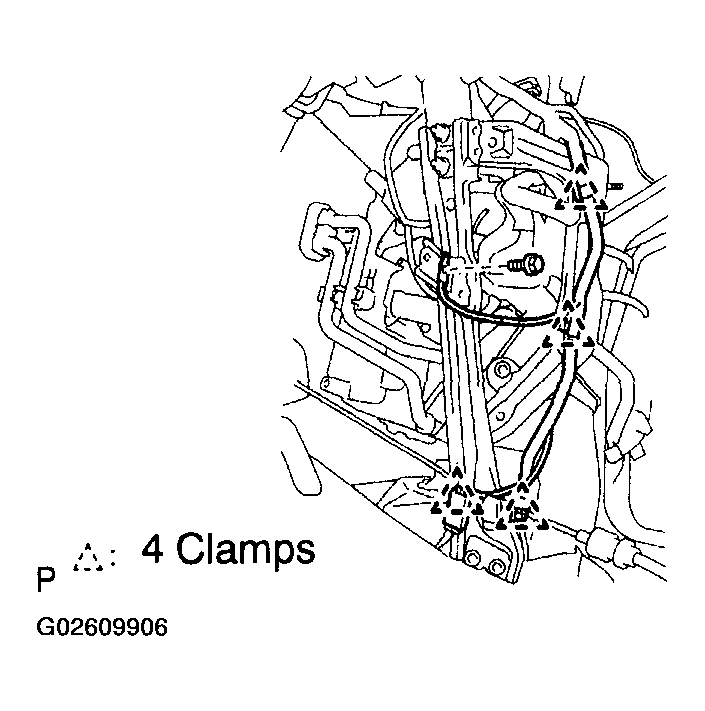

- Release the 4 clamps and remove the bolt and disconnect the connector.
- Remove the 3 bolts, the 2 nuts and the instrument panel brace sub-assy No. 1.
- REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO. 2

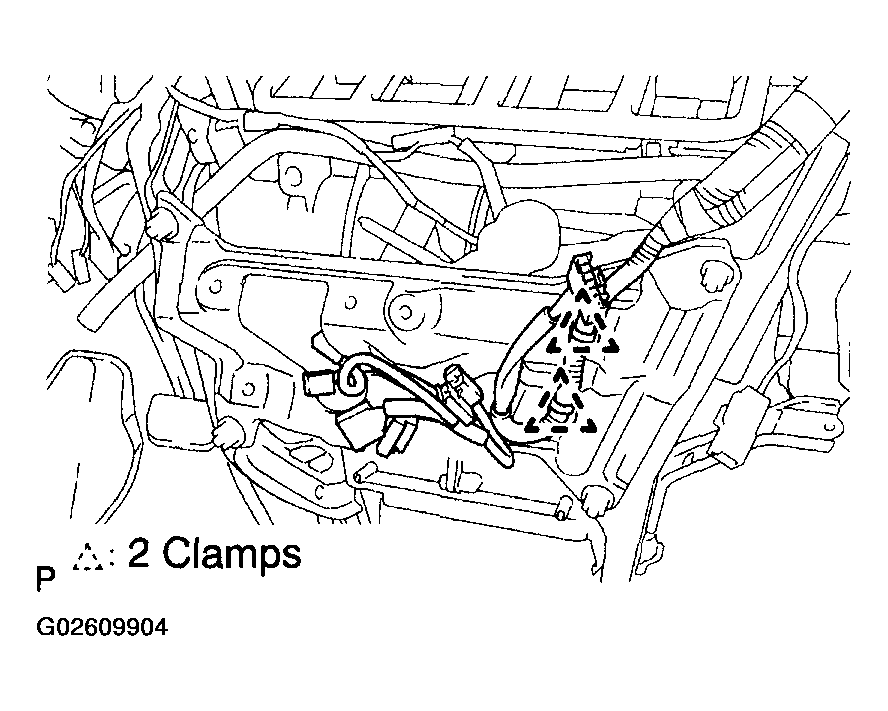

- Release the 2 clamps and disconnect the connector.
- Remove the 3 bolts, the 2 nuts and the instrument panel brace sub-assy No. 2.
- REMOVE STEERING COLUMN ASSY (See OVERHAUL )
- REMOVE ECM (See REPLACEMENT )
- REMOVE STEREO COMPONENT AMPLIFIER ASSY (W/ STEREO COMPONENT AMPLIFIER) (See REPLACEMENT )
- REMOVE FRONT FENDER GARNISH RH (See REPLACEMENT )

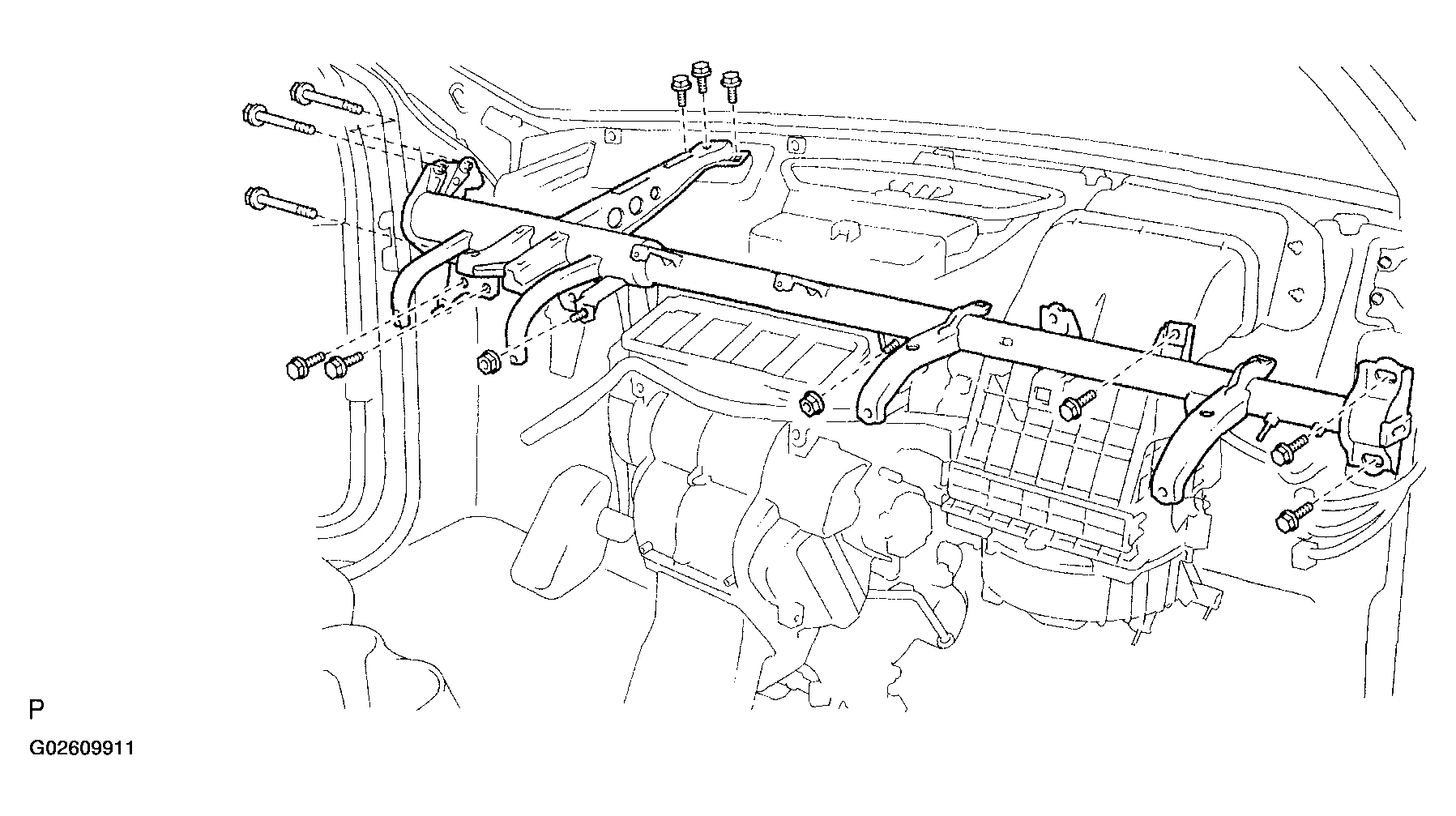

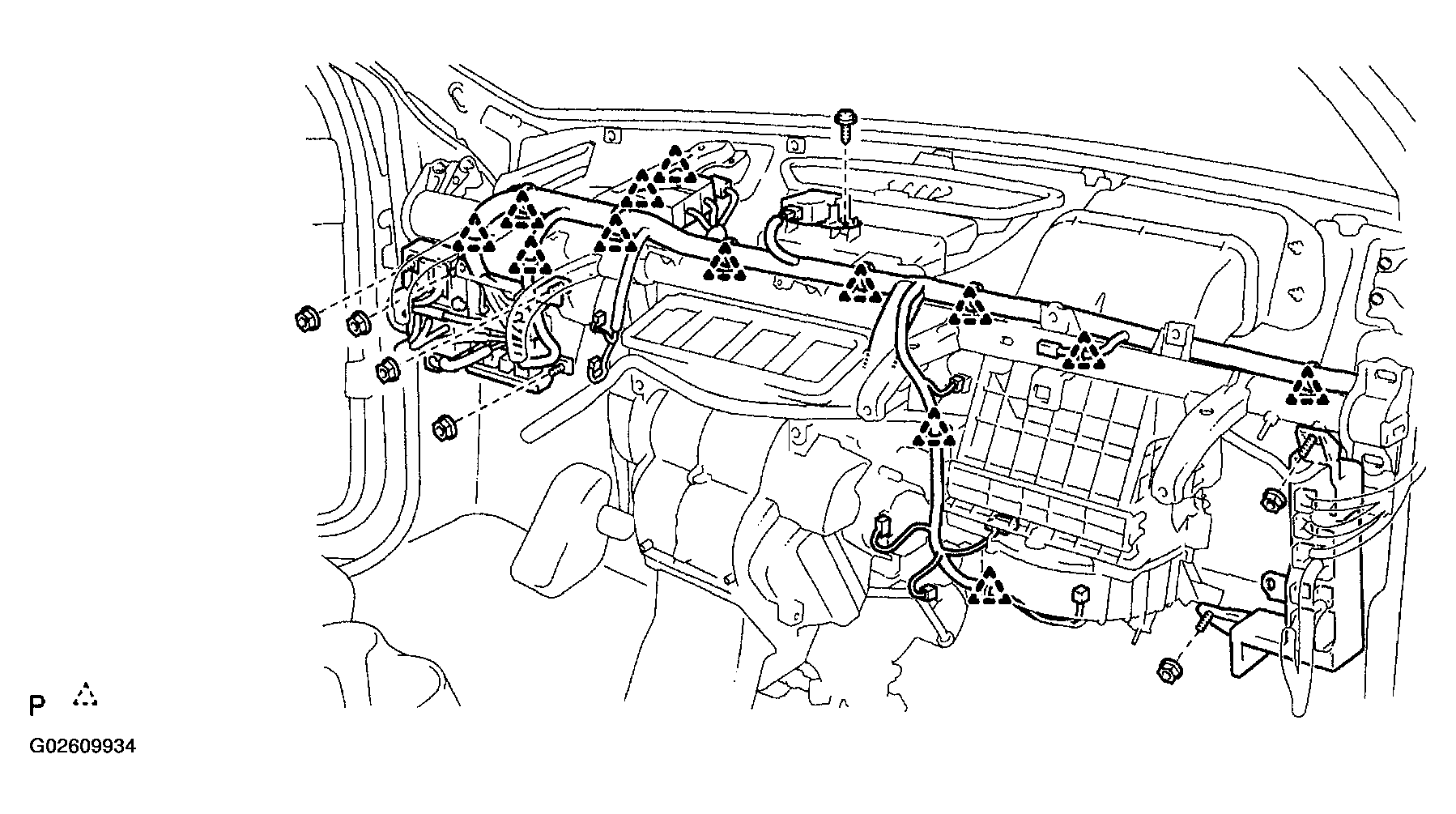

- REMOVE INSTRUMENT PANEL REINFORCEMENT
- Remove the 6 nuts.
- Release the 13 clamps.
- Disconnect the connectors.
- Remove the 11 bolts, 2 nuts and the instrument panel reinforcement.
- REMOVE DEFROSTER NOZZLE ASSY LOWER

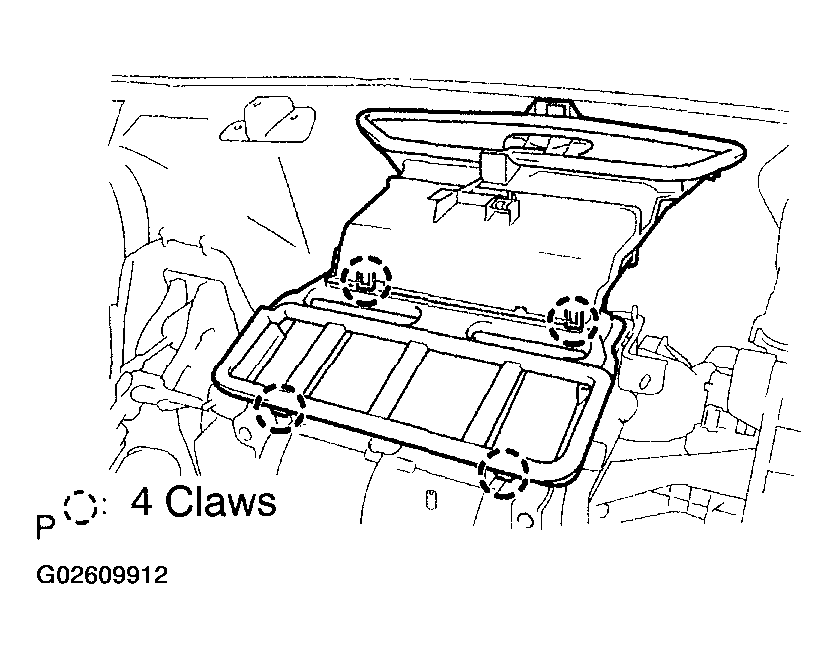

- Release the 4 claw fittings and remove the defroster nozzle assy lower.

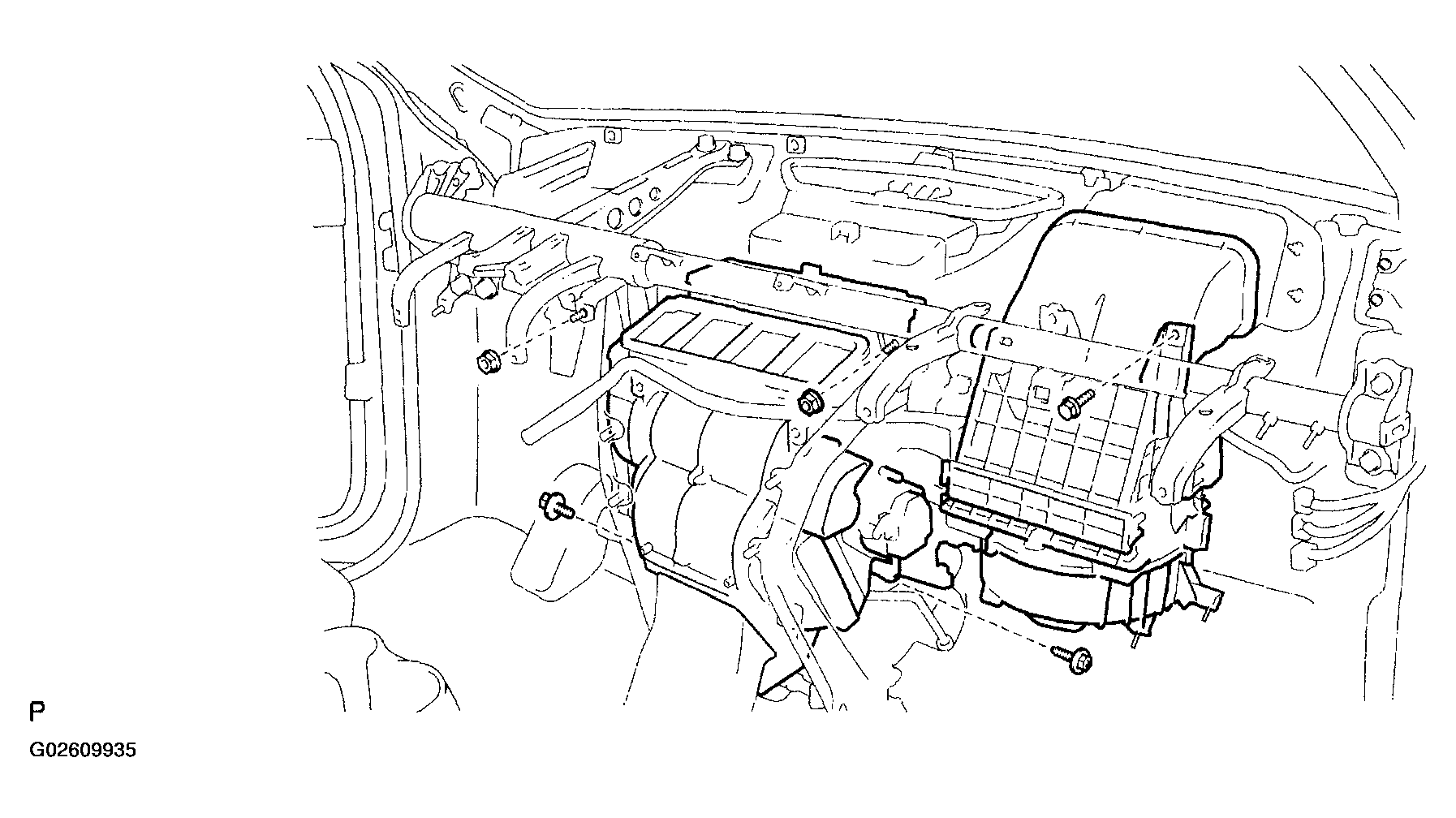

- REMOVE AIR CONDITIONING UNIT ASSY

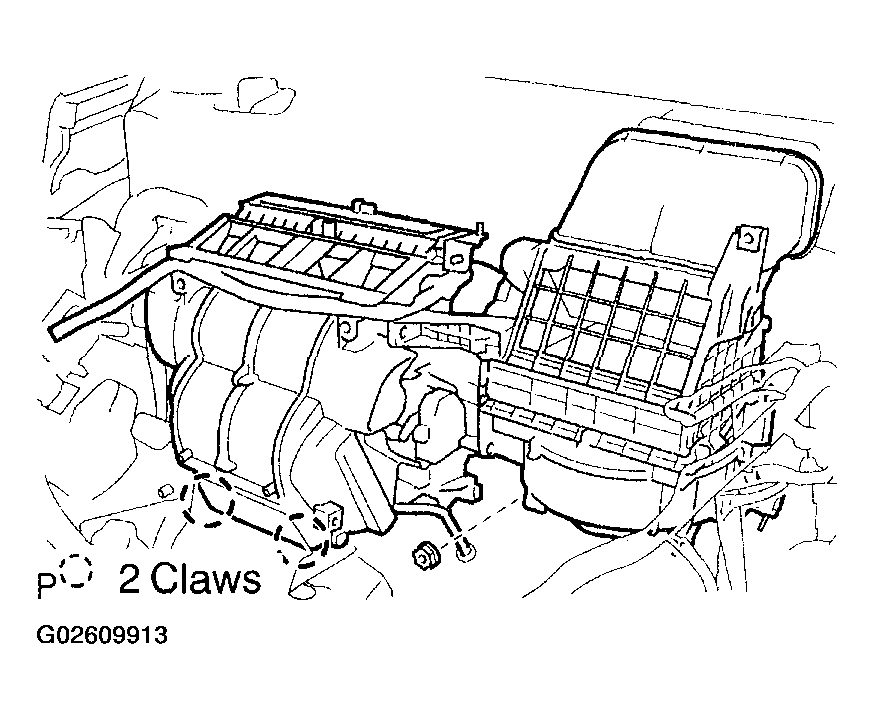

- Release the 2 claw fittings and remove the nut and the air conditioning unit assy.

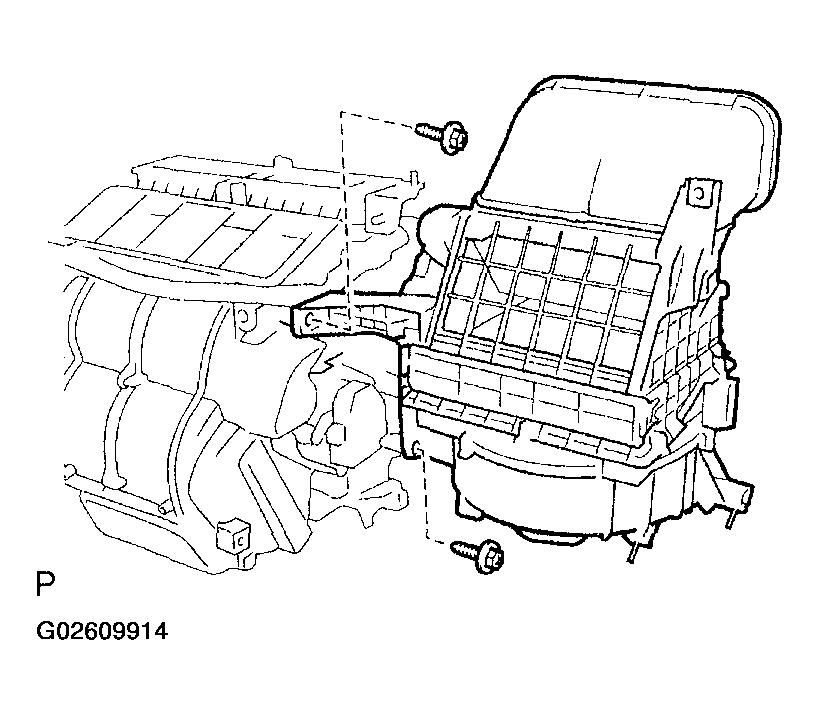

- REMOVE BLOWER ASSY
- Remove the 2 screws and the blower assy.

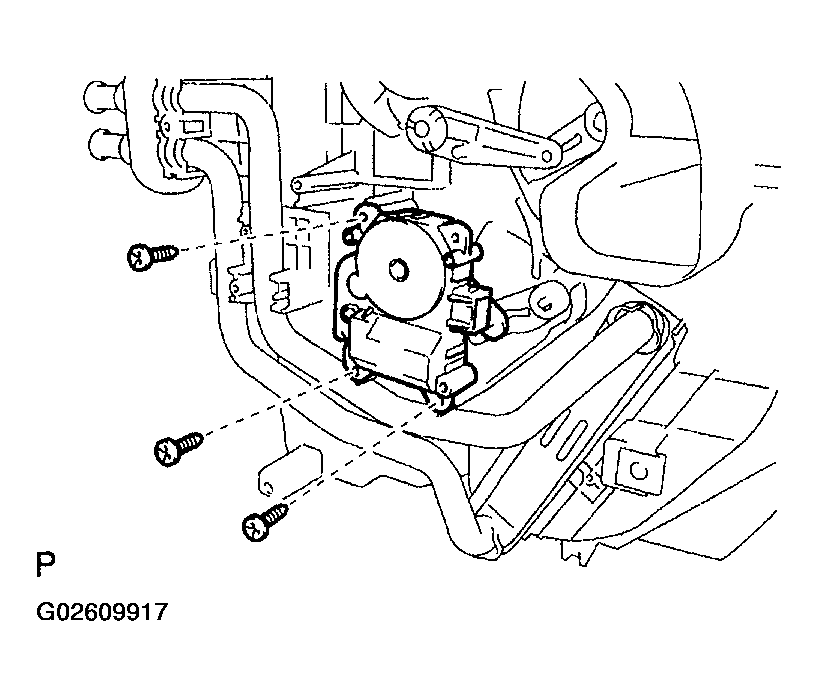

- REMOVE MODE DAMPER SERVO SUB-ASSY
- Remove the 3 screws and the mode damper servo sub-assy.

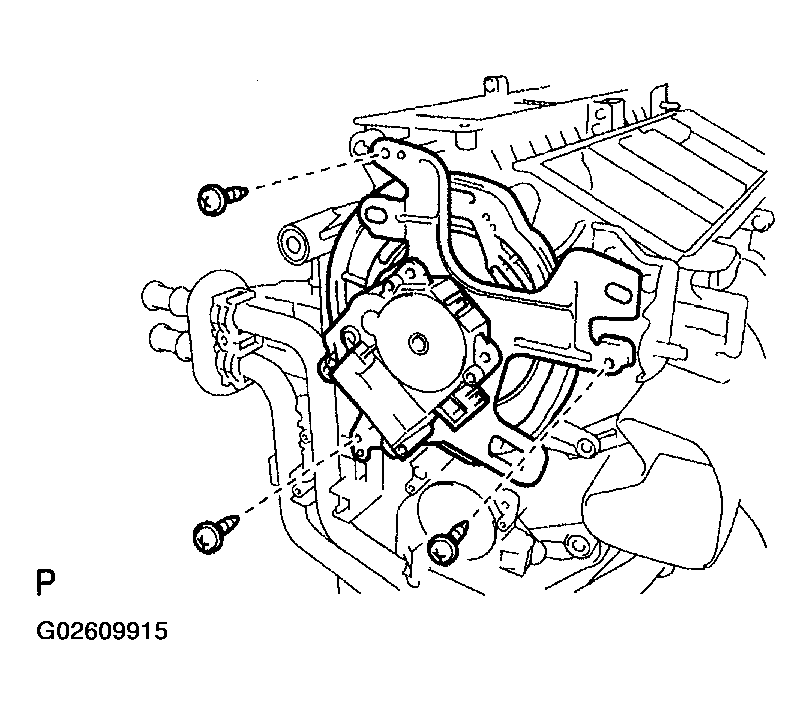

- REMOVE AIRMIX DAMPER SERVO SUB-ASSY
- Remove the 3 screws and the airmix damper servo sub-assy.
- REMOVE AIRMIX NO. 2 DAMPER SERVO SUB-ASSY (AUTO AIR CONDITIONING)

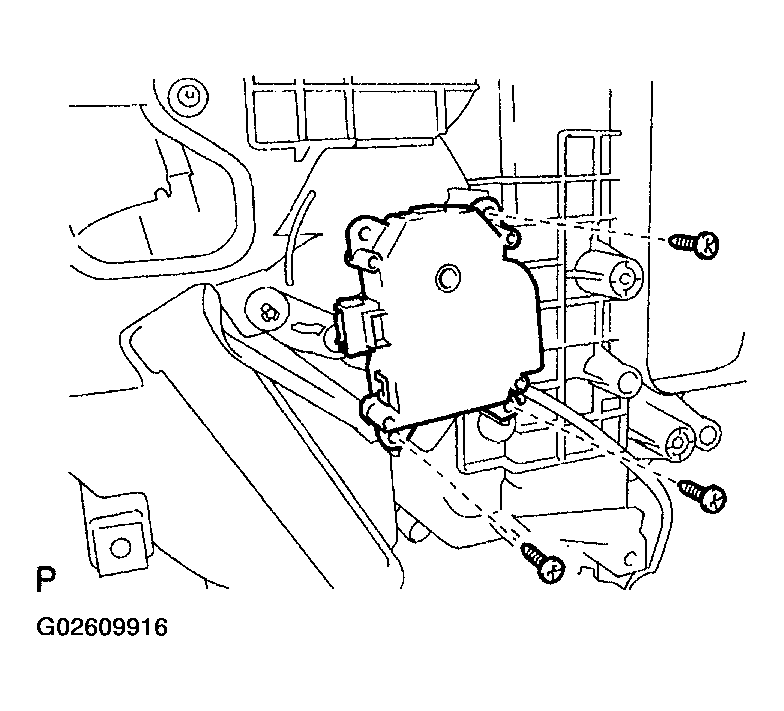

- Remove the 3 screws and the airmix No. 2 damper servo sub-assy.
- REMOVE HEATER CLAMP NO. 1

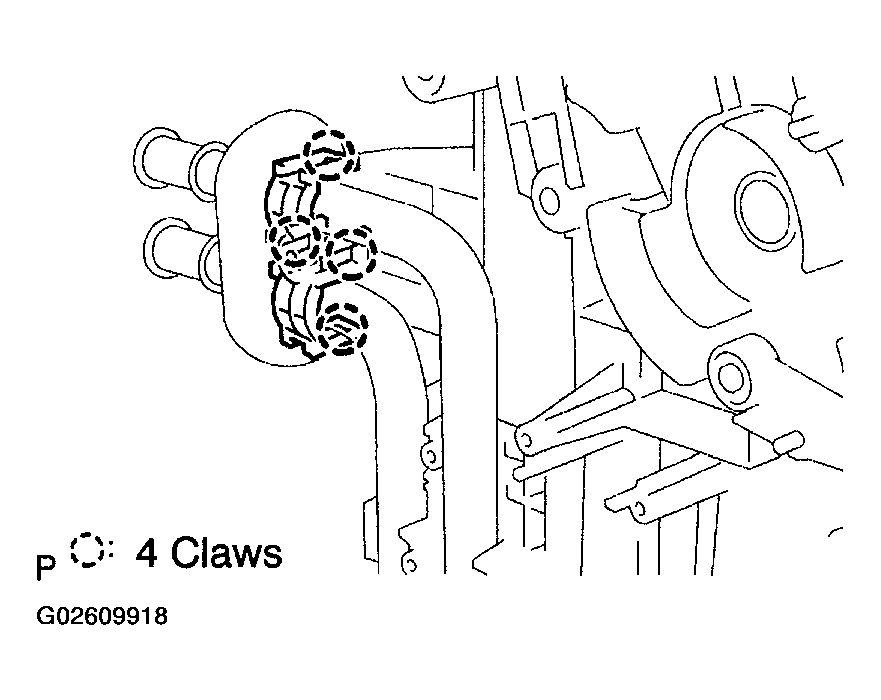

- Release the 4 claw fittings and remove the heater clamp No. 1.
- REMOVE AIR CONDITIONING RADIATOR BRACKET NO. 3
- Remove the screw and the air conditioning radiator bracket No. 3.

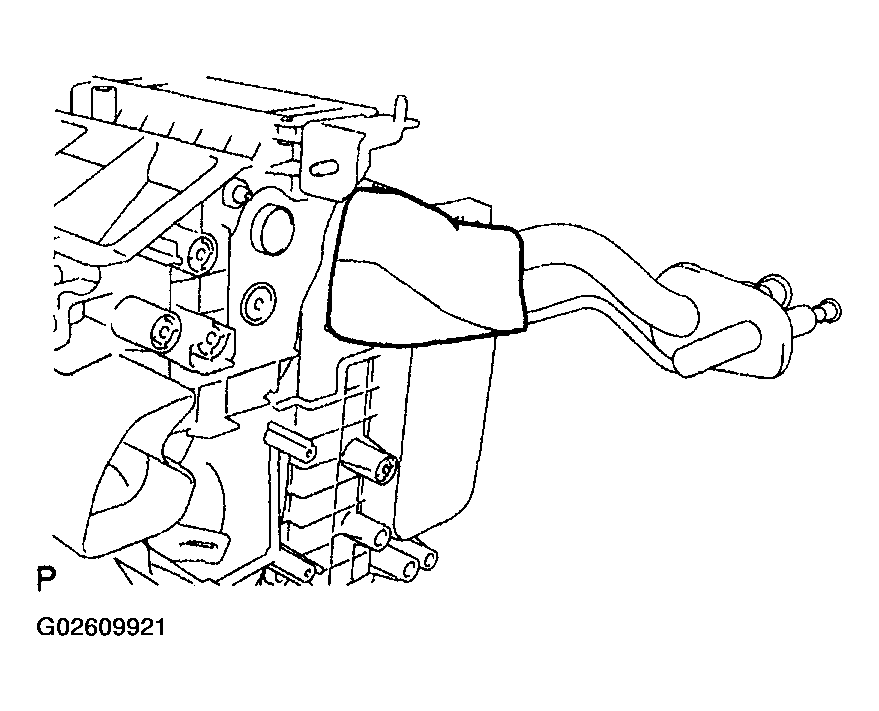

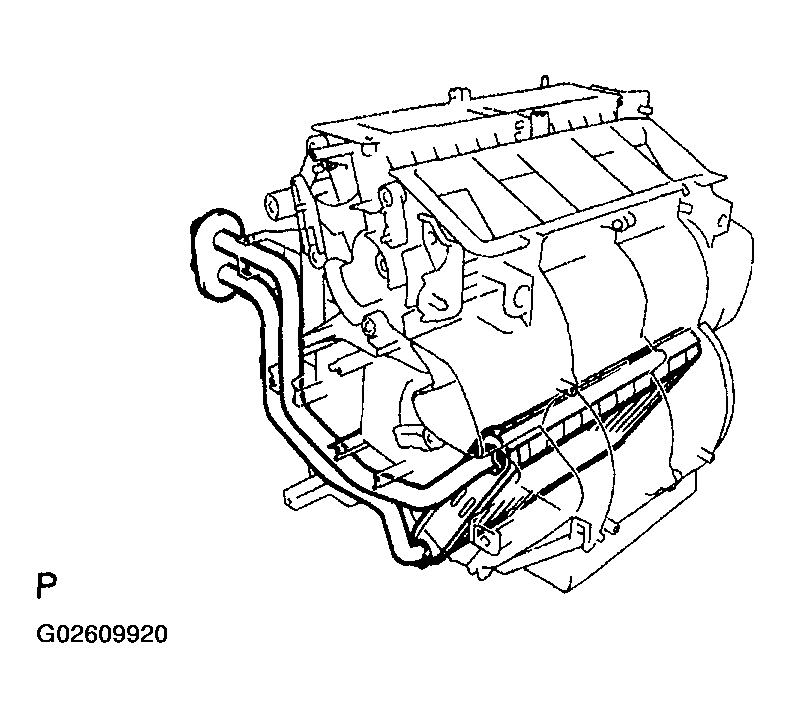

- REMOVE HEATER RADIATOR UNIT SUB-ASSY
- Remove the heater radiator unit sub-assy from the air conditioning radiator assy.
- REMOVE COOLER THERMISTOR NO. 1
- REMOVE COOLING UNIT PACKING NO. 3
- Remove the cooling unit packing No. 3

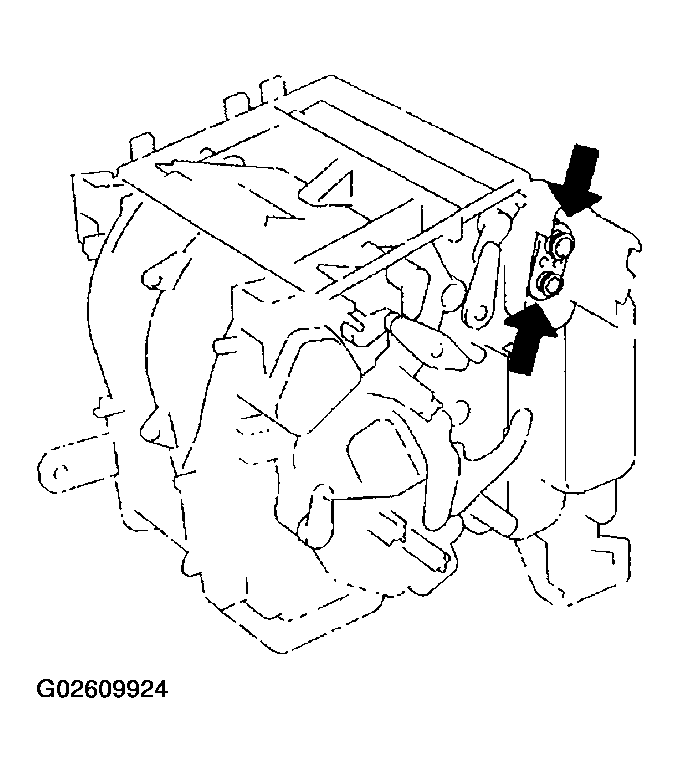

- REMOVE AIR CONDITIONING TUBE ASSY

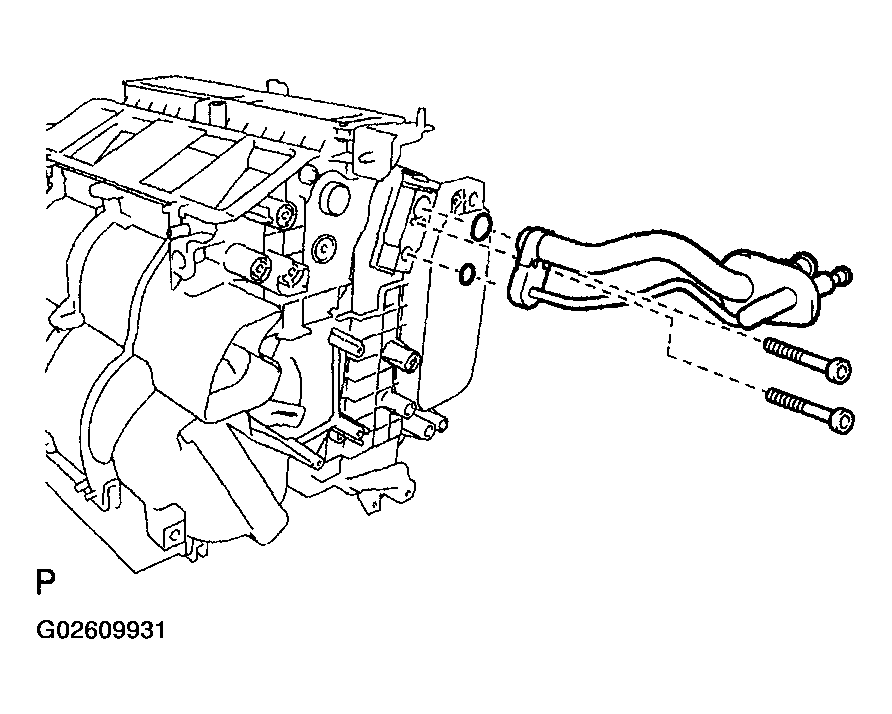

- Using a hexagon wrench 4.0 mm (0.15 in.), remove the 2 hexagon bolts and the air conditioning tube assy.
- Remove the 2 O-rings from the air conditioning tube assy.
- REMOVE COOLER EXPANSION VALVE
- Remove the cooler expansion valve from the cooler evaporator sub-assy No. 1.
- Remove the 2 O-rings from the cooler evaporator Sub-assy No. 1.
- REMOVE AIR CONDITIONING RADIATOR BRACKET NO. 2
- Remove the 2 screws and the air conditioning radiator bracket No. 2.
- REMOVE AIR CONDITIONING RADIATOR BRACKET NO. 1
- Remove the 3 screws and the air conditioning radiator bracket No. 1.

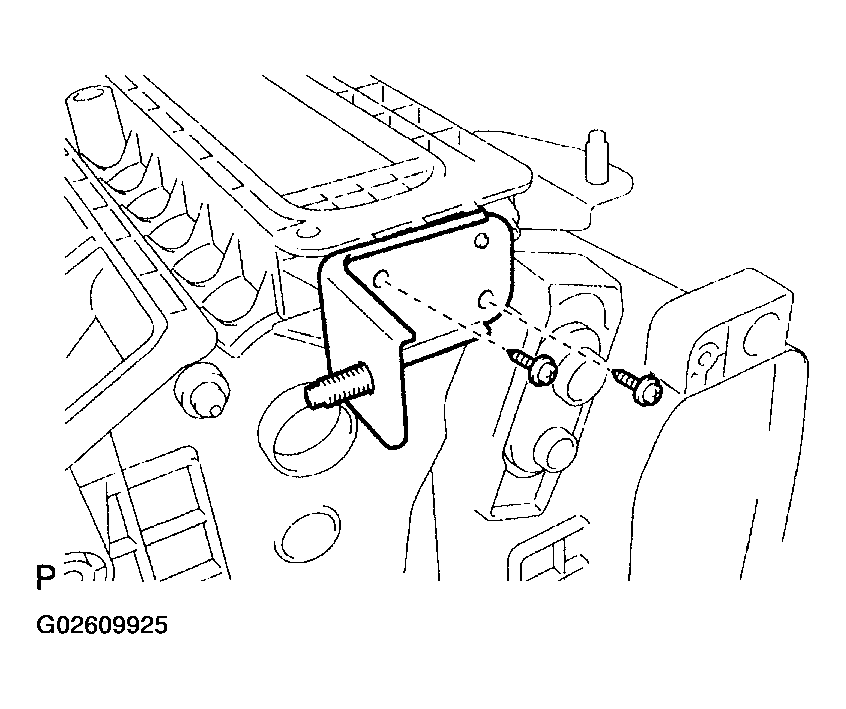

- REMOVE AIR CONDITIONING RADIATOR BRACKET NO. 4
- Remove the air conditioning radiator bracket No. 4.

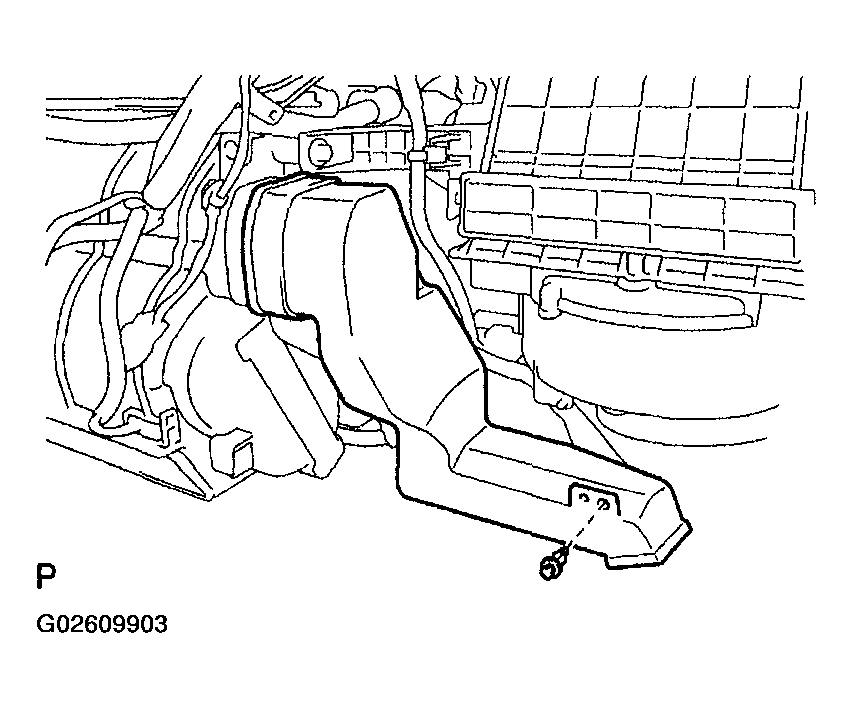

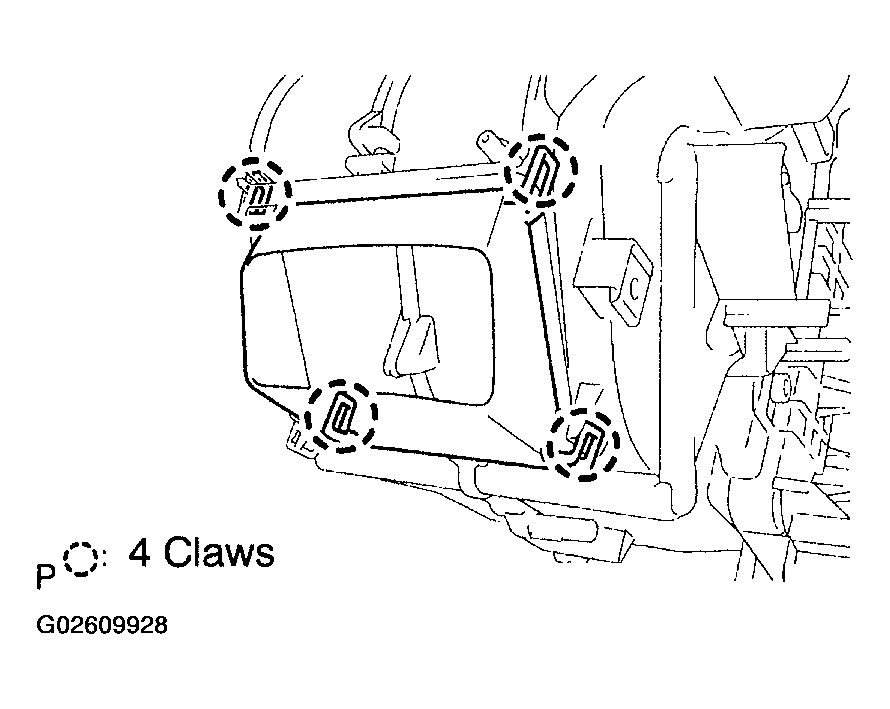

- REMOVE AIR DUCT NO. 1
- Release the 4 claw fittings and remove the air duct No. 1.
- INSTALL COOLER EXPANSION VALVE
- Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the cooler evaporator sub-assy No. 1.
Compressor oil: ND-OIL 8 or equivalent
- Install the cooler expansion valve to the cooler evaporator sub-assy No. 1.
- Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the cooler evaporator sub-assy No. 1.
- INSTALL AIR CONDITIONING TUBE ASSY
- Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the air conditioning tube assy.
Compressor oil: ND-OIL 8 or equivalent
- Install the 2 O-rings on the air conditioning tube assy.

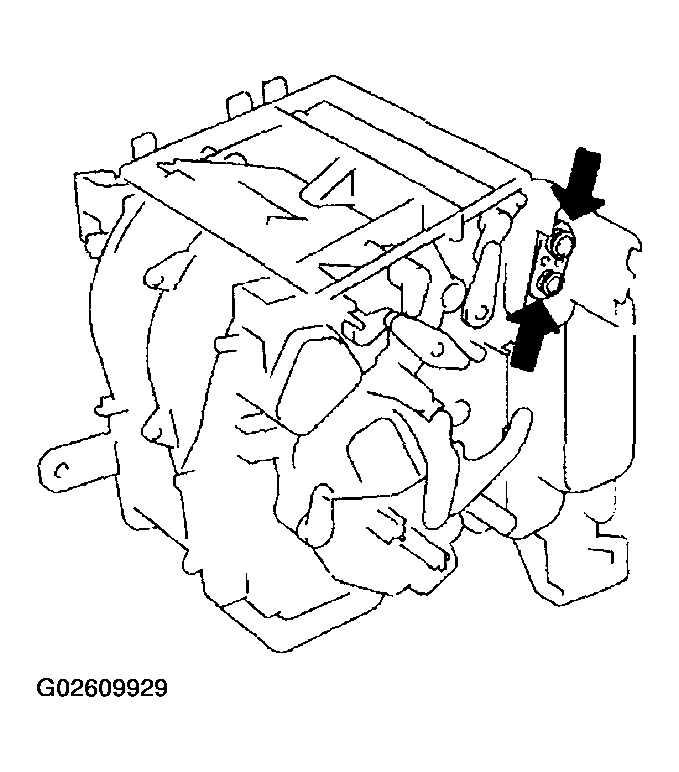

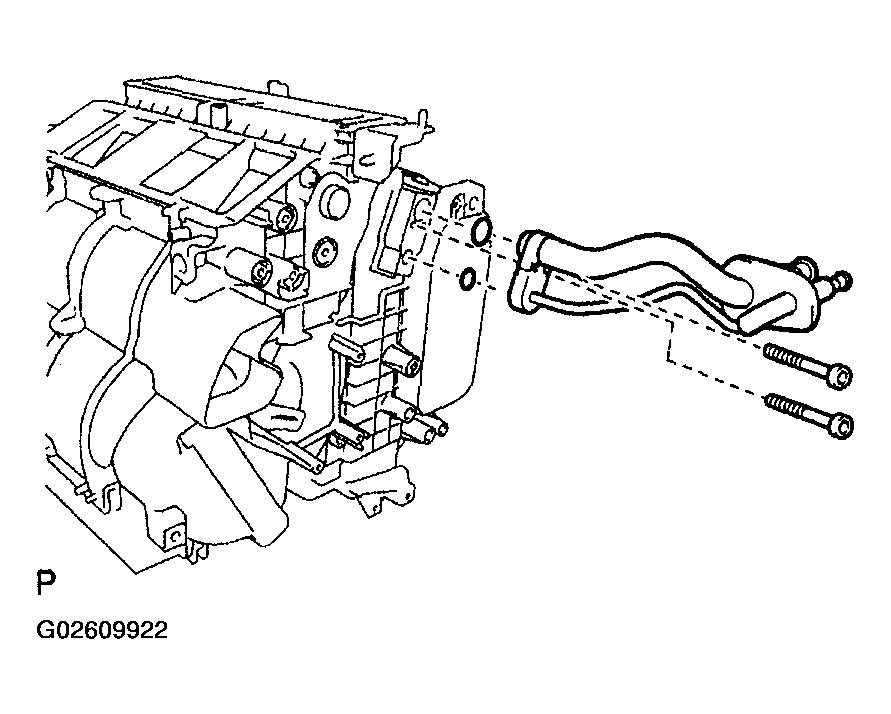

- Using a hexagon wrench 4.0 mm (0.15 in.), install the air conditioning tube assy with the 2 hexagon bolts.
Torque: 3.5 N.m (35 kgf.cm, 30 in.lbf)
- Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the air conditioning tube assy.

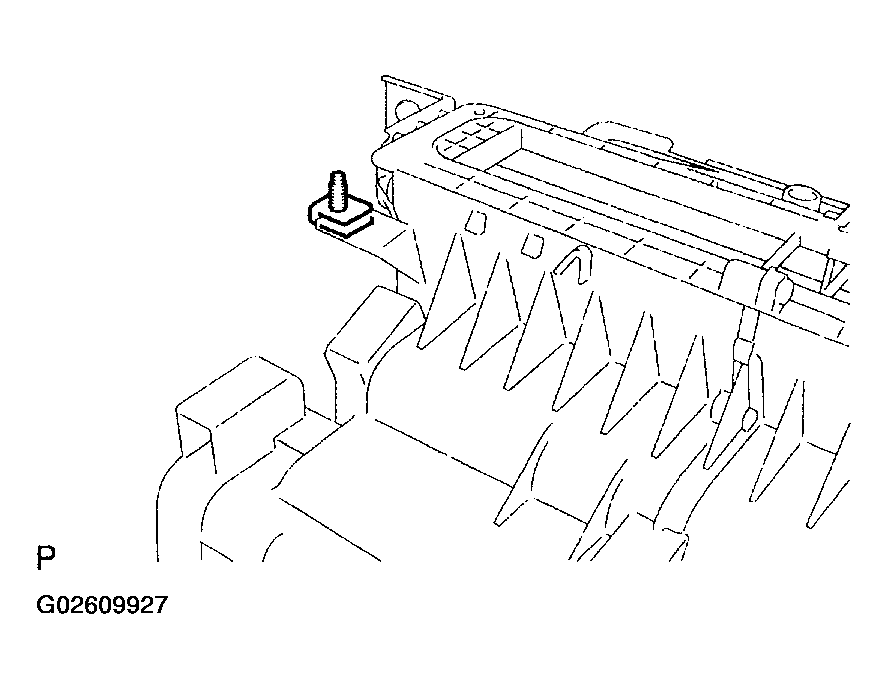

- TEMPORARILY TIGHTEN AIR CONDITIONING UNIT ASSY
- Temporarily tighten the air conditioning unit assy with the nut.
Torque: 9.8 N.m (100 kgf.cm, 87 in..lbf)

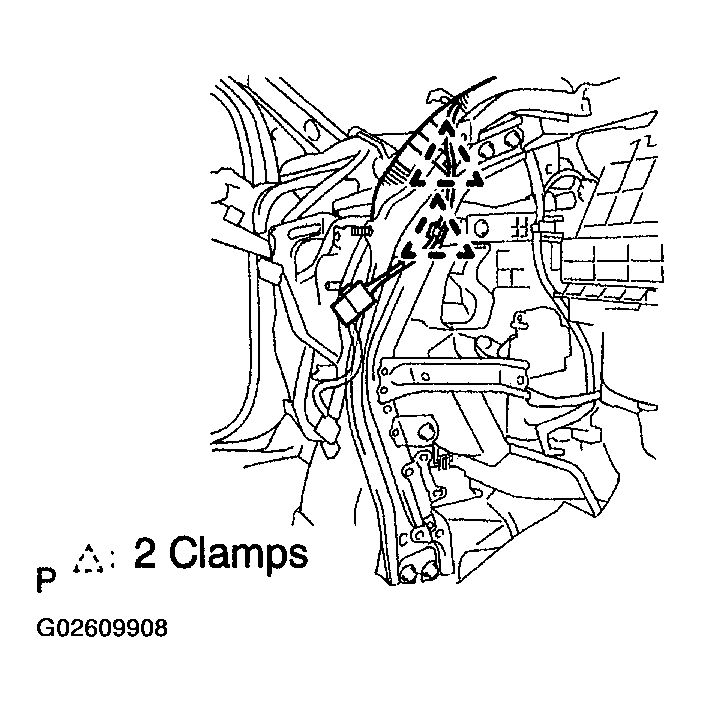

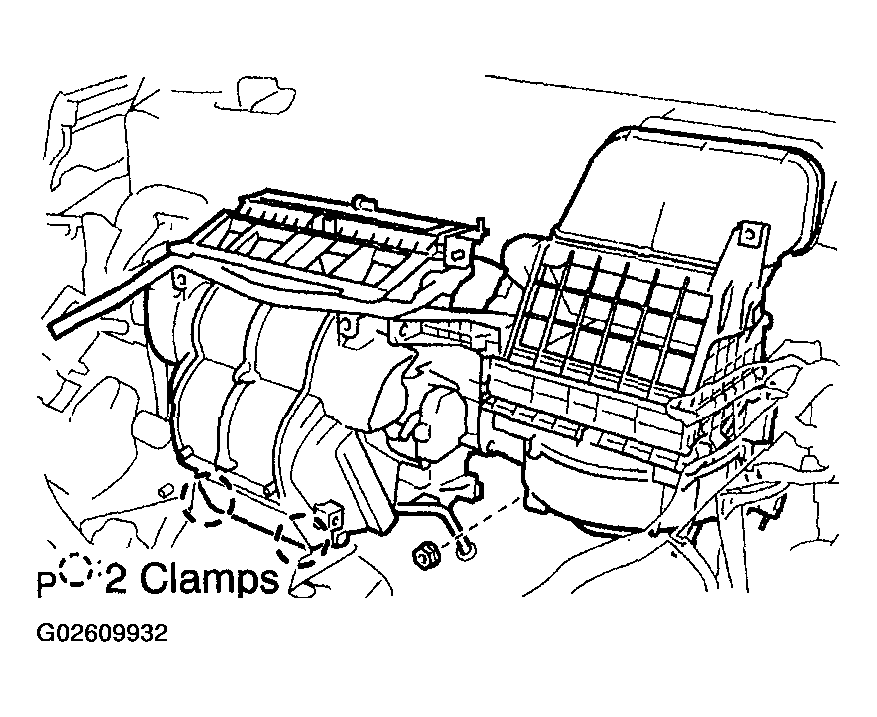

- Install the 2 clamps.
- Temporarily tighten the air conditioning unit assy with the nut.

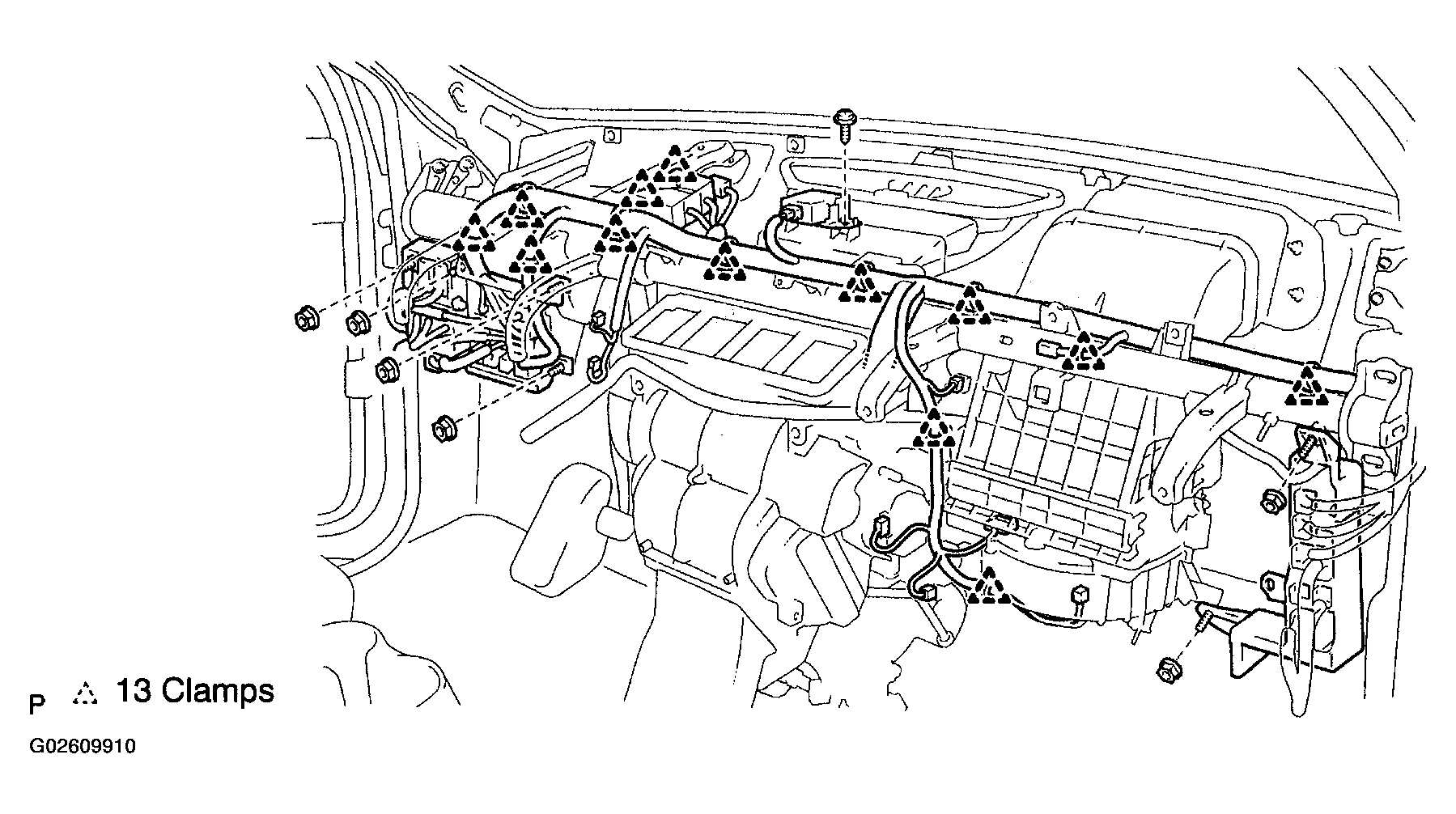

- INSTALL INSTRUMENT PANEL REINFORCEMENT

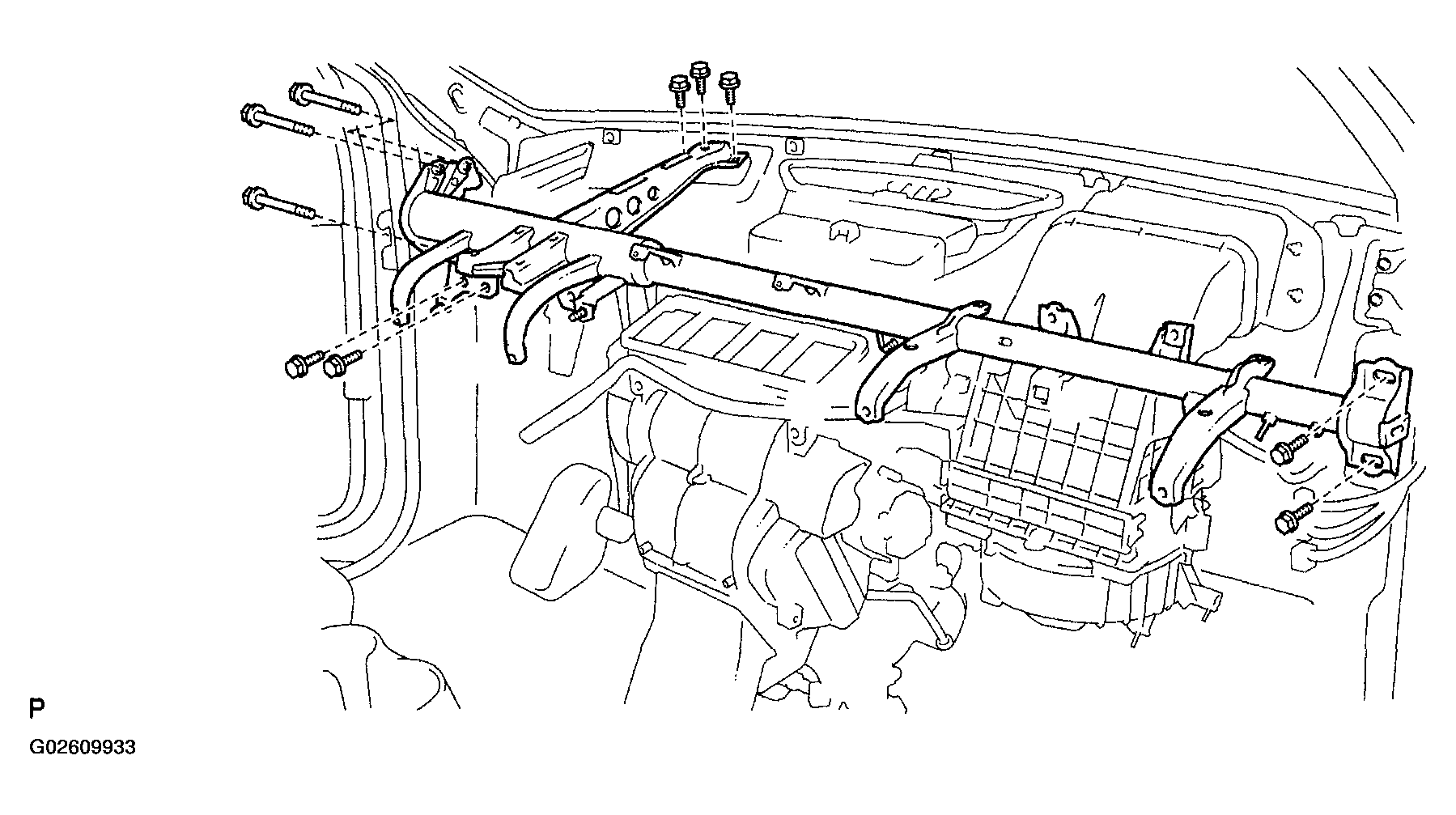

- Install the instrument panel reinforcement with the 10 bolts.
- Install the 13 clamps.
- Connect the connectors.
- Install the 6 nuts.
Torque: 7.3 N.m (74 kgf.cm, 65 in..lbf)
- INSTALL AIR CONDITIONING UNIT ASSY

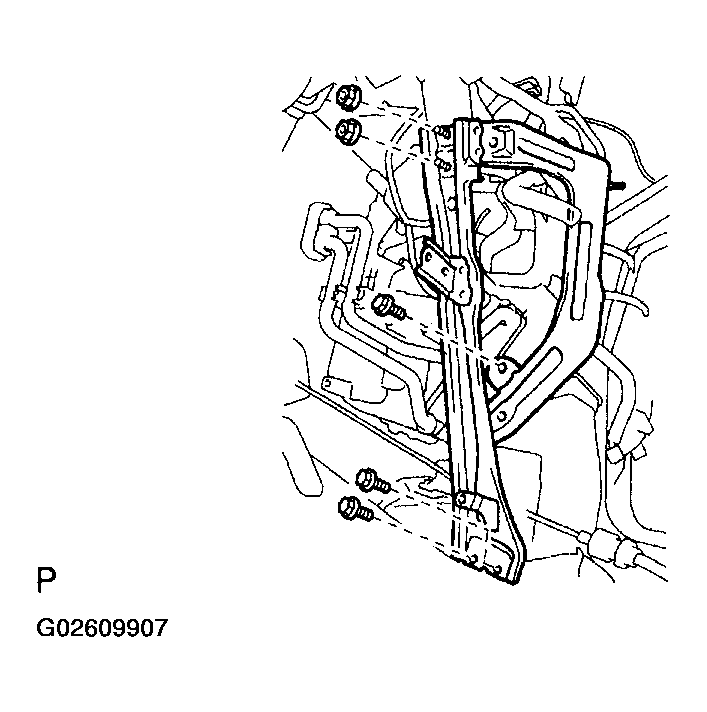

- Install the air conditioner unit assy with the 3 bolts and 2 nuts.
- INSTALL SHIFT LOCK CONTROL UNIT ASSY (See OVERHAUL )
- CONNECT TRANSMISSION CONTROL CABLE ASSY (See OVERHAUL )
- INSTALL STEERING COLUMN ASSY (See OVERHAUL )
- INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (See REPLACEMENT )
- INSTALL SUCTION HOSE SUB-ASSY
- Lubricate a new O-ring with compressor oil and install it on the hose.
Compressor oil: ND-OIL 8 or equivalent
- Install the suction hose sub-assy and the piping clamp.
HINT:
After the connection, check the claw fitting of the piping clamp.
- Lubricate a new O-ring with compressor oil and install it on the hose.
- INSTALL COOLER REFRIGERANT LIQUID PIPE E (TO COOLER UNIT)
- Lubricate a new O-ring with compressor oil and install it to the pipe.
Compressor oil: ND-OIL 8 or equivalent
- Install the cooler refrigerant liquid pipe E and the piping clamp.
HINT:
After the connection, check the claw fitting of the piping clamp.
- Lubricate a new O-ring with compressor oil and install it to the pipe.
- ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
- INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
- INSPECT CHECK KEY INTERLOCK OPERATION (See SHIFT LOCK SYSTEM )
- INSPECT CHECK SHIFT LOCK OPERATION (See SHIFT LOCK SYSTEM )
- INSPECT CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See SHIFT LOCK SYSTEM )
- ADD COOLANT (See ENGINE COOLANT )
- CHARGE REFRIGERANT (See
REPLACEMENT )
SST 07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)
Specified amount: 780 +/- 30 g (27.5 +/- 1.06 oz.)
- WARM UP ENGINE
- CHECK FOR ENGINE COOLANT LEAKS (See COOLING SYSTEM )
- INSPECT LEAKAGE OF REFRIGERANT (See REPLACEMENT )
