Front Fender Garnish LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation is in the reverse order of the removal.
On the RH side, use the same procedures as on the LH side.

REMOVE FRONT FENDER GARNISH LH
1. Using a moulding remover, remove the 3 clips and front fender garnish.

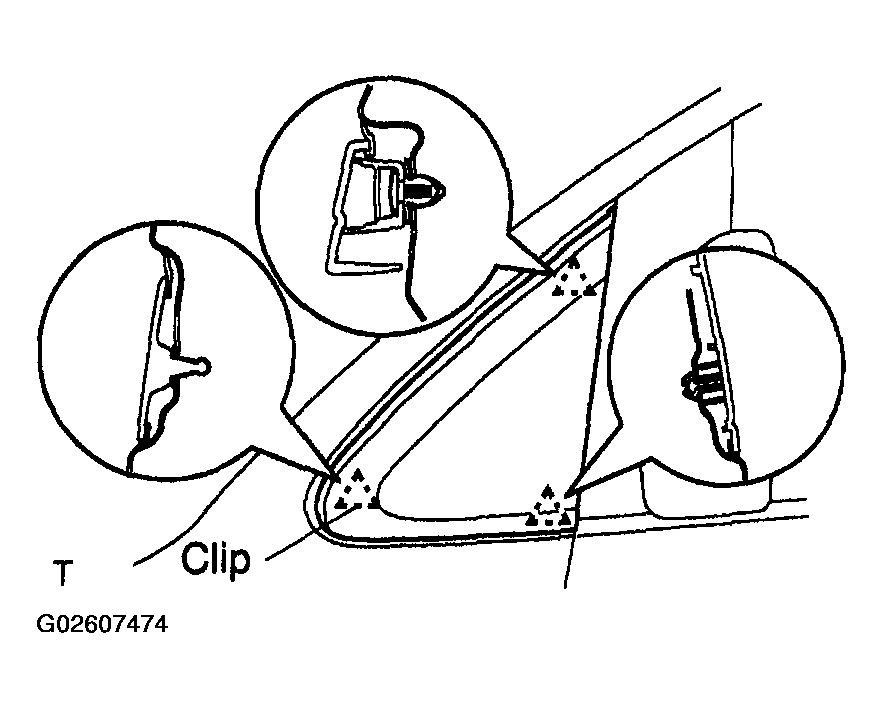

Fig 1: Removing 3 Clips And Front Fender Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
