Fuel Pump - Vehicles Without: High Pressure Exhaust Gas RECIRCULATION Valve Cooler (G2300840): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

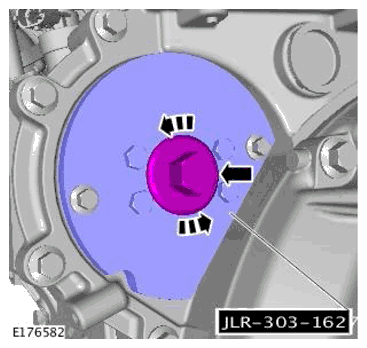

Remove the component from the special tool.

Special Tool(s): JLR-303-1627
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

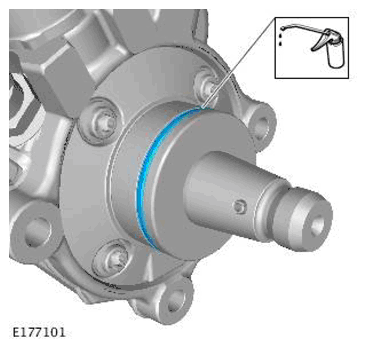

- Install a new fuel pump seal.
  Renew Part: Fuel pump O-ring seal Quantity: 1 .
- Lubricate the new seal with clean engine oil.
  Refer to: ENGINE - INGENIUM I4 2.0L DIESEL
CAUTION: Extreme cleanliness must be exercised when handling this component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new fuel pump retaining bolt.

Renew Part: Fuel pump drive sprocket nut Quantity: 1 .

Torque : 25 Nm
CAUTION: Make sure that the area around the component is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install 2 new fuel pump retaining bolts.

Renew Part: Fuel pump drive sprocket nut Quantity: 2 .

Torque : 25 Nm
CAUTION: Only tighten the nut finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new fuel pump sprocket retaining nut.

Special Tool(s): JLR-303-1627

Renew Part: Fuel pump drive sprocket nut Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen the bolts as indicated in the illustration.

Special Tool(s): JLR-303-1627
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

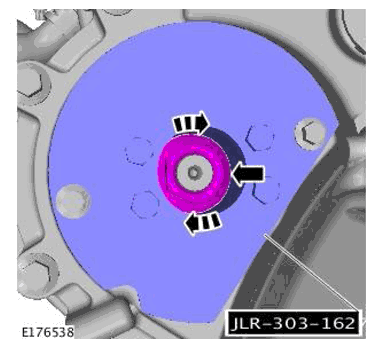

Tighten the fuel pump sprocket retaining nut.

Special Tool(s): JLR-303-1627

Torque : 80 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

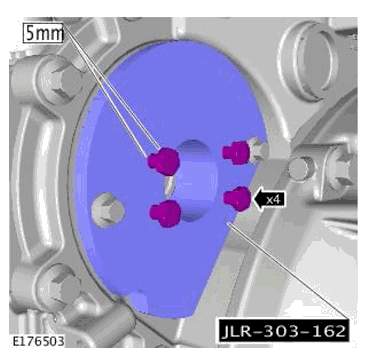

Remove the special tool bolts.

Special Tool(s): JLR-303-1627
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1627
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

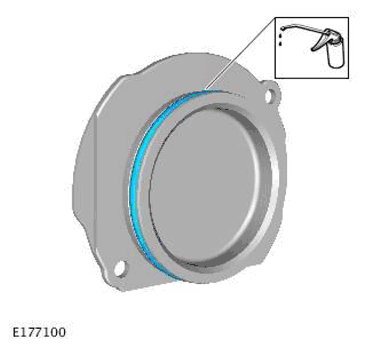

Install and lubricate a new fuel pump sprocket access cover seal with clean engine oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

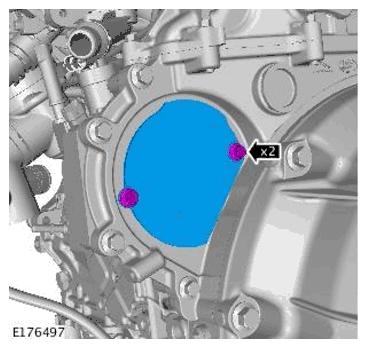

Install the fuel pump sprocket access cover.

Torque : 11 Nm
CAUTION: Make sure that the component is clean, free of foreign material and lubricant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new fuel rail high pressure supply pipe.

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

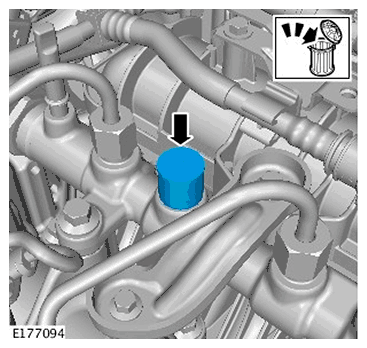

Remove and discard the blanking cap.
CAUTION: Only tighten the union finger-tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the fuel rail fuel supply line to the fuel pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

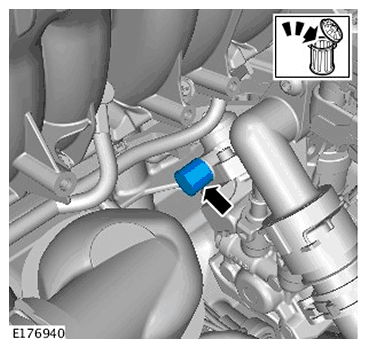

Remove and discard the blanking cap.
CAUTION: Only tighten the union finger-tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the fuel rail fuel supply line to the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel line retaining bracket bolt.

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line to the fuel pump union.

Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

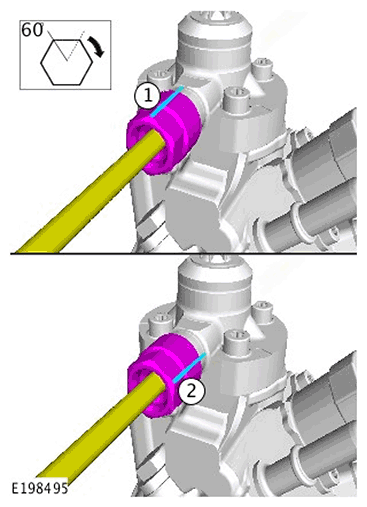

Tighten the high-pressure fuel line to the fuel pump union 60°. This is the equivalent of one flat on the fuel line union, as illustrated.

Torque : 62.°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the high-pressure fuel line to the fuel rail union.

Torque

Stage 1: 10 Nm

Stage 2: 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the wiring harness.

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

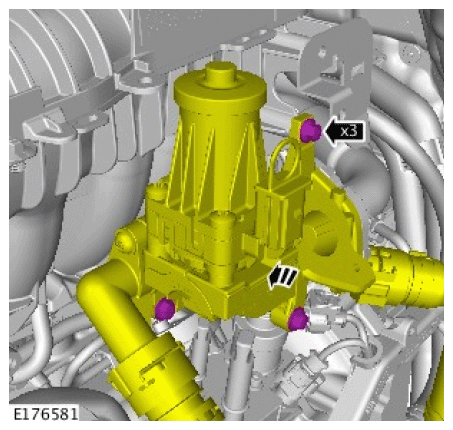

Attach the EGR valve.

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new gasket.

Renew Part: EGR pipe to exhaust manifold gasket Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Attach the EGR valve pipe.

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

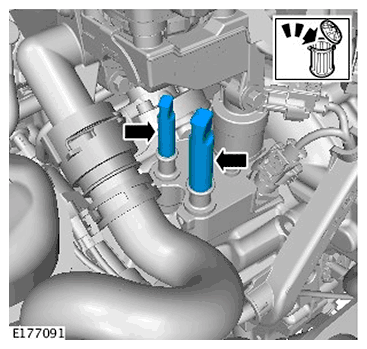

Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

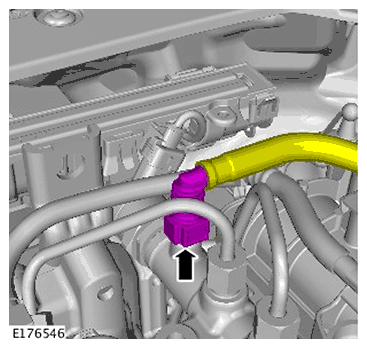

Connect the fuel pump fuel return line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

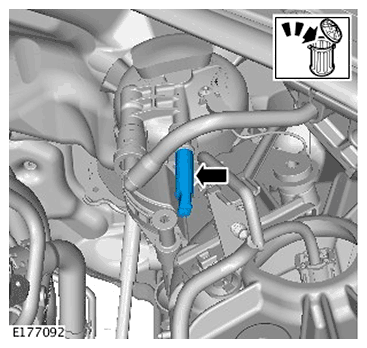

Remove and discard the blanking cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel pump fuel return line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

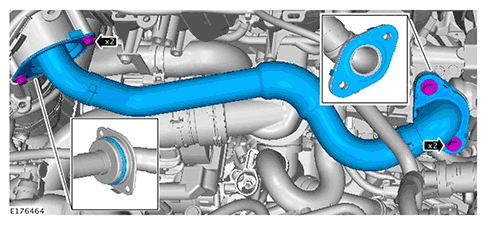

- Make sure that a new gasket and O-ring seal is installed.
  Renew Part: EGR outlet pipe to throttle body gasket Quantity: 1 .

  Renew Part: EGR pipe to intake manifold O-ring seal Quantity: 1 .

  Torque

  M6x20: 7 Nm

  M6x25: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

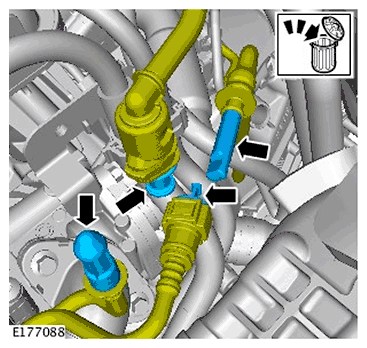

Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

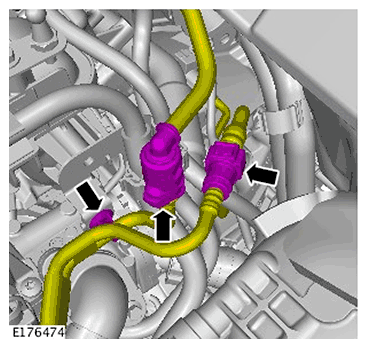

Connect the fuel supply and return lines.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

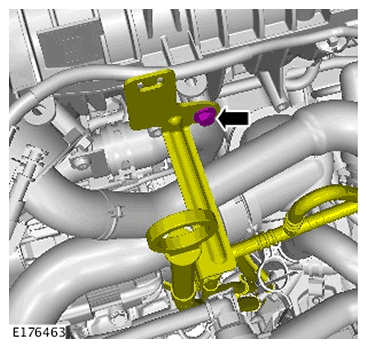

Attach the oil level indicator bracket.

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

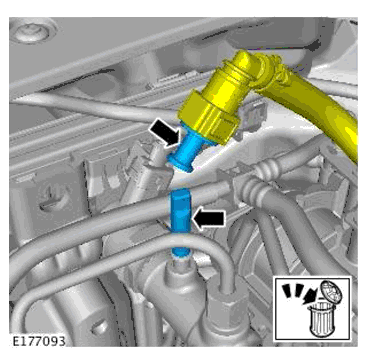

Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel rail fuel supply line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

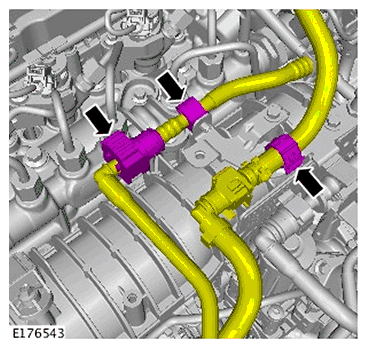

Attach the fuel lines.
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
CAUTION: Bleed the fuel system by cranking the engine to purge the air from the system.

Bleed the fuel system.

Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING or LOW-PRESSURE FUEL SYSTEM BLEEDING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
