Startup Battery Disconnect And Connect (G2020197)

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY AND BATTERY CHARGING HEALTH AND SAFETY PRECAUTIONS
  2. Obtain and record the audio unit preset radio frequencies.

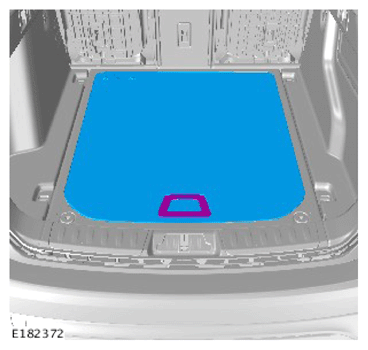

  3. G14292696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

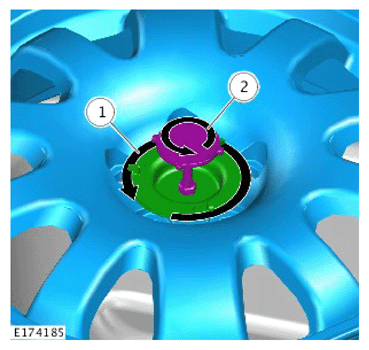

  4. NOTE: If equipped.
    G14292697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

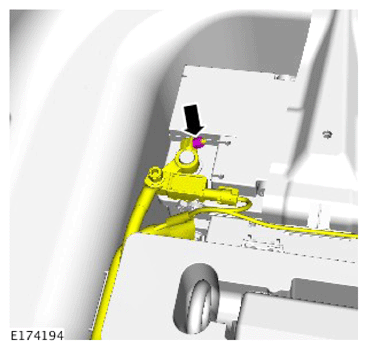

  5. G14292698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 6 Nm

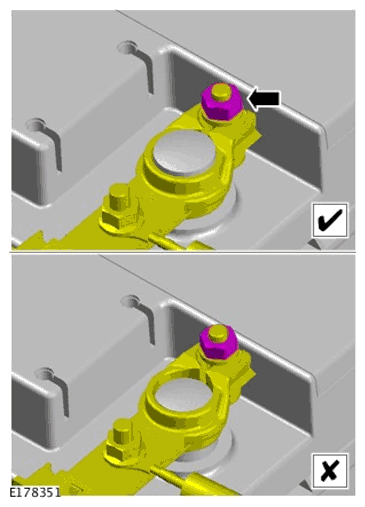

  6. CAUTION: Ensure the clamping lug on the BMS is below the top of the negative terminal post as shown.
    G11600993Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION: Make sure the battery monitoring system (BMS) electrical connector is connected to the module, before installing the BMS on to the battery terminal.

    To install, reverse the removal procedure.

  8. NOTE: This step is only necessary when installing a new component.

    Using Jaguar approved diagnostic equipment, reset the battery monitoring system.

  9. Door Window Motor Initialization
  10. Enter the audio unit preset radio frequencies.
  11. Reset the clock to the correct time.
  12. Start the engine and allow to idle until the engine reaches normal operating temperature.
  13. Switch the engine off.
