Fuel Injectors (G1867850): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new fuel injector seal.

Renew Part: Fuel injector washer(s) Quantity: 4 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel injector.
Repeat Step 2 for the remaining fuel injectors.
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

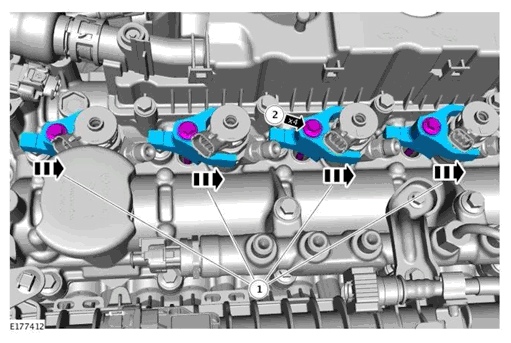

Install the fuel injector retaining clamps.

Renew Part: Fuel injector clamp bolts Quantity: 4 .

Torque

Stage 1: 11 Nm

Stage 2: 162°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install new high pressure fuel pipes.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 4 .

Torque

Stage 1: 10 Nm

Stage 2: 62°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

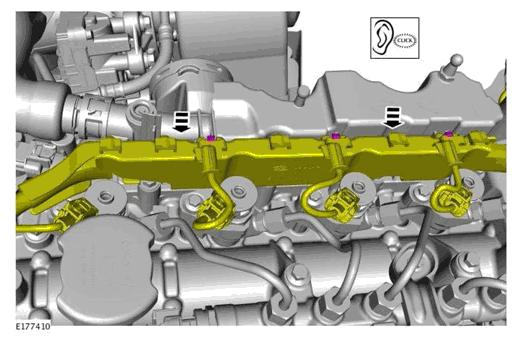

Install the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

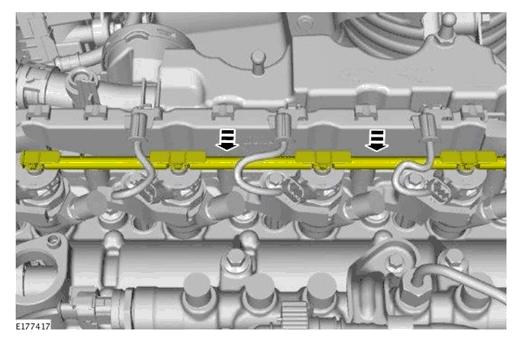

Position the fuel injector fuel return line to the fuel injectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

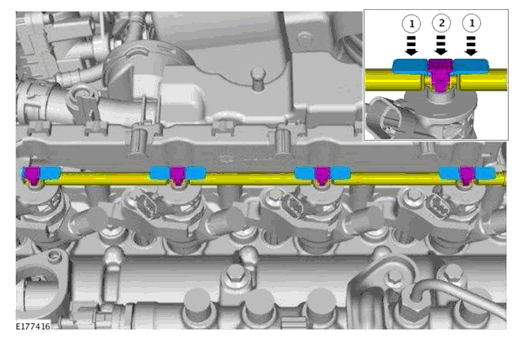

Connect the fuel injector fuel return line to the fuel injectors.
CAUTION: Make sure that the electrical connectors are installed correctly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

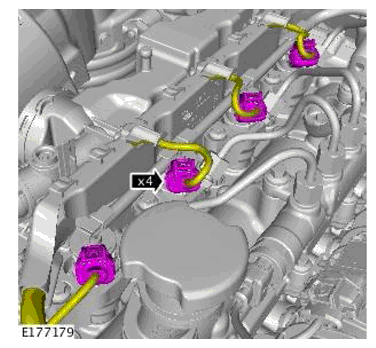

- Connect the 4 fuel injector electrical connectors.
- Gently pull each fuel injector electrical connector to make sure it has been installed correctly.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
CAUTION: Bleed the fuel system by cranking the engine to purge the air from the system.

Bleed the fuel system.

Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING or LOW-PRESSURE FUEL SYSTEM BLEEDING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Use the Jaguar Land Rover approved diagnostic equipment to configure the fuel injectors.
General Equipment: Jaguar Land Rover approved diagnostic equipment
