Roof Opening Panel Blind Motor Cables (G2578202): Installation

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

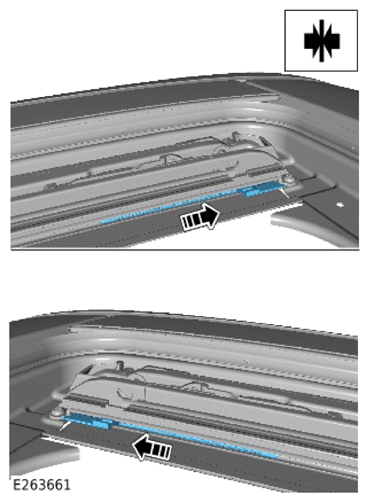

Install the 2 roof blind motor cables into the frame assembly guides in the direction illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 inner locators to the frame assembly guides.
- Install and tighten the 4 bolts.
  Torque : 3.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

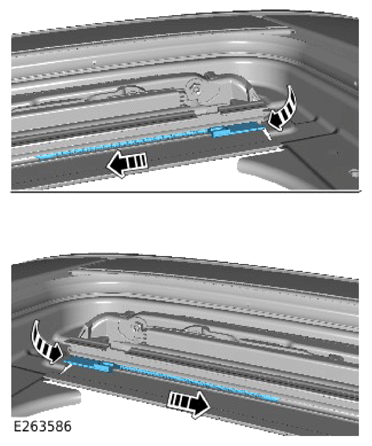

Use a suitable tool to push the roof blind motor cables all the way to the front of the frame to a hard stop as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the roof blind motor.
- Install and tighten the 3 bolts.
  Torque : 3 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the roof blind motor electrical connector.
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Operate the roof blind motor moving the cables back approximately 480 mm .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

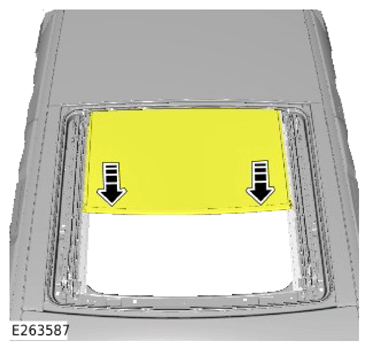

Reposition the roof blind into the correct location in the frame assembly.
NOTE: An audible click will be heard when correctly engaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

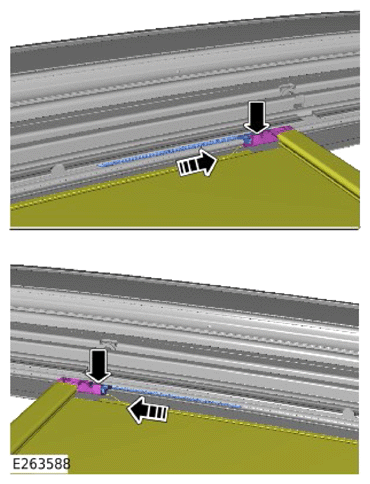

- Install the roof blind to the 2 cable plates.
- Install the 2 slide shoe clips into the correct location.
Perform roof opening panel motor synchronization procedure.
Refer to: MOTOR SYNCHRONIZATION
Operate the roof blind assembly for 3 cycles to make sure the material has no distortions and the blind is installed correctly.
Install the roof opening panel air deflector.
Refer to: ROOF OPENING PANEL AIR DEFLECTOR
Install the roof opening panel glass.
Refer to: ROOF OPENING PANEL GLASS
Install the headliner.
Refer to: HEADLINER
