Removal And Installation: Removal

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")

(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD ")
Remove the crash pad lower panel.
(Refer to Body - " CRASH PAD LOWER PANEL ")

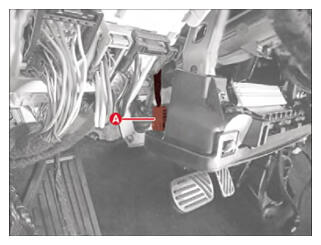

Disconnect the Knee Airbag (KAB) module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

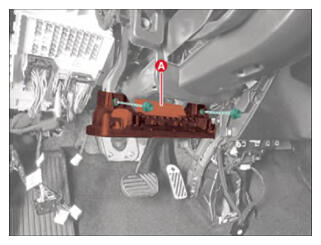

Remove the Knee Airbag (KAB) module (A) after removing the nuts.
Tightening torque:

5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb.ft, 52.1 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
