Auxiliary 12 V Battery

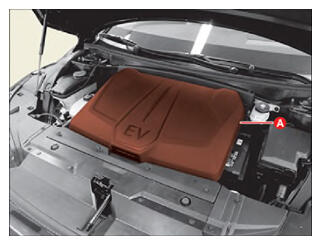

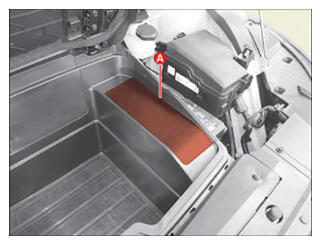

Open the front trunk (A).

Courtesy of KIA MOTORS AMERICA, INC.

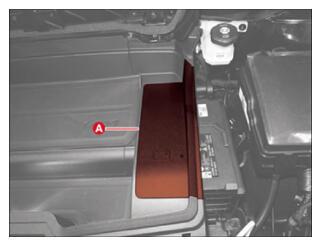

Open the service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

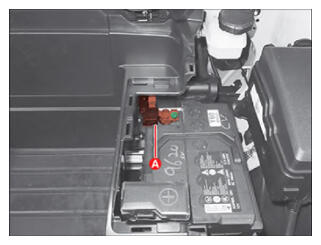

Disconnect the auxiliary 12 V battery negative (-) terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

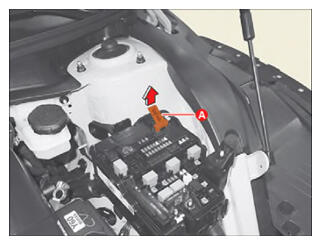

Disconnect the service interlock connector (A).
WARNING: Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The service interlock connector cannot be completely removed.

Courtesy of KIA MOTORS AMERICA, INC.

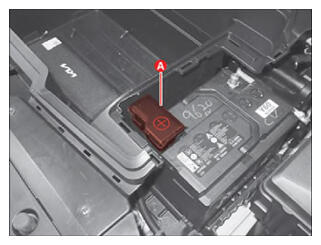

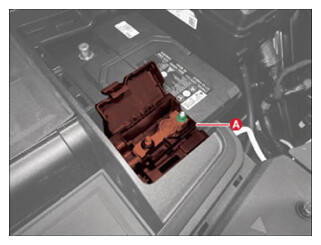

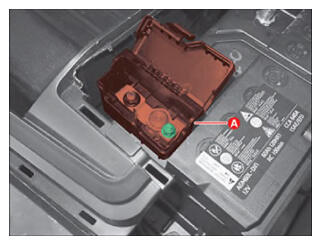

Open the auxiliary 12 V battery positive (+) terminal cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

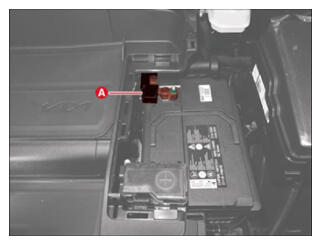

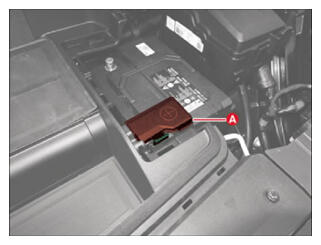

Disconnect the auxiliary 12 V battery positive (+) terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

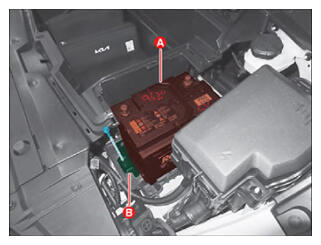

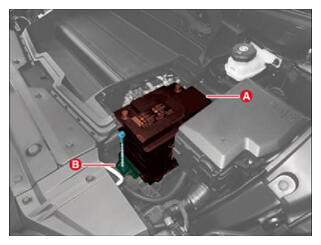

Remove the auxiliary 12 V battery (A) after removing the clamp (B).
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
