Crash Pad Lower Panel

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD  ")

    (Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD  ")

  2. Remove the crash pad side cover [LH].

    (Refer to Crash Pad -  "CRASH PAD SIDE COVER ")

  3. Remove the crash pad lower panel (A) after removing the screws.

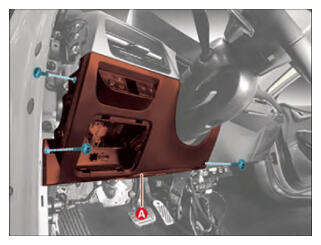

    G15811935Courtesy of KIA MOTORS AMERICA, INC.

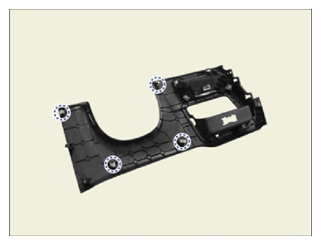

    G15811936Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position: Dotted Circles

  4. Disconnect the crash pad side switch connector (A).

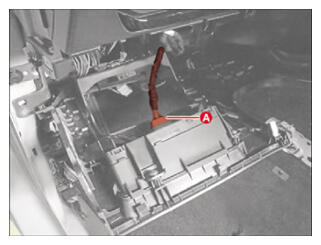

    G15811938Courtesy of KIA MOTORS AMERICA, INC.

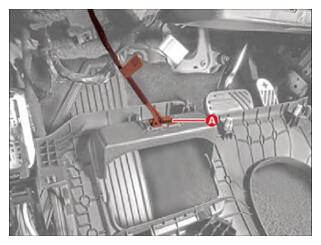

  5. Disconnect the diagnostic connector (A).
G15811939Courtesy of KIA MOTORS AMERICA, INC.
