Body, Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

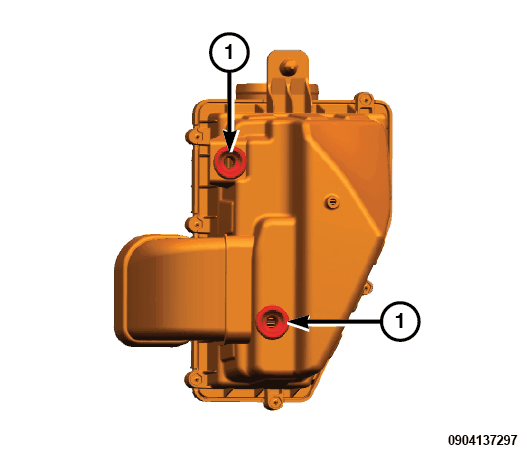

GC0186732Courtesy of CHRYSLER GROUP, LLC
  1. Lubricate the rubber mount sockets (1) on the air cleaner body with Mopar® Rubber Bushing Installation Lube.
    GC0186667Courtesy of CHRYSLER GROUP, LLC
  2. Lubricate the rubber mount socket (1) on the right engine mount with Mopar® Rubber Bushing Installation Lube.

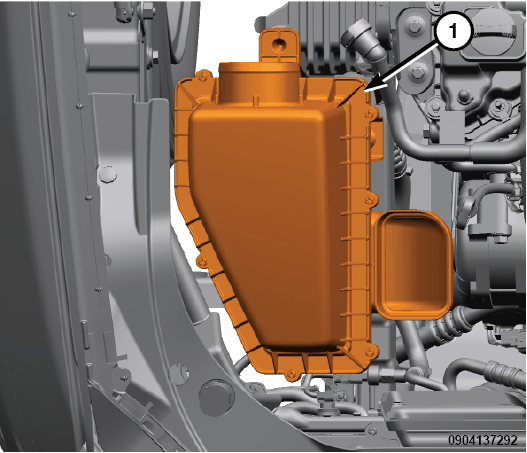

    GC0186655Courtesy of CHRYSLER GROUP, LLC
  3. Align the rubber mount sockets and ball studs of the air cleaner body (1) and press firmly downwards.
  4. Install the resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
  5. Install the clean air hose. Refer to HOSE, CLEAN AIR, INSTALLATION .
