Resonator, Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

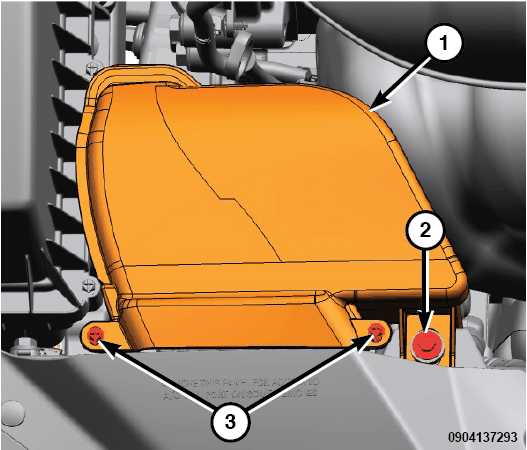

GC0186592Courtesy of CHRYSLER GROUP, LLC
  1. Position the resonator (1) between the air inlet tube and the air cleaner body.
  2. Install the bolt (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install and securely tighten the screws (3).
