Engine Block: Crankshaft: Removal

  1. Remove the engine from the vehicle and mount the engine in the maintenance stand. Refer to 2.0L ENGINE, REMOVAL REMOVAL .
  2. Remove the ignition coils and spark plugs. Refer to SPARK PLUG, REMOVAL .
  3. Remove the rear crankshaft oil seal retainer. Refer to RETAINER, CRANKSHAFT REAR OIL SEAL, REMOVAL .
  4. Remove the crankshaft sprocket. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL  .
  5. Remove the oil pump pick-up and windage tray. Refer to PAN, OIL, REMOVAL .
  6. If piston or connecting rod replacement is necessary, remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL .
  7. Remove the crankshaft position sensor. Refer to SENSOR, CRANKSHAFT POSITION, REMOVAL .
    GC0181522Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    DO NOT use a number stamp or a punch to mark connecting rods. Damage to connecting rod could occur.

    NOTE:

    Connecting rods and bearing caps are not interchangeable and should be marked before removing to ensure correct reassembly.

  8. Mark connecting rod and bearing cap positions (1) using a permanent ink marker or scribe tool.
    GC0182325Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Special care is necessary when handling the joint separating upper and lower halves of the connecting rod. This fractured surface is sensitive and easily damaged, preventing proper reassembly of the cap to the rod. Avoid touching the fractured surfaces and contact with any other work surfaces. Under no circumstances should these surfaces be brushed. It is critical that the joint not be altered in any way during disassembly and assembly.

  9. Remove all connecting rod cap bolts (2) and caps (1) with bearings. Discard the cap bolts (2).
    GC0183585Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    DO NOT use a number stamp or a punch to mark main bearing caps, as damage to main bearings could occur.

    NOTE:

    Main bearing caps (1) are not interchangeable and are marked to insure correct assembly.

  10. Mark the main bearing cap positions (1) using a permanent ink marker or a scribe tool.
    GC0181890Courtesy of CHRYSLER GROUP, LLC
  11. Remove the ten main bearing cap bolts (1) and ten main bearing tie bolts (2).
    GC0182045Courtesy of CHRYSLER GROUP, LLC
  12. Remove the main bearing caps (1) with bearings (2).
    GC0183374Courtesy of CHRYSLER GROUP, LLC
  13. Lift the crankshaft (1) from the cylinder block. Do not damage the main bearings or journals when removing the crankshaft.
    GC0181820Courtesy of CHRYSLER GROUP, LLC
  14. If required, remove the thrust bearings (1).
    GC0183684Courtesy of CHRYSLER GROUP, LLC
  15. If required, remove the upper main bearings (1).

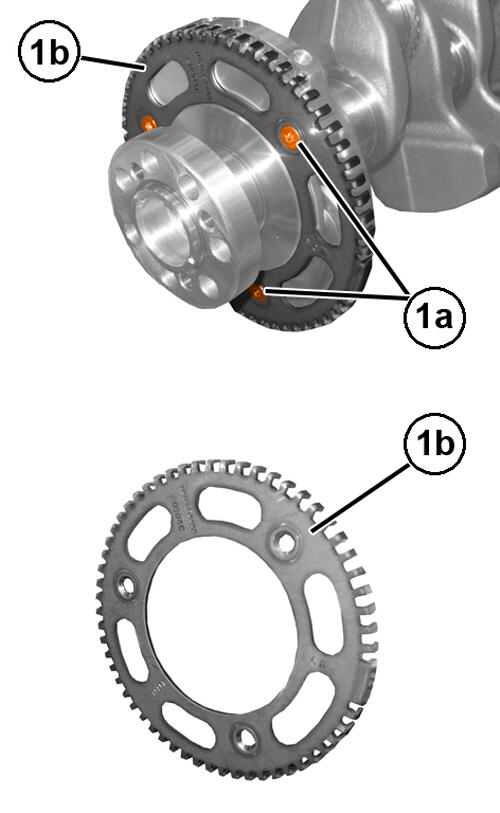

    GC0181029Courtesy of CHRYSLER GROUP, LLC
  16. If required, remove the screws (1a) and remove the target wheel (1b) from the crankshaft.
