Pipe, Exhaust CROSSUNDER: Removal

WARNING:

The normal operating temperature of the exhaust system is very high. Therefore, never attempt to service any part of the exhaust system until it is cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operation time.

  1. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  2. Remove the exhaust resonator. Refer to RESONATOR, EXHAUST, REMOVAL .
  3. Remove the rear engine insulator and bracket. Refer to INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL .
    GC0186894Courtesy of CHRYSLER GROUP, LLC

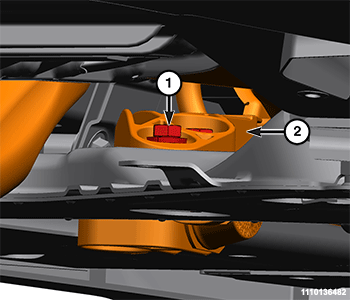

  4. Remove the front cross-under pipe isolator bolts (1).
    GC0187030Courtesy of CHRYSLER GROUP, LLC

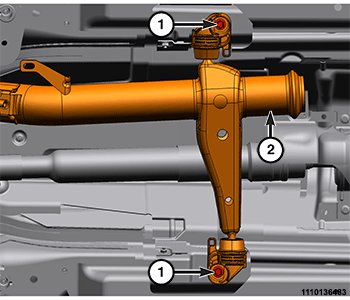

  5. Remove the rear cross-under pipe isolator bolts (1).
    GC0186487Courtesy of CHRYSLER GROUP, LLC

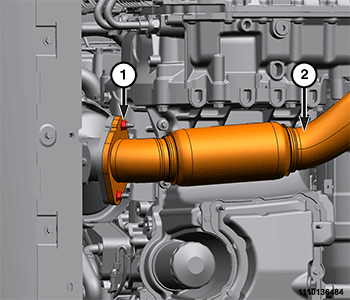

  6. Remove the cross-under pipe flange nuts (1).
  7. Remove the cross-under pipe (2) from the vehicle.
    GC0187120Courtesy of CHRYSLER GROUP, LLC

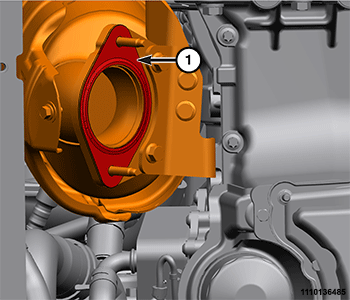

  8. Remove and discard the gasket (1).
