Resonator, Exhaust: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL .

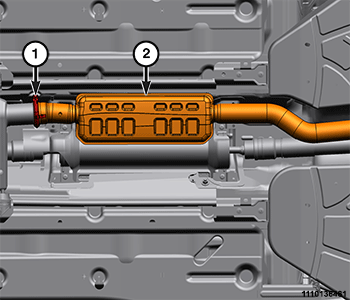

    GC0187071Courtesy of CHRYSLER GROUP, LLC
  3. Loosen the exhaust resonator clamp nut (1) and remove the exhaust resonator (2).
