Removal And Installation

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  3. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  4. Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
  5. Remove the turbocharger outlet hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION  .

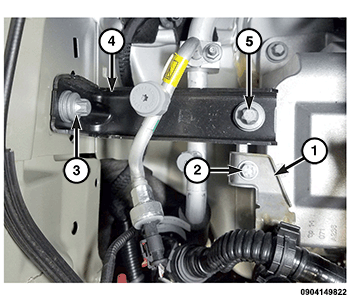

    GC0188934Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolt (2) and reposition the wiring bracket (1).
  7. Remove the bolts (3, 5) and remove the side reinforcement bracket (4).

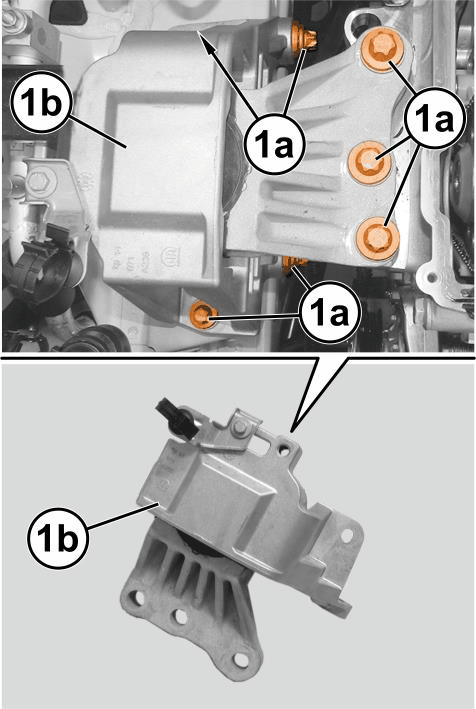

    GC0208052Courtesy of CHRYSLER GROUP, LLC
  8. Support the powertrain with a suitable jack.
  9. Remove the bolts (1a) and remove the right engine mount insulator (1b).

INSTALLATION

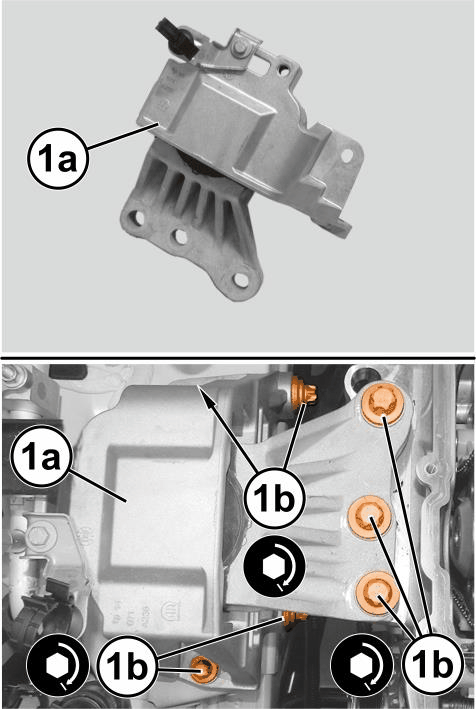

GC0208051Courtesy of CHRYSLER GROUP, LLC
  1. Install the right engine mount insulator (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  2. Install the side reinforcement bracket and securely tighten the bolts.
  3. Install the wiring bracket and securely tighten the bolt.
  4. Connect the negative battery cable.
  5. Install the turbocharger outlet hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION  .
  6. Install the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
  7. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  8. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  9. Connect the negative battery cable.
