Removal And Installation

REMOVAL

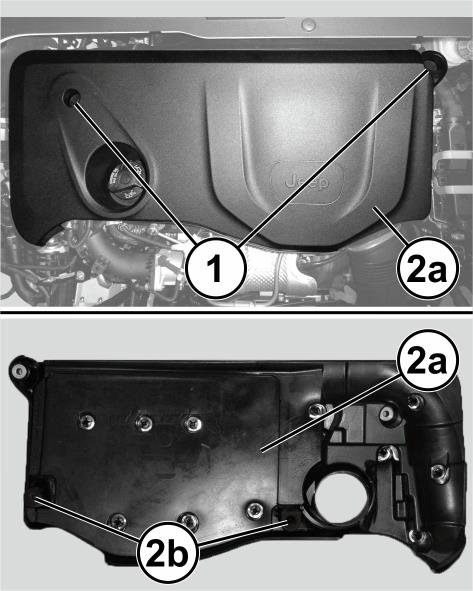

GC0189248Courtesy of CHRYSLER GROUP, LLC
  1. Remove the bolts (1) from the engine cover (2a).
  2. Release the retainers (2b) and remove the engine cover (2a).

INSTALLATION

  1. Locate the retainers and install the engine cover.
  2. Securely tighten the bolts.
