Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

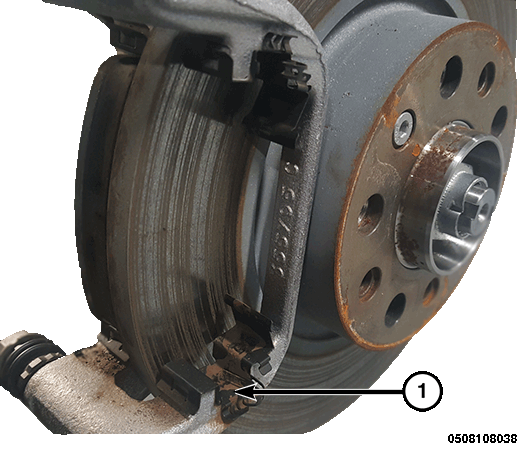

- Install the new shims (1) on the caliper bracket.

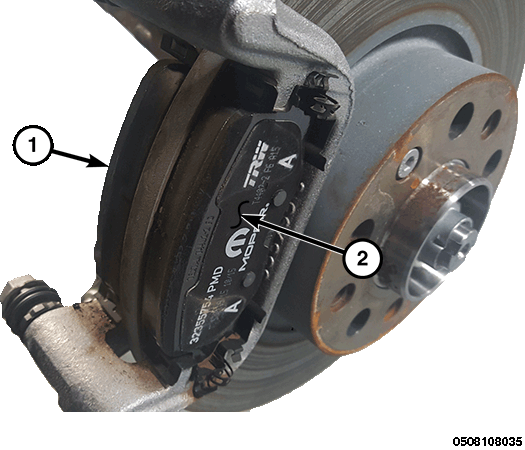

- Install the new brake pads (1 and 2) to the caliper bracket.NOTE:
The inner pad is marked by the letter "B" stamped on the ends for attachment to slide pegs.
NOTE:The outer pad is marked by the letters "A" stamped on the ends for attachment to slide pegs.
NOTE:Connect the scan tool to the vehicle and go to the "unit BSM / EPB". Go to the menu "actuators" and launch the procedure "maintenance mode".
NOTE:Run the procedure "setback piston brake calipers".
NOTE:At the end of the brake caliper assembly, launch the procedure "check assembly electric parking brake".
- Install the rear caliper. Refer to CALIPER, DISC BRAKE, REAR, INSTALLATION .
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
- Pump the brake pedal several times to set the pads to the caliper and brake rotor.CAUTION:
When NEW brake pads have been installed, keep in mind that braking effectiveness might be somewhat reduced during the first brake applications following installation.
- Check and adjust the brake fluid level in the reservoir.
- Road test the vehicle making several stops to wear off any foreign material on the brakes and to seat the brake pads.
