Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .
  3. Remove the hub and bearing. Refer to HUB AND BEARING, REMOVAL  .
    GC0165653Courtesy of CHRYSLER GROUP, LLC
  4. Use (special tool #C-4150A, Press, Ball Joint) to remove the outer tie rod end (1b) from the steering knuckle. Refer to REMOVAL, OUTER TIE ROD .
  5. Remove the wheel speed sensor to knuckle bolt and remove the wheel speed sensor (2).
  6. Remove the dust shield to knuckle bolts and remove the dust shield.
    GC0189498Courtesy of CHRYSLER GROUP, LLC
  7. Remove the lower control arm to knuckle bolt (1) from the knuckle (4).

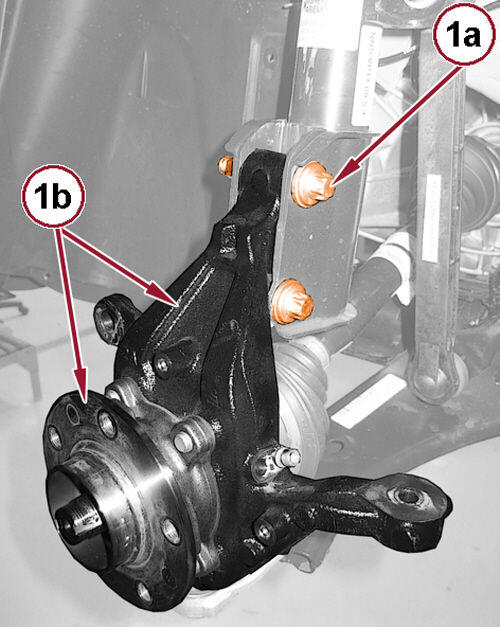

    GC0165109Courtesy of CHRYSLER GROUP, LLC
  8. Remove the strut to knuckle bolts (1a).
  9. Remove the steering knuckle (1b) from the vehicle.
