Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

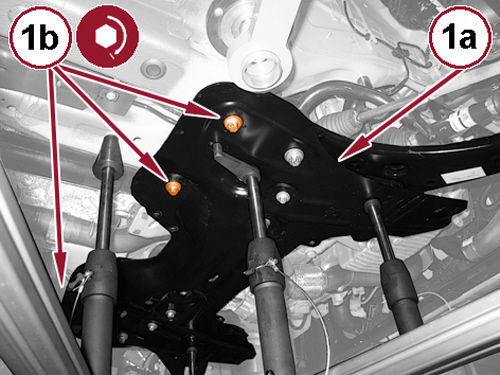

GC0163266Courtesy of CHRYSLER GROUP, LLC
  1. If needed, install the following components:
  2. With the tools used during removal, install the crossmember (1a) and tighten the fasteners (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

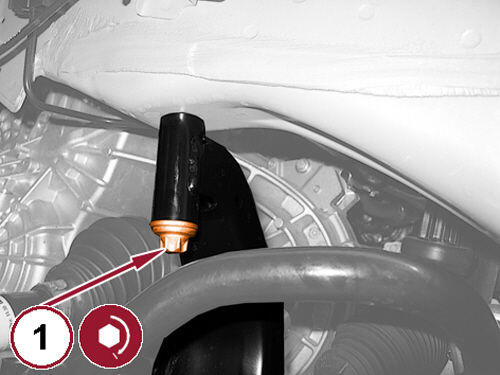

    GC0163346Courtesy of CHRYSLER GROUP, LLC
  3. Tighten the fasteners (1) attaching the crossmember to the left and right side panels to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

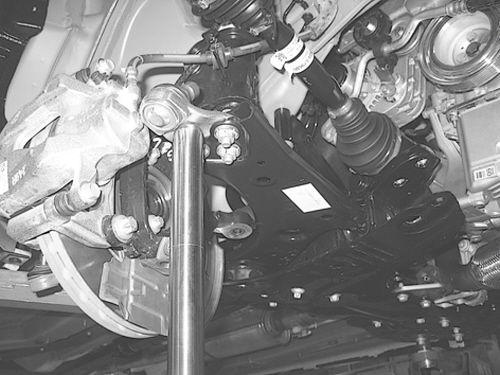

    GC0163027Courtesy of CHRYSLER GROUP, LLC
  4. Remove the crossmember lifting device.
  5. Place a suitable jack under the lower control arm as shown in the figure.
    GC0165235Courtesy of CHRYSLER GROUP, LLC
  6. Tighten the steering gear to the suspension bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  7. Tighten the stabilizer bar to the suspension bolts to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  8. Tighten the lower control arm to the suspension bolts to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

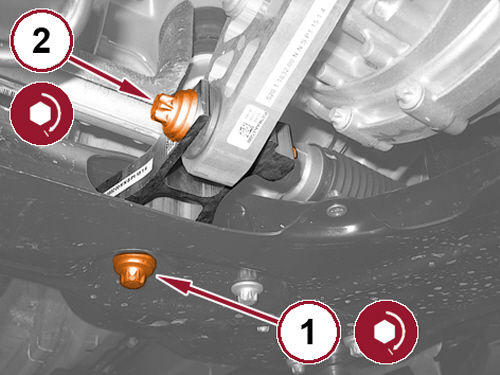

  9. Tighten the reaction rod bolt (1) to the crossmember to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  10. Tighten the reaction rod bolt (2) to the transmission bracket to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0165034Courtesy of CHRYSLER GROUP, LLC

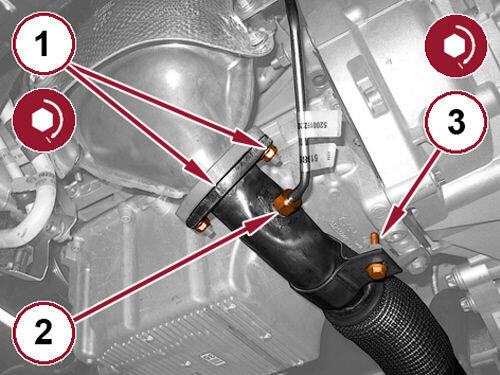

  11. Connect the exhaust pipe complete with NEW  gasket to the catalytic converter and tighten the NEW  fasteners (1) to the proper specification. Refer to TORQUE SPECIFICATIONS, 1.3L or TORQUE SPECIFICATIONS, 2.4L .
  12. Install and tighten the exhaust gas pressure tube fitting downstream of the Diesel Particulate Filter (DPF) (2).
  13. Install the bolt (3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS, 1.3L or TORQUE SPECIFICATIONS, 2.4L .
    GC0164860Courtesy of CHRYSLER GROUP, LLC

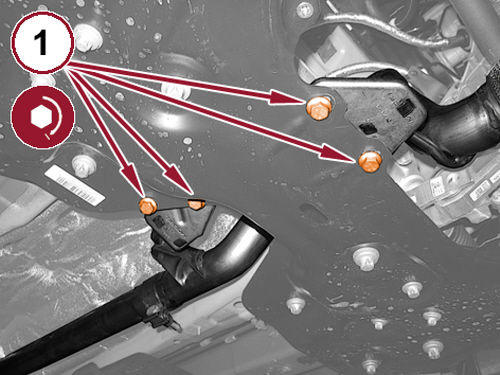

  14. Install the fasteners (1) attaching the exhaust pipe support brackets to the suspension crossmember and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS, 1.3L or TORQUE SPECIFICATIONS, 2.4L .

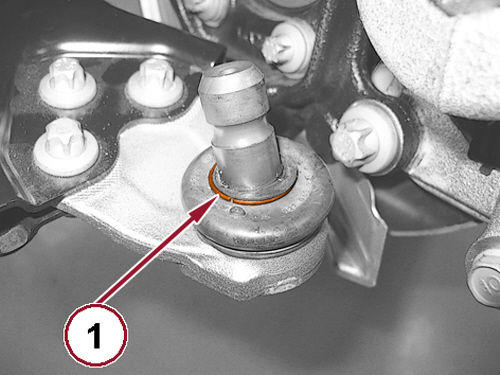

    GC0165169Courtesy of CHRYSLER GROUP, LLC
  15. Check the integrity of the lower ball joint boot (1).
    GC0165417Courtesy of CHRYSLER GROUP, LLC

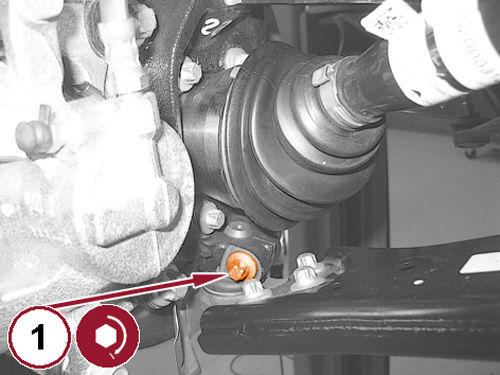

  16. Attach the lower control arms to the steering knuckles and tighten the bolts (1) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
    GC0164672Courtesy of CHRYSLER GROUP, LLC

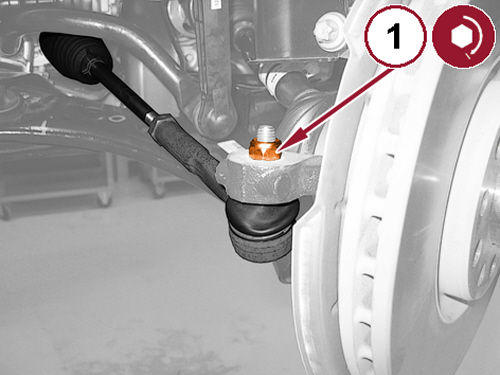

  17. Connect the outer tie rod ends to the steering knuckles and install NEW  nuts (1).
  18. Tighten the nuts (1) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
    GC0163632Courtesy of CHRYSLER GROUP, LLC

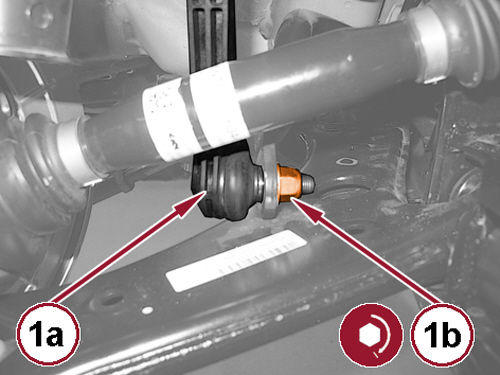

  19. Install the stabilizer links (1a) and install NEW  nuts (1b).
  20. Tighten the nuts (1b) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
    GC0165091Courtesy of CHRYSLER GROUP, LLC

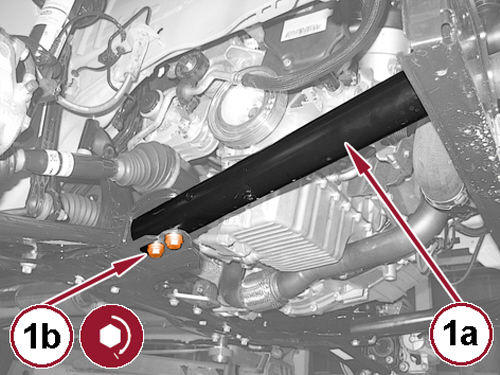

  21. Install the lower load beams (1a) and install the bolts (1b).
  22. Tighten the bolts (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

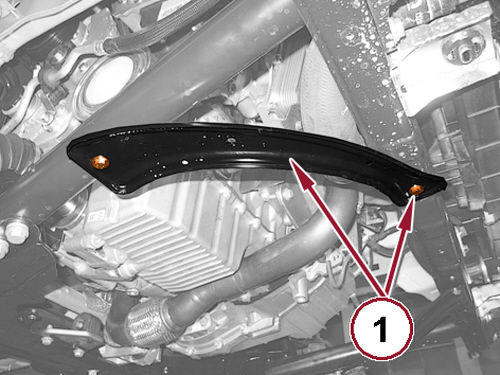

    GC0164648Courtesy of CHRYSLER GROUP, LLC
  23. If equipped, install the reinforcement bracket (1) and install the bolts.

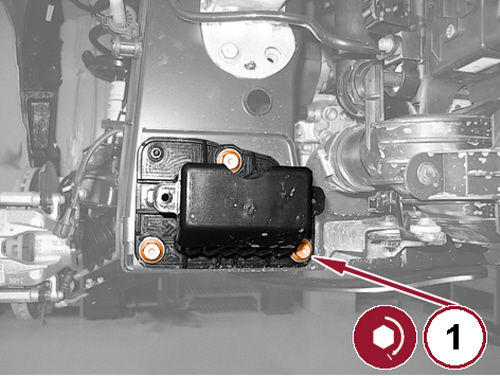

    GC0165524Courtesy of CHRYSLER GROUP, LLC
  24. Install the lower load beam extensions and install the bolts (1).
  25. Tighten the bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0165505Courtesy of CHRYSLER GROUP, LLC

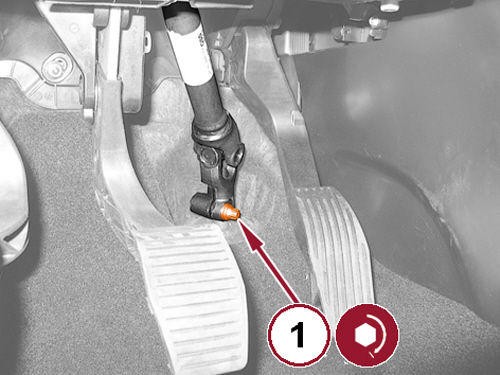

  26. Install the steering shaft onto the steering gear and tighten the NEW  bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  27. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION  .
  28. Install the belly pan. Refer to BELLY PAN, INSTALLATION  .
  29. Install the front wheels. Refer to INSTALLATION .
  30. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  31. Check and adjust alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
