Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

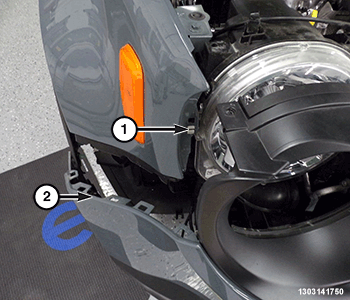

GC0180819Courtesy of CHRYSLER GROUP, LLC
  1. Position the front fascia to the vehicle and align the grill to the metal clip (1) and insert fully. Repeat on the opposite side.
  2. Position the sides of the front fascia (2) to the fender bracket and insert fully. Repeat on the opposite side.

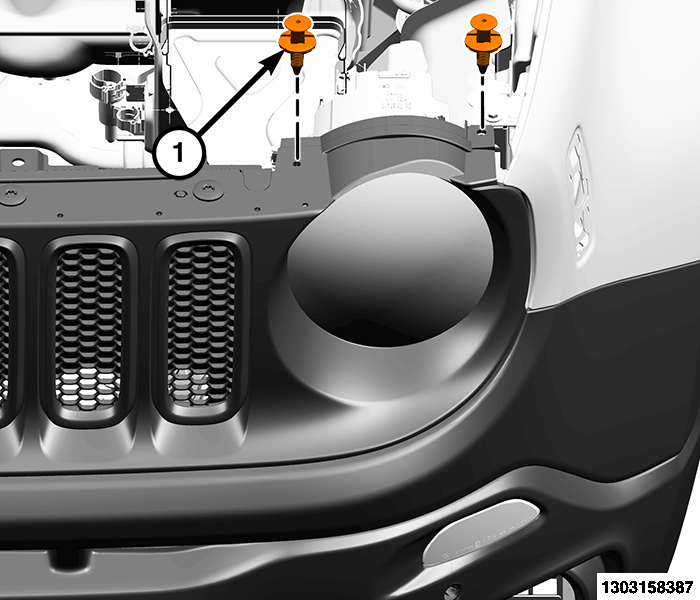

    GC0188936Courtesy of CHRYSLER GROUP, LLC
  3. Install the fasteners (1) above each headlight assembly.

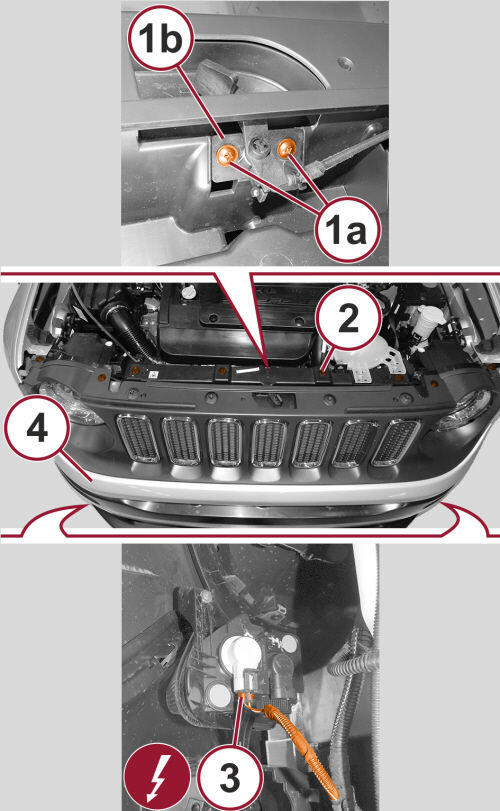

    GC0166157Courtesy of CHRYSLER GROUP, LLC
  4. With the front fascia (4) positioned correctly, install the screws (2). Tighten the screws securely.
  5. Position the release lever (1b) and install the screws (1a). Tighten the screws securely.
  6. Connect the wire harness connectors (3) to the head lamps.
  7. If equipped, connect the wire harness connectors to the fog lamps.

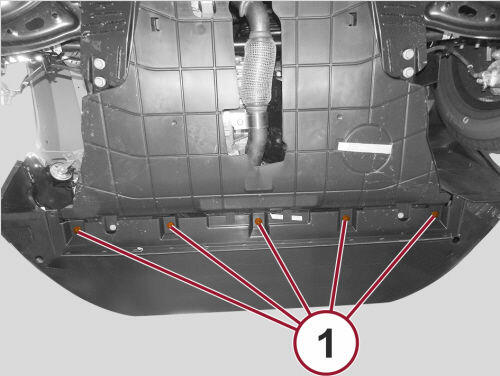

    GC0165232Courtesy of CHRYSLER GROUP, LLC
  8. From under the vehicle, install the screws (1) and tighten securely.

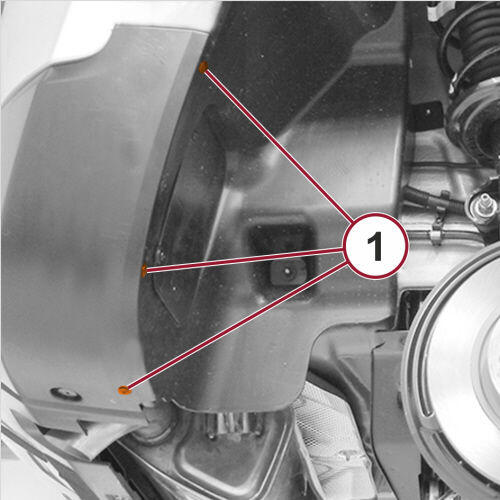

    GC0165464Courtesy of CHRYSLER GROUP, LLC
  9. Install the screws (1) securing the front wheel splash shields to the front fascia, and tighten securely.

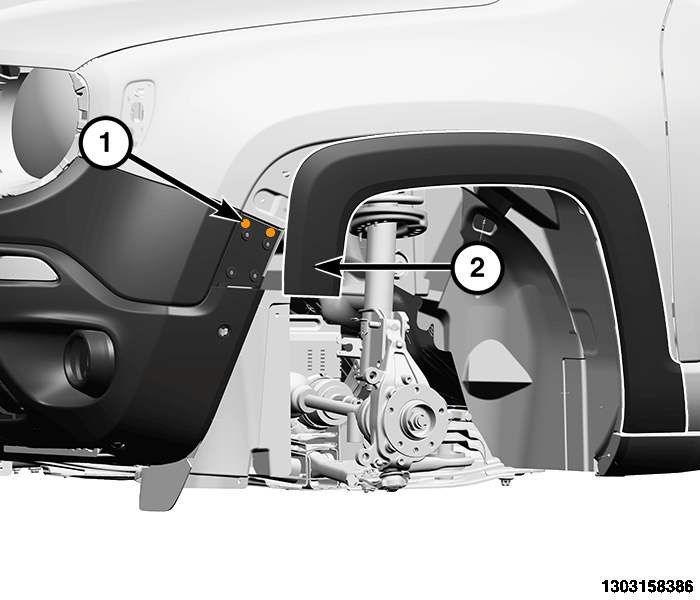

    GC0190337Courtesy of CHRYSLER GROUP, LLC
  10. Install the screws (1) on each side of the vehicle and tighten securely.
  11. Position the front wheel moldings (2) back and hand tap to seat the retaining clips fully.
  12. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
