Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL  .
  2. Remove the fog lamps and trim. Refer to FRONT FOG LAMP, REMOVAL .
  3. Remove the turn signal lamp. Refer to LAMP, PARK AND TURN SIGNAL, REMOVAL .
  4. Remove the fascia closeout covers .
  5. Remove the grille. Refer to GRILLE, REMOVAL .
  6. Remove the grille reinforcement bracket.
    G00588833Courtesy of CHRYSLER GROUP, LLC

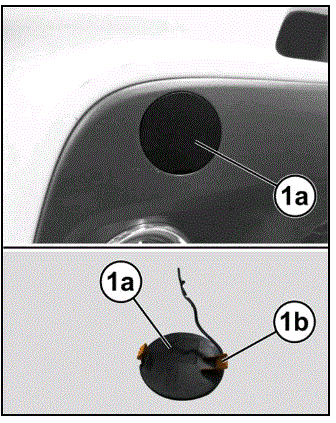

  7. Remove the tow hook cap (1a) releasing its retainers (1b).
    G00588834Courtesy of CHRYSLER GROUP, LLC

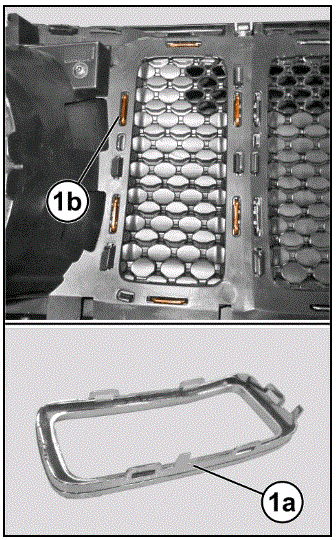

  8. Release and remove the top grille trim (1a) on the fascia by releasing the retaining clips (1b).
    G00588835Courtesy of CHRYSLER GROUP, LLC

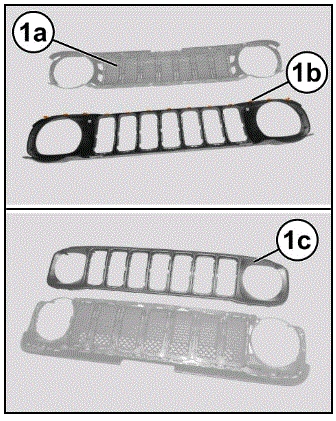

  9. Release and remove the front grille trim (1a) on the fascia by releasing the retaining clips (1b) and separate the front casing (1c) from the top grille.
    G00588836Courtesy of CHRYSLER GROUP, LLC

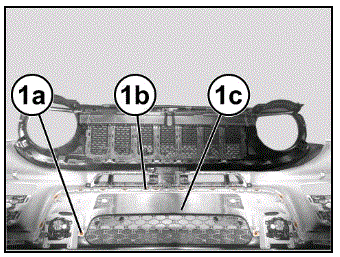

  10. Operating on both sides, remove the screws (1a) and release the retainers (1b) from the front fascia (1c).
    G00588837Courtesy of CHRYSLER GROUP, LLC

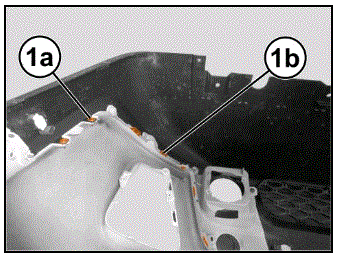

  11. Remove the screws (1a) and release the retainers (1b) from the front fascia (1c).
    G00588838Courtesy of CHRYSLER GROUP, LLC

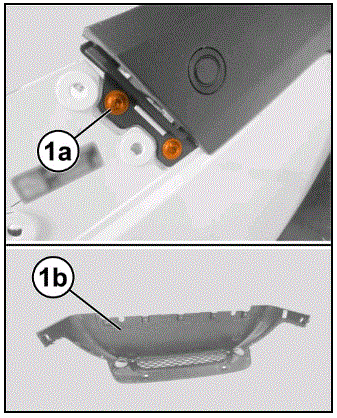

  12. Working on both sides, remove the screws (1a) and remove the bottom grille (1b).
    G00588839Courtesy of CHRYSLER GROUP, LLC

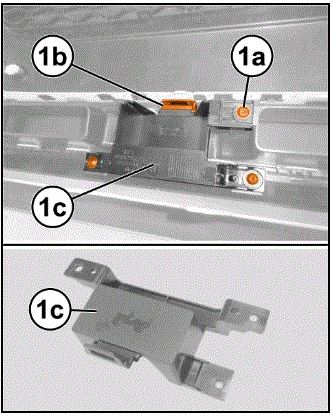

  13. Remove the screws (1a) and release the fascia logo (1c) from the clip (1b).
    G00588840Courtesy of CHRYSLER GROUP, LLC

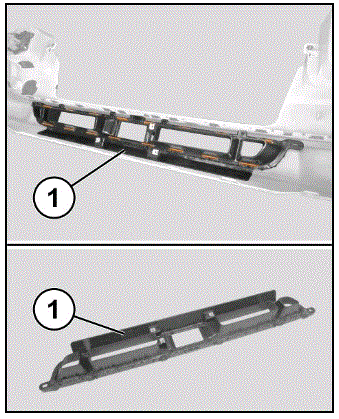

  14. Working on the inside of the fascia, release and remove the air vent (1) from the retainer clips.
  15. Remove the parking sensors if necessary.
