Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

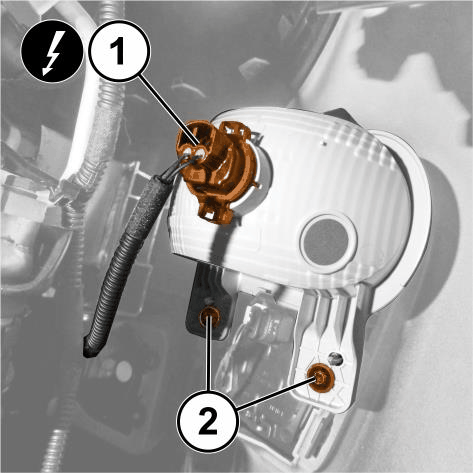

    GC0208244Courtesy of CHRYSLER GROUP, LLC
  3. Working from within the front fascia, disconnect the wire harness connector (1) from the turn signal lamp assembly.
  4. Remove the fasteners (2) and remove the turn signal lamp assembly from the vehicle.
