Engine And DDCT - Fwd: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
  3. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  4. Remove the front wheels. Refer to REMOVAL .
  5. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  6. Remove the front wheel splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  7. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL  .
  8. Remove the battery and battery tray. Refer to TRAY, BATTERY, REMOVAL .
  9. Drain the transmission fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  10. Drain the engine coolant system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 1.3L .
  11. Recover the A/C refrigerant. Refer to R-1234YF REFRIGERANT SYSTEM RECOVERY .
  12. Remove the left and right halfshafts. Refer to FRONT, REMOVAL AND INSTALLATION and REAR, REMOVAL AND INSTALLATION .
  13. Remove the headlamp mounting crossmember. Refer to CROSSMEMBER, HEADLAMP MOUNTING, REMOVAL AND INSTALLATION .
  14. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL  .
    G00594613Courtesy of CHRYSLER GROUP, LLC

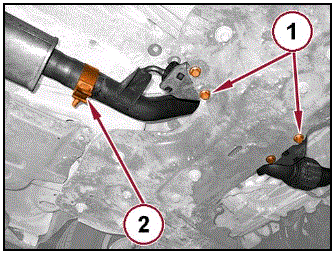

  15. Loosen the exhaust pipe support bracket bolts (1).
  16. Loosen the exhaust pipe collar connecting nut (2).
    GC0208318Courtesy of CHRYSLER GROUP, LLC
  17. Disconnect the dual clutch gearbox electric pump wire harness connector (1) and release the wiring from the bracket on the transmission.
    G00594614Courtesy of CHRYSLER GROUP, LLC

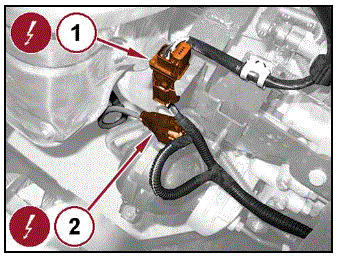

  18. Disconnect the upper oxygen sensor wire harness connector (1).
  19. Disconnect the lower oxygen sensor wire harness connector (2).
    G00594615Courtesy of CHRYSLER GROUP, LLC

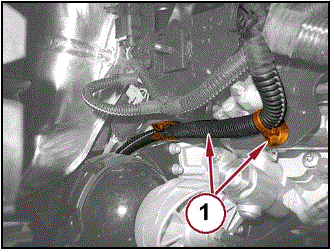

  20. Release the wiring from the retaining clips on the bracket (1).
    G00594616Courtesy of CHRYSLER GROUP, LLC

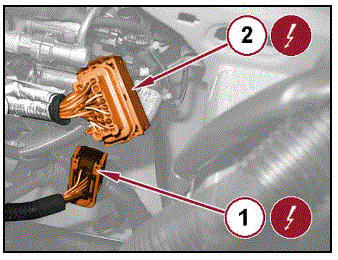

  21. Disconnect the gear selection/engagement control activation unit solenoid valve wire harness connector (1).
  22. Disconnect the gear engagement/release control activation unit sensor wire harness connector (2).
    G00594617Courtesy of CHRYSLER GROUP, LLC

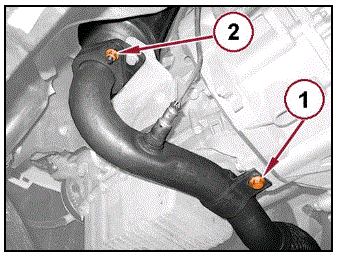

  23. Remove the exhaust pipe support bracket bolt (1) from the engine oil pan.
  24. Remove the nuts (2) and remove the exhaust pipe from the catalytic converter and the front exhaust silencer.
  25. Remove the gasket.
    G00594618Courtesy of CHRYSLER GROUP, LLC

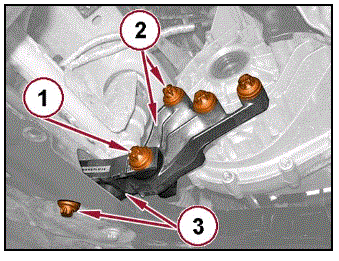

  26. Position a suitable hydraulic lift underneath the gearbox unit.
  27. Remove the rear isolator to transmission bracket bolt (1).
  28. Remove the bolts and the transmission bracket (2).
  29. Remove the bolt and the rear isolator (3) from the front crossmember.
    G00594619Courtesy of CHRYSLER GROUP, LLC

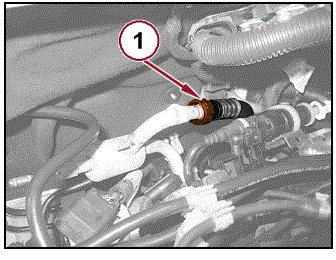

  30. Disconnect the front coolant return pipe quick coupling (1) from the evaporator.
    GC0208311Courtesy of CHRYSLER GROUP, LLC
  31. Disconnect the front fuel vapor pipe quick coupling (1).
  32. Disconnect the fuel manifold supply pipe quick coupling (2).
  33. Open the clips (3) retaining the pipes previously disconnected.
    G00594620Courtesy of CHRYSLER GROUP, LLC

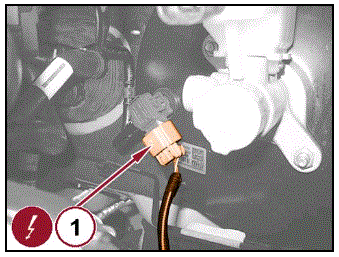

  34. Disconnect the brake servo vacuum sensor wire harness connector (1).
    GC0208309Courtesy of CHRYSLER GROUP, LLC
  35. Open the retaining clip (1a) and remove the brake servo vacuum sensor (1b).
    G00594621Courtesy of CHRYSLER GROUP, LLC

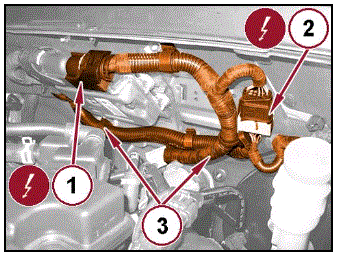

  36. Disconnect the injection control unit wire harness connector (1).
  37. Disconnect the engine wire harness in-line connector (2).
  38. Open the retaining clips (3) and release the wiring.

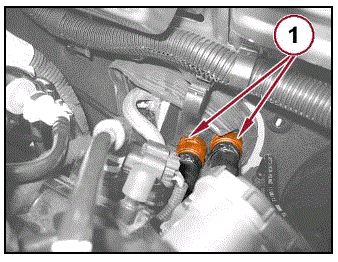

    G00594622Courtesy of CHRYSLER GROUP, LLC
  39. Disconnect the quick couplings (1) and remove the supply and return hoses from the heater core.
    G00594623Courtesy of CHRYSLER GROUP, LLC

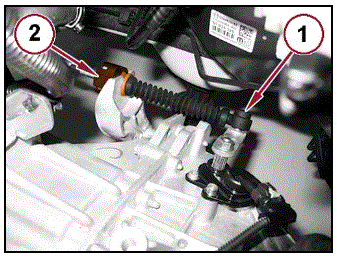

  40. Disconnect the "Park" engagement cable from the control lever (1).
  41. Move back the sliding clip (2) and release the "Park" engagement cable from the reaction bracket.
    G00594624Courtesy of CHRYSLER GROUP, LLC

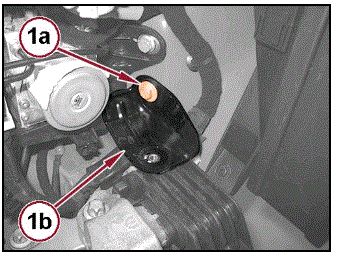

  42. Remove the bolt (1a) and the engine mount bracket (1b).
    G00594625Courtesy of CHRYSLER GROUP, LLC

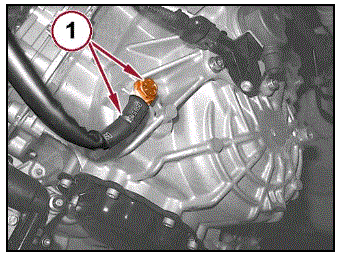

  43. Remove the bolt (1) and the battery ground cable.
    G00594626Courtesy of CHRYSLER GROUP, LLC

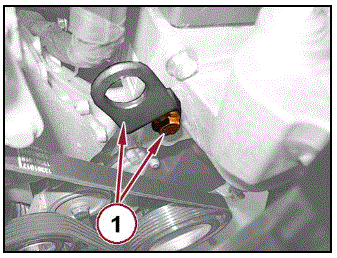

  44. Install a lifting bracket under the right engine mount bolt (1).
    G00594627Courtesy of CHRYSLER GROUP, LLC

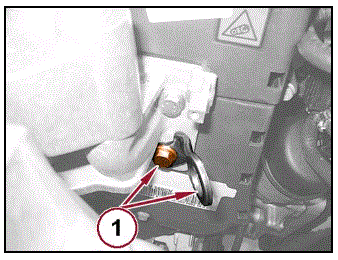

  45. Install a lifting bracket under the right engine mount bolt (1).
    G00594628Courtesy of CHRYSLER GROUP, LLC

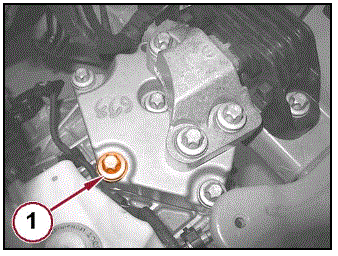

  46. Install a lifting bracket under the left transmission bracket bolt (1).
    G00594629Courtesy of CHRYSLER GROUP, LLC

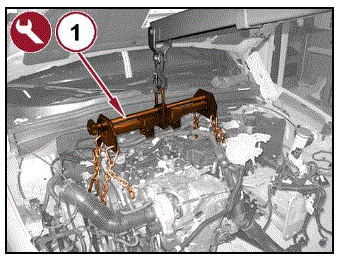

  47. Support the power unit using a hydraulic hoist and the 1871001700 load-leveling lifting sling (1) connected to the engine lifting brackets.
    GC0208299Courtesy of CHRYSLER GROUP, LLC
  48. Remove the bolts (1a), (1b) and the left engine mount isolator (1c).

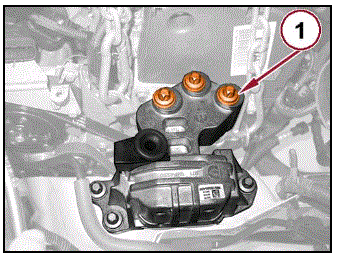

    G00594630Courtesy of CHRYSLER GROUP, LLC
  49. Remove the bolts (1) from the right engine mount isolator.
  50. Remove the powertrain from the engine compartment and position it on a suitable platform.
