Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY, REMOVAL AND INSTALLATION .
    GC0189330Courtesy of CHRYSLER GROUP, LLC

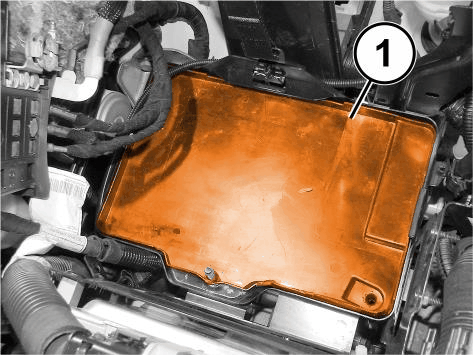

  2. Remove the battery tray bottom cover (1).
    GC0189131Courtesy of CHRYSLER GROUP, LLC

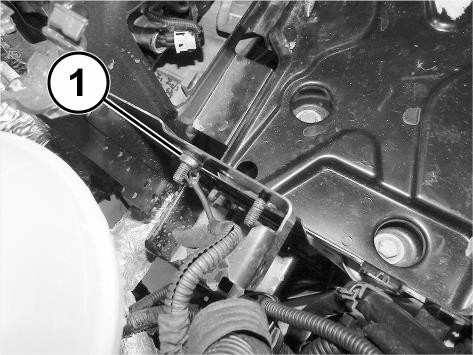

  3. Remove the nut (1) and remove ground wire from battery tray.
    GC0190041Courtesy of CHRYSLER GROUP, LLC

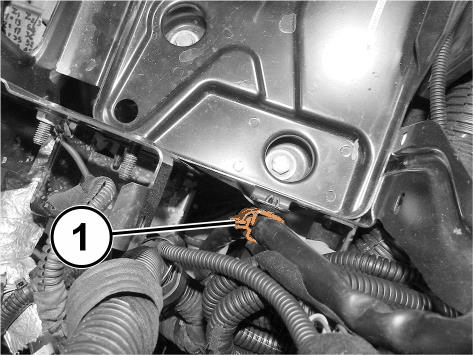

  4. Release the fastening clip (1) and disconnect the wire harnesses from the battery tray.
    GC0190336Courtesy of CHRYSLER GROUP, LLC

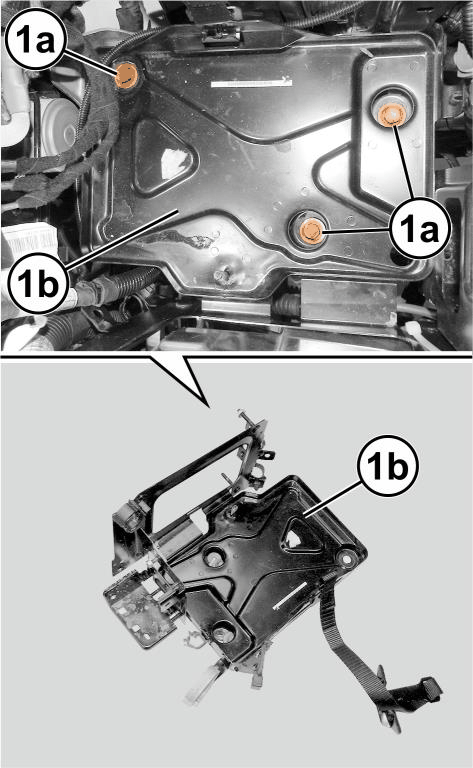

  5. Remove the bolts (1a) from the battery tray (1b).
  6. Remove the battery tray (1b) from the vehicle.
