Removal And Installation: Removal

  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL  .

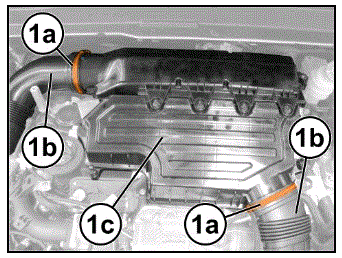

    G00594708Courtesy of CHRYSLER GROUP, LLC
  2. Use the (special tool #10288, Pliers, Hose Clamp) to loosen the band clamp (1a) and remove the clean air hose (1b) from the air cleaner body (1c).
  3. Loosen the band clamp (1a) and remove the intake air tube (1b) from the air cleaner body (1c).
    GC0191663Courtesy of CHRYSLER GROUP, LLC
  4. Disengage the upstream O2 sensor wire harness (1b) from the retaining clip (1a).

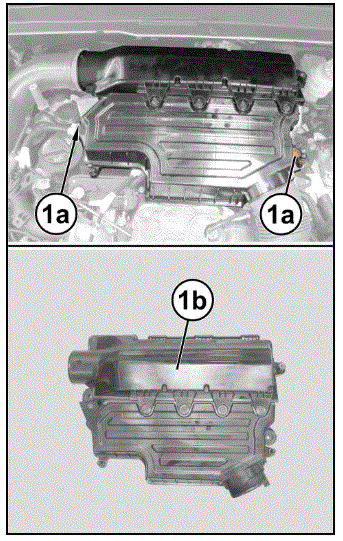

    G00594709Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two bolts (1a) from the air cleaner body (1b).
