Body - Interior/Exterior: Interior: Headliner: Removal

Disconnect and isolate the negative battery cable.
Remove the visors. Refer to VISOR, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Cut the washer fluid hose midway on the A-pillar. A splice will need to be installed during installation.
NOTE:
Have a rag and container ready to catch any washer fluid.

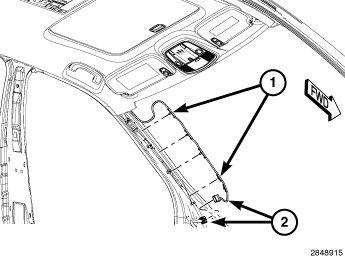

Disconnect the front electrical connector (2) and separate the wire harness (1) from the A-pillar.
Remove the B-pillar trim panels. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
Remove the C-pillar trim panels. Refer to PANEL, C-PILLAR TRIM, REMOVAL .
Remove the D-pillar trim panels. Refer to PANEL, D-PILLAR TRIM, REMOVAL .
Remove the D-pillar trim extensions.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the rear electrical connectors (1).
Disconnect the washer fluid hose at the rear of headliner.
Remove the two rear push pin fasteners (2).

Courtesy of CHRYSLER GROUP, LLC
For vehicles with a sunroof, separate the hook and loop fasteners (2) around the sunroof opening.
CAUTION:
Be careful not to crease the headliner.
With the help of an assistant, remove the headliner through the liftgate opening.
