Bin, Instrument Panel: Removal

  1. Remove the center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
  2. Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL .

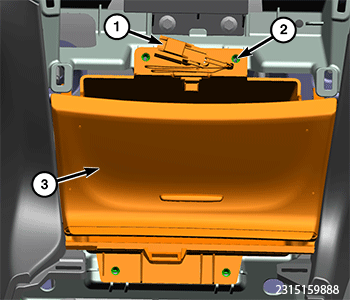

    GC0184516Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (2).
  4. Disconnect the electrical connectors (1).
  5. Remove the storage bin (3) and separate the wire harness retainers, if equipped.
