Engine Block: Crankshaft: Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Remove the engine. Refer to REMOVAL .
Secure the engine to a suitable engine stand.
Remove the vibration damper (1). Refer to DAMPER, VIBRATION, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the rear oil seal retainer. Refer to RETAINER, CRANKSHAFT REAR OIL SEAL, REMOVAL .
Remove the oil pan. Refer to PAN, OIL, REMOVAL .
Remove the timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the oil pump (1). Refer to PUMP, ENGINE OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the timing chain (5) and sprockets (1, 3). Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not use a number stamp or a punch to mark connecting rods or caps, as damage to connecting rods could occur.

NOTE:
Connecting rods and bearing caps are not interchangeable and should be marked before removal to ensure correct reassembly.
Mark the connecting rod and bearing cap positions using a permanent ink marker or scribe tool.
Remove the rod bearing caps and bearings.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not use a number stamp or a punch to mark main bearing caps as damage to bearing caps or bearings could occur.

NOTE:
Main bearing caps are not interchangeable and should be marked before removal to ensure correct reassembly.

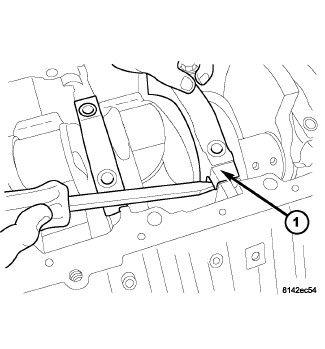

Mark the main bearing caps (1) using a permanent ink marker or scribe tool.

Courtesy of CHRYSLER GROUP, LLC
Remove the main bearing cap bolts.
Remove the main bearing cap crossbolts.
Remove main bearing caps (1) and bearings one at a time.

Courtesy of CHRYSLER GROUP, LLC

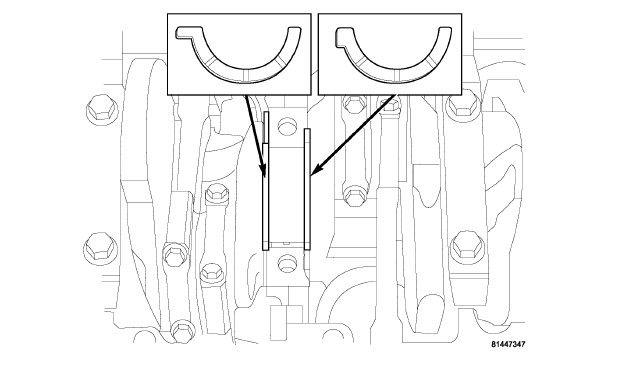

Remove the thrust washers.
Remove the crankshaft out of the engine block.
