Damper, Vibration: Removal

WARNING: This page is about a different variant/trim than selected.
GC0144403Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector at the Intake Air Temperature (IAT) sensor (1).
  3. Loosen the clean air hose clamp at the air cleaner housing (2).
  4. Remove the resonator retaining bolt (3).
  5. Loosen the resonator hose clamp at the throttle body (4) and remove the resonator.
    GC0145666Courtesy of CHRYSLER GROUP, LLC
  6. Drain the cooling system. Refer to STANDARD PROCEDURE .
  7. Remove the upper radiator hose clamp (1) at the thermostat housing.
  8. Remove the upper radiator hose retainer (2) at the fan shroud and position the radiator hose aside.
    GC0144483Courtesy of CHRYSLER GROUP, LLC
  9. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .

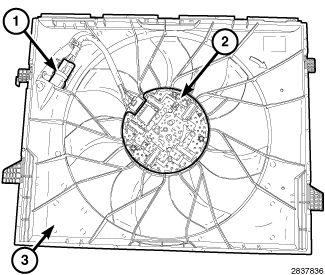

    GC0145660Courtesy of CHRYSLER GROUP, LLC
  10. Remove the cooling fan module. Refer to FAN, COOLING, REMOVAL .
    GC0132222Courtesy of CHRYSLER GROUP, LLC
  11. Remove the crankshaft damper bolt.
    NOTE:

    When installing the puller tool, ensure the bolts are fully threaded through the entire crankshaft damper.

  12. Install puller tool (2) and remove the crankshaft damper (1).
