Right Bank

WARNING: This page is about a different variant/trim than selected.
GC0146433Courtesy of CHRYSLER GROUP, LLC
  1. Clean the cylinder head, exhaust manifold and turbocharger sealing surfaces. Refer to ENGINE GASKET SURFACE PREPARATION .
  2. Install a NEW  exhaust manifold gaskets (2 and 4) to turbocharger (1) and the cylinder head (3).
  3. Install the exhaust manifold (5) and the retaining nuts (6) finger tight.
    Fig 1: Right Bank Exhaust Manifold Tightening Sequence
    GC0146646Courtesy of CHRYSLER GROUP, LLC
  4. Using the tightening sequence shown in the illustration tighten nuts to:
    • Tighten the nuts to 15 N.m (11 ft. lbs.).
    • Tighten the nuts to 40 N.m (30 ft. lbs.).
  5. Install the exhaust pressure sensor tube. Refer to SENSOR, EXHAUST PRESSURE, INSTALLATION .

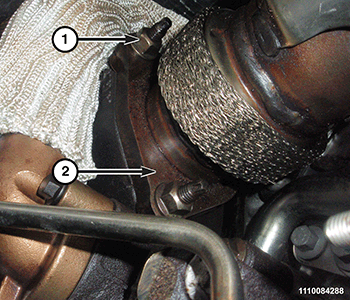

    GC0173462Courtesy of CHRYSLER GROUP, LLC
  6. Using a NEW  gasket, install the Diesel Particulate Filter (DPF) elbow (2) and tighten the nuts (1) to 32 N.m (24 ft. lbs.).
  7. Install the EGR cooler and manifold assembly. Refer to COOLER, EXHAUST GAS RECIRCULATION (EGR), INSTALLATION .
  8. Install the generator and mounting bracket. Refer to GENERATOR, INSTALLATION .
    GC0146791Courtesy of CHRYSLER GROUP, LLC
  9. Install the right exhaust manifold heat shield (2) and tighten the bolts (1) to 15 N.m (11 ft. lbs.).
  10. Using a NEW  O-ring seal, install the oil dipstick tube and tighten the bolts to 11 N.m (8 ft. lbs.).
  11. Install the engine in the vehicle. Refer to INSTALLATION .
