Cooler, Exhaust Gas RECIRCULATION (EGR): Installation

Courtesy of CHRYSLER GROUP, LLC

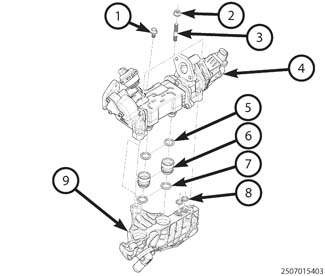

1. Clean the O-ring sealing surface.
2. Install NEW  O-ring seals (8) onto the EGR cooler and mounting bracket (9).
3. Lubricate and install the NEW  lower O-ring seals (7) onto spacers (6) and install the spacers into EGR cooler mounting bracket (9).
4. Lubricate and install the NEW  upper O-ring seals (5) onto EGR cooler (4).
5. Install the EGR and cooler assembly (4).
   • Tighten the bolt (1) to 25 N.m (18 ft. lbs.).
   • Tighten the nuts (2) to 25 N.m (18 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the bolt (1) at the rear EGR cooler bypass valve support bracket (2) and tighten to 25 N.m (18 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

7. Using a NEW  gasket, install the turbocharger-to-EGR cooler tube (2). Tighten the bolts (1) to 25 N.m (18 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

8. Connect the EGR cooler vacuum bypass hose (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Connect the EGR valve wire harness connector (1).
10. Install the EGR tube. Refer to TUBE, EXHAUST GAS RECIRCULATION (EGR), INSTALLATION .
11. Fill the cooling system. Refer to STANDARD PROCEDURE .
12. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
13. Install the front skid plate. Refer to FRONT SKID PLATE INSTALLATION .
14. Connect the negative battery cable.
