Engine Block: Crankshaft: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine from the vehicle. Refer to REMOVAL .
Mount the engine to a suitable engine stand.
Remove both of the cylinder heads. Refer to CYLINDER HEAD, REMOVAL .
Remove the flywheel. Refer to FLEXPLATE, REMOVAL .
Check the crankshaft end play. Refer to STANDARD PROCEDURE .
Remove the oil pump. Refer to PUMP, ENGINE OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) and the windage tray (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) and the Crankshaft Position (CKP) sensor (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the (special tool #VM.10339, Tool, Crankshaft Timing) (1).

Courtesy of CHRYSLER GROUP, LLC

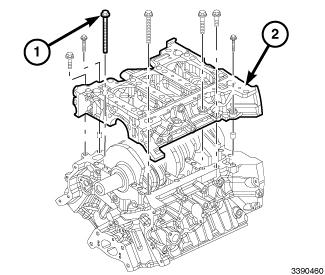

Remove the bolts (1) securing the bed plate (2) to engine block.

Courtesy of CHRYSLER GROUP, LLC

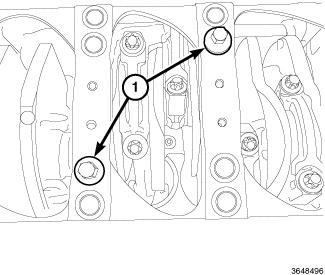

Install two bed plate bolts (1) finger tight.

Courtesy of CHRYSLER GROUP, LLC

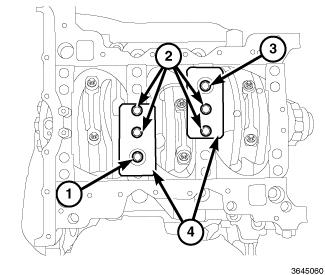

Install the (special tool #2014200091, Remover, Engine Bed Plate) (4) and securely tighten bolts (2).
Loosen the bolts (1 and 3) in half turn increments until seal is broken.
Removal the bolts (2) and the (special tool #2014200091, Remover, Engine Bed Plate) (4).
Remove the bolts (1 and 3) and the bed plate.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not allow the connecting rods to nick or score the crankshaft during assembly or disassembly.

CAUTION:
Do not allow the connecting rod to bend or dent the oil jet. Serious engine damage may result from a misaligned oil jet.
Remove the bolts (1) and the connecting rods bearing cap (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the crankshaft (2).
Remove the thrust washer (3).
Remove the crankshaft bearings (1).
