Motor, Window Regulator: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0145458Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the door interior trim panel (2). For front panel refer to PANEL, DOOR TRIM, REMOVAL . For rear panel refer to PANEL, REAR DOOR TRIM, REMOVAL .
    GC0147660Courtesy of CHRYSLER GROUP, LLC

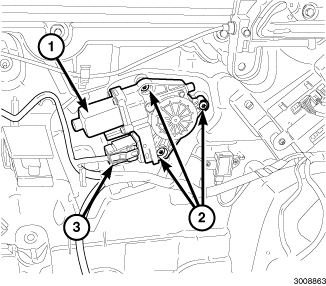

  3. Disconnect the power window motor electrical connector (3).
  4. Remove the three fasteners (2) that secure the power window motor and gear assembly (1) to the carrier plate and remove the motor and gear assembly.
