Cover(S), Engine Timing: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159742Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover (1).
  3. Drain the cooling system. Refer to STANDARD PROCEDURE .
  4. Drain the engine oil.
    GC0158461Courtesy of CHRYSLER GROUP, LLC
  5. Remove the cowl panel (1). Refer to COVER, COWL PANEL, REMOVAL .
  6. Remove the cylinder head covers. Refer to COVER(S), CYLINDER HEAD, REMOVAL .
  7. Remove the cross under pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL .
    GC0158464Courtesy of CHRYSLER GROUP, LLC
  8. Remove the oil pan (2).
  9. Lower the vehicle.
    GC0158460Courtesy of CHRYSLER GROUP, LLC

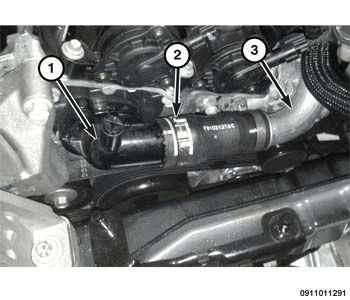

  10. Remove the heater core supply hose (1) from the coolant outlet housing (2).
  11. Remove the upper radiator hose (2) with the cooling pipe (3) and thermostat housing (1).
    GC0160168Courtesy of CHRYSLER GROUP, LLC

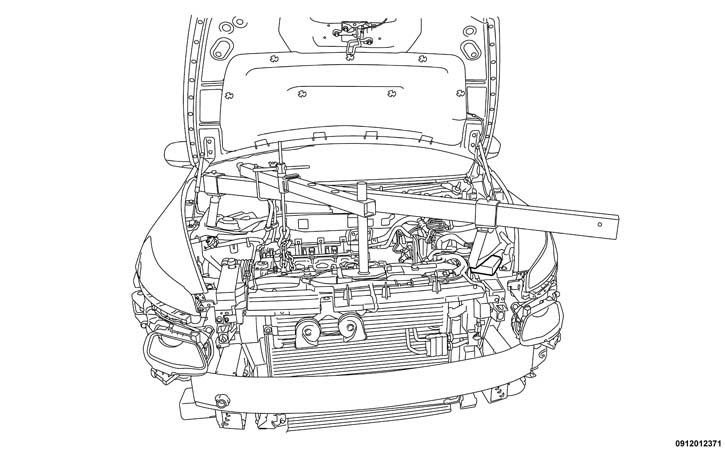

  12. Remove the left side hood stabilizer support brace.
  13. Support the engine assembly using the (special tool #8534C, Fixture, Driveline Support).
    GC0159643Courtesy of CHRYSLER GROUP, LLC

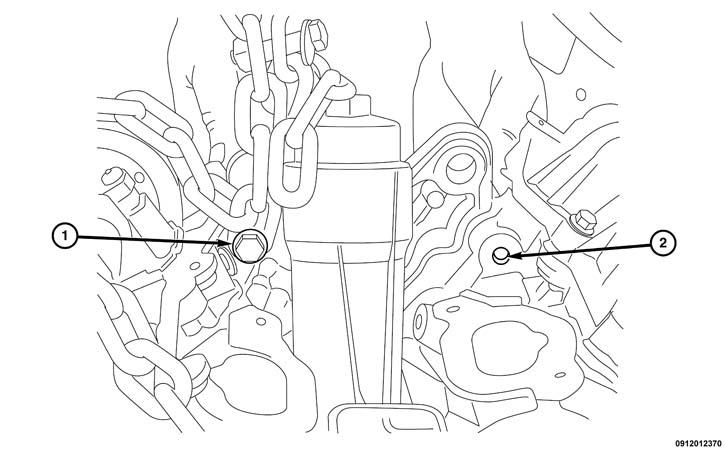

  14. Support the engine at the cylinder head.
  15. Partially raise the vehicle.
    GC0158453Courtesy of CHRYSLER GROUP, LLC
  16. Remove the heater core return hose (1) from the water pump housing.
  17. Remove the lower radiator hose (2) from the water pump housing.
    GC0158465Courtesy of CHRYSLER GROUP, LLC
  18. Remove the right side engine mount. Refer to INSULATOR, ENGINE MOUNT, RIGHT .
  19. Remove the accessory drive belt (4). Refer to BELT, SERPENTINE, REMOVAL .
    GC0158467Courtesy of CHRYSLER GROUP, LLC
  20. Remove the accessory drive belt tensioner (2).
    GC0158448Courtesy of CHRYSLER GROUP, LLC
  21. Remove the accessory idler pulleys (1, 5).
    GC0144221Courtesy of CHRYSLER GROUP, LLC
  22. Remove the crankshaft vibration damper (1). Refer to DAMPER, VIBRATION, REMOVAL .
    GC0160029Courtesy of CHRYSLER GROUP, LLC

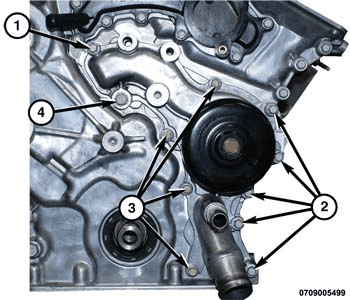

  23. Remove the water pump M6 bolts (2, 3).
  24. Remove the water pump M8 bolt (4).
  25. Remove the water pump from the vehicle.
    GC0158458Courtesy of CHRYSLER GROUP, LLC

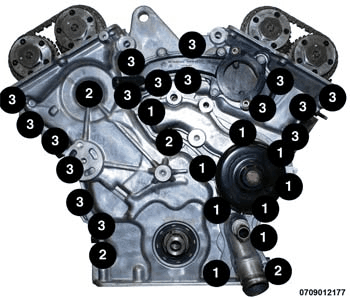

  26. Remove the timing cover M8 bolts (2).
  27. Remove the timing cover M6 bolts (3).
    GC0144269Courtesy of CHRYSLER GROUP, LLC
  28. Using the seven indicated pry points, carefully remove the timing cover.
    GC0144267Courtesy of CHRYSLER GROUP, LLC
  29. If required, remove the remaining four M6 bolts (2) and the coolant outlet housing (1) from the engine timing cover.
    CAUTION:

    Do not use oil based liquids, wire brushes, abrasive wheels or metal scrapers to clean the engine gasket surfaces. Use only isopropyl (rubbing) alcohol, along with plastic or wooden scrapers. Improper gasket surface preparation may result in engine fluid leakage.

    GC0144268Courtesy of CHRYSLER GROUP, LLC
  30. Remove all residual sealant from the timing chain cover, cylinder head and engine block mating surfaces. Refer to ENGINE GASKET SURFACE PREPARATION  .
    GC0144266Courtesy of CHRYSLER GROUP, LLC
  31. Remove and discard the coolant outlet housing gasket (1) and the water pump gasket (2).
