Insulator, Engine Mount, Right: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

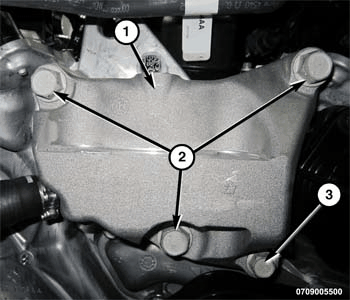

- If removed, install the right engine mount bracket (1) and tighten the bolts (2, 3) to the proper specifications. Refer to TORQUE SPECIFICATIONS
.
- Position the right engine mount isolator (1):
- Align the engine mount so that it is flush against the frame rail.
- Hand tighten the center engine mount to engine bracket bolt (3).
- Hand tighten the outer engine mount to engine bracket bolts (2).
- Hand start the engine mount to strut tower (5).
- Tighten the mount to strut tower bolt to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Tighten the engine mount to frame rail bolts (4) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Tighten mount to mount bracket bolts (2, 3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Remove the floor jack.
- Raise the vehicle.
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
- Lower the vehicle.
- Install the overflow bottle (3). Tighten the bolts (4) to the proper specifications. Refer to TORQUE SPECIFICATIONS 3.2L
.

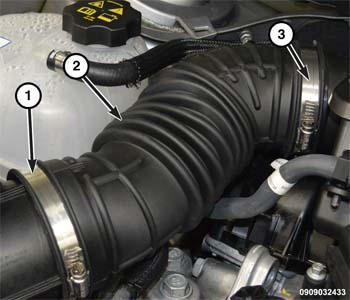

- Install the clean air hose (2) to the air resonator. Hand tighten the clamp (3).
- Install the coolant return line retainer to the clean air hose.
- Install the air filter body. Refer to BODY, AIR CLEANER, REMOVAL .
