Belly Pan: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

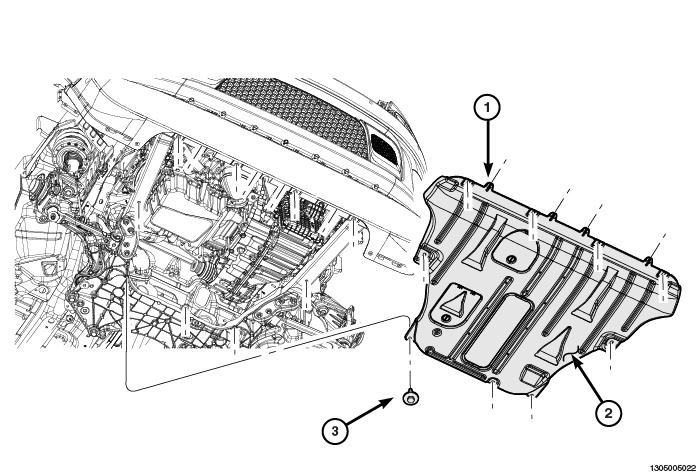

- Insert the tabs (1) into the slots on the fascia and Position the engine belly pan (1) to the underside of the vehicle.
- Install the nine fasteners (3) securing the engine belly pan (2). Tighten the fasteners securely.
- Remove the support and lower the vehicle.
