Body, Air Cleaner: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

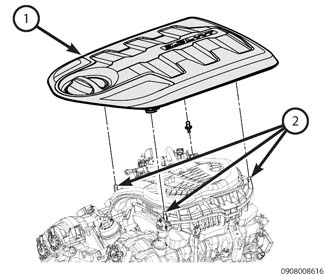

GC0159742Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine cover (1).
    GC0159841Courtesy of CHRYSLER GROUP, LLC
  2. Separate the breather hose (2) from the air filter body cover (1).
  3. Loosen the clamp and remove the hose from the air cleaner body (1).

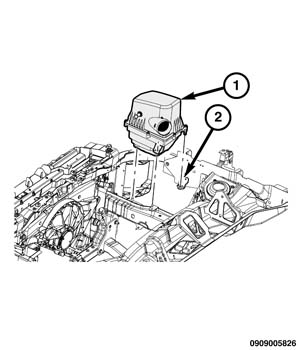

    GC0159990Courtesy of CHRYSLER GROUP, LLC
  4. Pull the air cleaner body (1) straight up to disengage the locating pins from the rubber mount sockets (2).
