Installation - 2.0L, 2.2L, 2.4L

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0155686Courtesy of CHRYSLER GROUP, LLC
  1. Remove the tape or plugs from the suction/discharge line fitting and the compressor port.
  2. Lubricate new seals with clean refrigerant oil and install the new seals on the suction/discharge manifold. Use only the specified seal as it is made of a special material for the refrigerant in the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

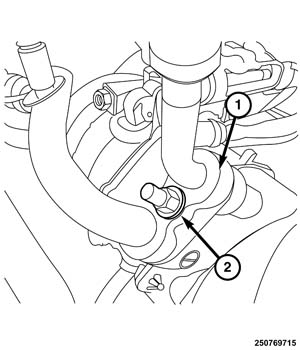

  3. Install the lower A/C suction/discharge manifold (1) to the A/C compressor, then install and tighten the nut (2) to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
    GC0155915Courtesy of CHRYSLER GROUP, LLC
  4. Remove the tape or plugs from the upper suction line fitting.
  5. Lubricate a new seal with clean refrigerant oil and install the new seal on the suction line fitting. Use only the specified seal as it is made of a special material for the refrigerant in the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

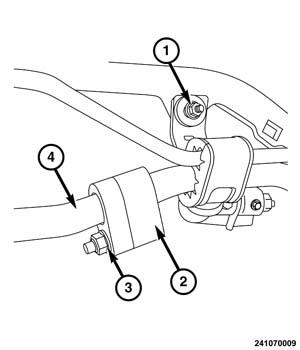

  6. Install the lower A/C lower suction line (4) to the upper A/C suction line (2) and tighten the nut (3) to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
    GC0156339Courtesy of CHRYSLER GROUP, LLC
  7. Remove the tape or plugs from the discharge line fitting.
  8. Lubricate a new seal with clean refrigerant oil and install the new seal on the discharge line fitting. Use only the specified seal as it is made of a special material for the refrigerant in the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

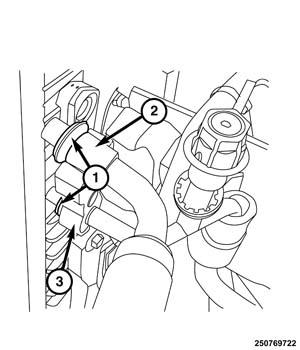

  9. Attach the discharge line (2) to the liquid line manifold (3).
    GC0156036Courtesy of CHRYSLER GROUP, LLC

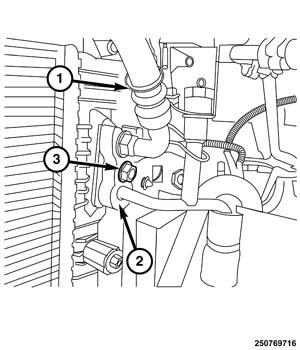

  10. Install the A/C discharge/liquid line manifold (2) to the A/C condenser, then install and tighten the nut (3) to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
  11. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
  12. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  13. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
    CAUTION:

    Do NOT run the engine with a vacuum pump in operation or with a vacuum present within the A/C system. Failure to follow this caution will result in serious A/C compressor damage.

  14. Evacuate the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  15. Adjust the refrigerant oil level. Refer to OIL, REFRIGERANT, STANDARD PROCEDURE .
  16. Charge the A/C system. Refer to PLUMBING, STANDARD PROCEDURE .
