Body, Air Cleaner: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

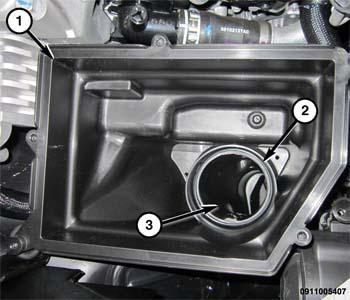

Upper air filter body has been removed for clarity of the installation of the intake tube and seal to the air filter body.
- Lubricate the three rubber mount sockets (2) with Mopar® Rubber Bushing Installation Lube.
- Install the air cleaner housing body.
- Align the intake tube (3) to the air filter body (1) making sure the seal (2) is centered.
- Engage the air inlet tube and install the air cleaner body straight down on the locating pins until the rubber mount sockets are fully seated.
- Install the hose to the air cleaner body and tighten the clamp to 5 N.m (44 in. lbs.).

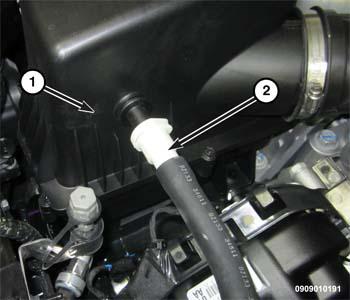

- Connect the breather hose (2) to the air cleaner body cover (1).
- Install the engine cover.
