Manifold, Intake: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159679Courtesy of CHRYSLER GROUP, LLC
  1. Remove the engine cover (1) from the ball studs (2).
  2. Release the fuel pressure. Refer to STANDARD PROCEDURE .
  3. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  4. Remove the cowl plenum extension and cowl plenum panel. Refer to COVER, COWL PANEL, REMOVAL .
  5. Remove the air cleaner body. Refer to REMOVAL  .
  6. Remove the air cleaner resonator (3). .

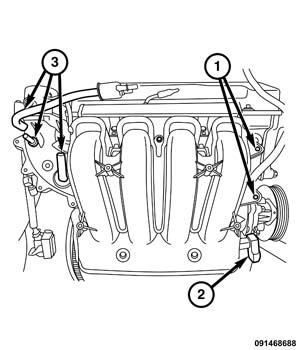

    GC0156110Courtesy of CHRYSLER GROUP, LLC
  7. Unlock and disconnect the MAP sensor wire harness connector (2).
  8. Disengage the wire harness from the manifold eyelets (1).

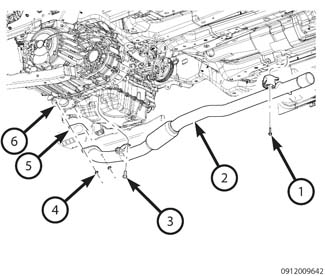

    GC0159295Courtesy of CHRYSLER GROUP, LLC
  9. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  10. Remove the front and rear skid plates if equipped.
  11. Remove the belly pan if equipped.
  12. Remove the flange nuts (4) and flange gasket (5). Discard the gasket.
  13. Remove the pipe support bolt (3) and reposition the cross-under pipe (2).
    GC0156353Courtesy of CHRYSLER GROUP, LLC
  14. Remove the intake manifold support bracket nuts (1).
  15. Remove the intake manifold support bracket bolt (2).
  16. Remove the intake manifold support bracket (3).
  17. Lower the vehicle.
    GC0155590Courtesy of CHRYSLER GROUP, LLC
  18. Remove the throttle body support bracket nut (1).
  19. Remove the throttle body support bracket bolt (3).
  20. Remove the throttle body support bracket (2).

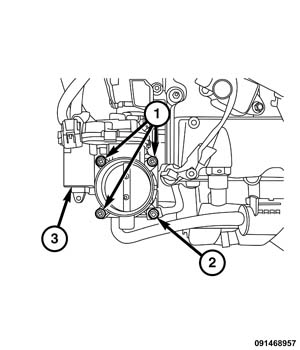

    GC0155543Courtesy of CHRYSLER GROUP, LLC
  21. Remove the throttle body fasteners (1 & 2) and remove the throttle body (3).

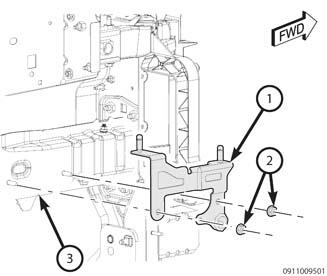

    GC0159988Courtesy of CHRYSLER GROUP, LLC
  22. Remove the air cleaner body bracket nuts (2) from the right frame rail (3) and remove the bracket (1).

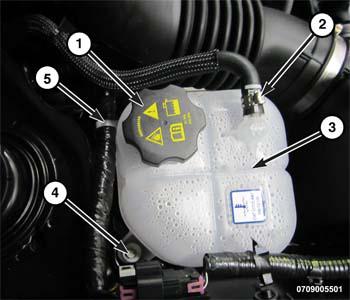

    GC0159480Courtesy of CHRYSLER GROUP, LLC
  23. Remove the bolts (4) and reposition the pressurized coolant bottle (3).

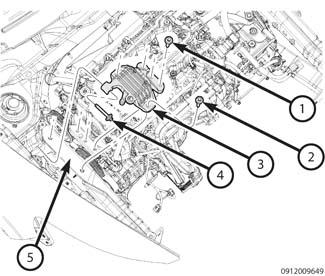

    GC0160072Courtesy of CHRYSLER GROUP, LLC
  24. Remove the two right engine mount to frame rail bolts (2).
  25. Remove the right engine mount to strut tower bolt (4).

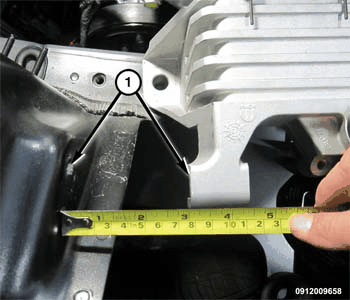

    GC0159727Courtesy of CHRYSLER GROUP, LLC
  26. Move the right side of the engine forward approximately 3 inches (1).
    GC0169971Courtesy of CHRYSLER GROUP, LLC
  27. Disengage the intake manifold wire harness retainers.
  28. Disconnect the purge vapor line (2).
  29. Disconnect the fuel line (1) from the fuel rail. Refer to STANDARD PROCEDURE .
    GC0169994Courtesy of CHRYSLER GROUP, LLC
  30. Cut the injector silencer pad at the score line (1).
  31. Remove the injector silencer pad.

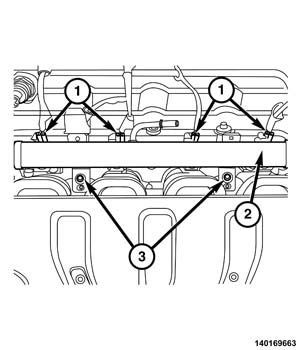

    GC0156429Courtesy of CHRYSLER GROUP, LLC
  32. Unlock and disconnect the fuel injector wire harness connectors (1).
  33. Unlock and disconnect the four VVAA solenoid wire harness connectors.
    GC0155794Courtesy of CHRYSLER GROUP, LLC
  34. Remove the intake manifold silencer cover screws (1) and remove the cover.
    GC0156110Courtesy of CHRYSLER GROUP, LLC
  35. Disconnect the vacuum hoses at the intake manifold (3).
    GC0155603Courtesy of CHRYSLER GROUP, LLC
  36. Remove the intake manifold nuts (1).
  37. Remove the intake manifold bolts (2).
  38. Remove the intake manifold by lifting upward and out of the engine bay.
