Body, Air Cleaner: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

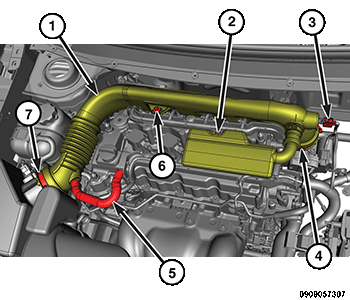

- Loosen the clamp (7) and disengage the clean air hose (1) from the air cleaner body.
 Courtesy of CHRYSLER GROUP, LLC
|

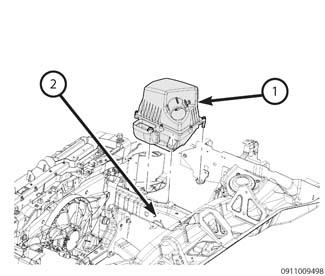

- Lift the air cleaner body (1) straight up off of the locating pins at frame rail and the clean air duct (2).
