Sensor, Oil Pressure: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

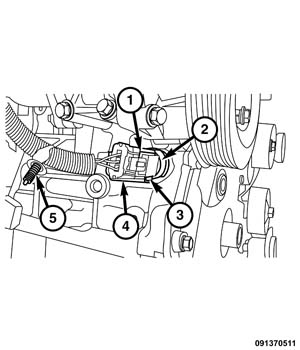

GC0156354Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil pressure sensor (2) into the engine block and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  2. Install and lock the electrical connector (4).
  3. Engage the harness retainer (5) into the engine block.
  4. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  5. Remove the support and lower the vehicle.
  6. Reconnect the negative battery cable.
