Checking Engine Oil Pressure
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Anytime the oil temperature sensor is removed, it should be replaced with a new sensor.

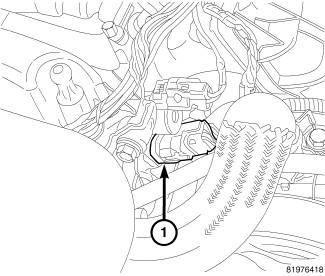

- Disconnect and remove oil temperature sensor (1).CAUTION:
Threads in cylinder head are British Standard Pipe (BSP). Do not install a NPT threaded adapter, this could crack the cylinder block.

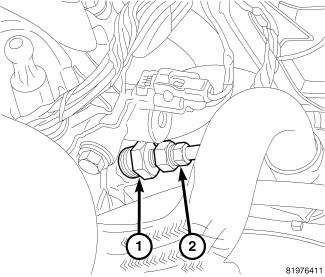

- Install threaded adapter (special tool #9879, Adapter, Oil Pressure Test) (1).
- Install oil pressure gauge (2).

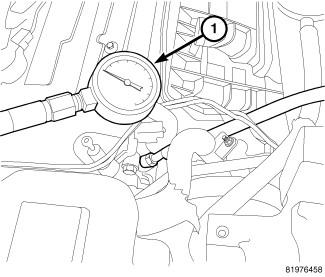

- Start engine and record reading on oil pressure gauge (1).CAUTION:
If oil pressure is 0 at idle, do not perform the 3000 RPM test
- If oil pressure is 0 at idle, shut off engine. Check for pressure relief valve stuck open or a clogged oil pick-up screen.
- Remove oil pan and inspect for debris. Refer to REMOVAL .
- Remove oil pressure relief valve. Refer to VALVE, OIL PRESSURE RELIEF, REMOVAL .
- Inspect oil pressure relief valve if damaged replace. Refer to VALVE, OIL PRESSURE RELIEF, INSPECTION .
- If pressure relief valve is ok, replace balance shaft module assembly. Refer to REMOVAL
.
- After test is complete, remove oil pressure gauge (2) and adapter (special tool #9879, Adapter, Oil Pressure Test) (1).
- Install a new oil pressure temperature sensor (1) and connect electrical connector.
